Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
172 Configuration Manual, 08/2018, C79000-G8976-C267-13
– Multicast/Broadcast Frames
Shows the number of sent multicast and broadcast frames.
– Unicast Frames
Shows the number of sent unicast frames.
– Average Data Rate
Shows the average data rate of the last data frames sent.
6.4.15.5

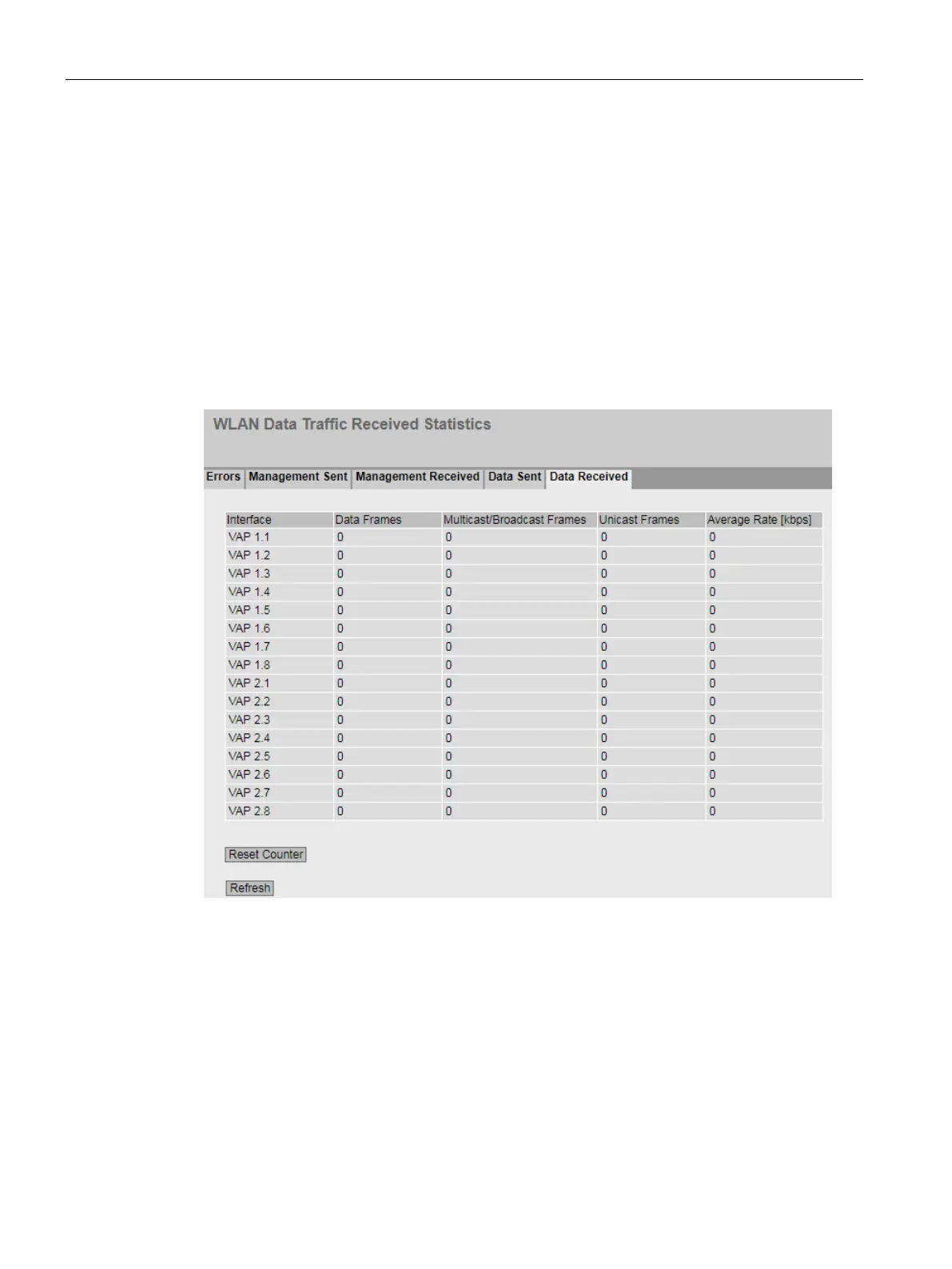

Data Received
The WBM page shows how many frames were received per VAP interface.
