Configuring with Web Based Management
6.8 "Layer 3 (IPv4)" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
352 Configuration Manual, 08/2018, C79000-G8976-C267-13
1. In the "Local Interface IP address" input box, enter the local IP address of the Ethernet
interface.
2. In the "Local Interface Subnet Mask" input box, enter the subnet mask for the local
Ethernet.
3. Enable NAT for the Ethernet interface.
4. Enter the PROFINET device name.
5. Click the "Set Values" button.
Note
This page is only available in client mode.

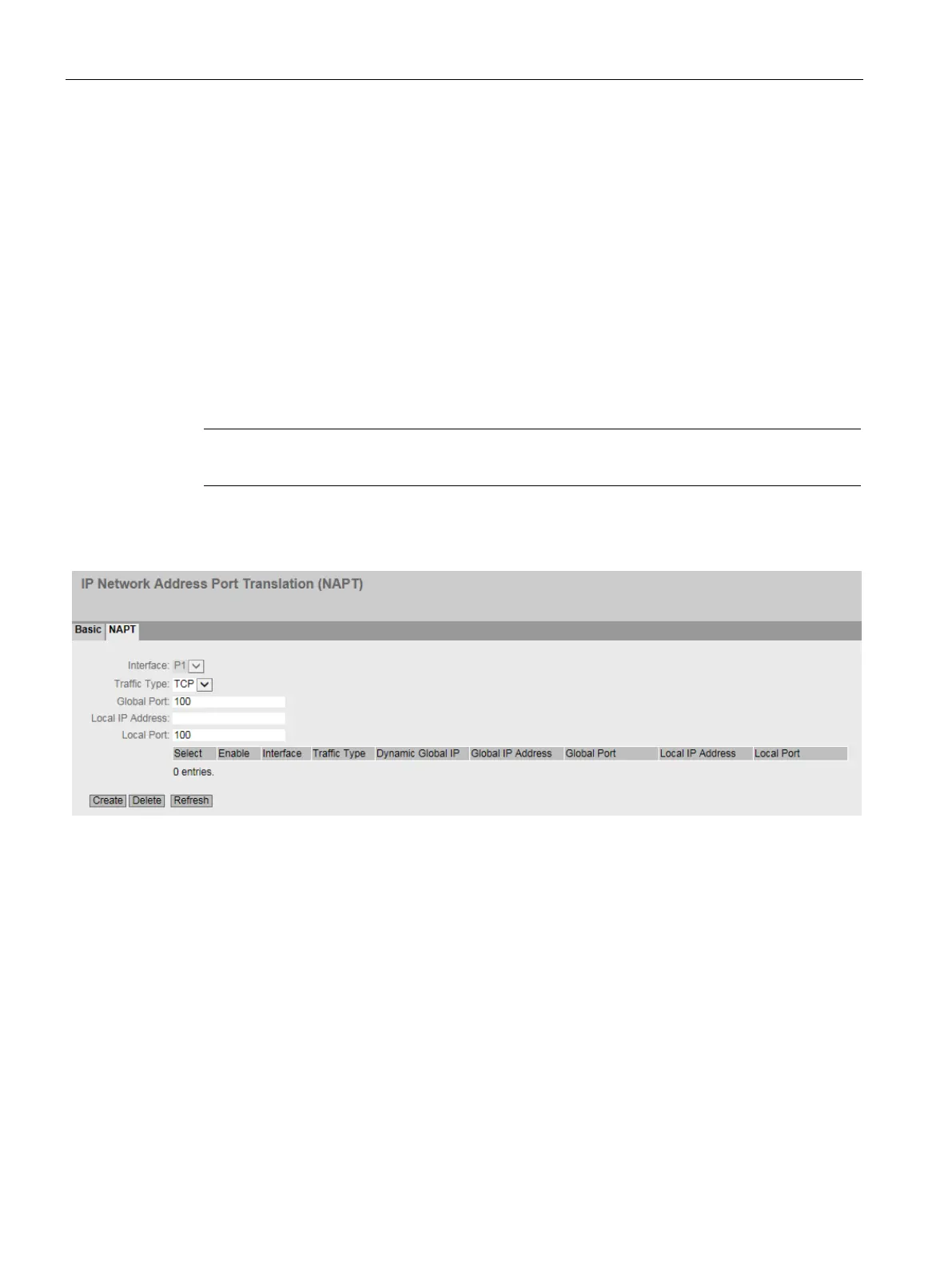

On this WBM page, you define the translation list for communication from the global to the
local network. Per WLAN client (NAT gateway), 60 entries are possible.
The page contains the following boxes:
●
Interface to which the settings relate. Can only be selected if the device has several
interfaces.
●
Specify the protocol for which the address assignment is valid. TCP and UDP frames
must have parameters set separately.
