Description
2.1 Network structures
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
22 Configuration Manual, 08/2018, C79000-G8976-C267-13
Network access with a client or an access point in client mode
The SCALANCE W700 device can be used to integrate wired Ethernet devices (for example
SIMATIC S7 PLC) in a wireless network.

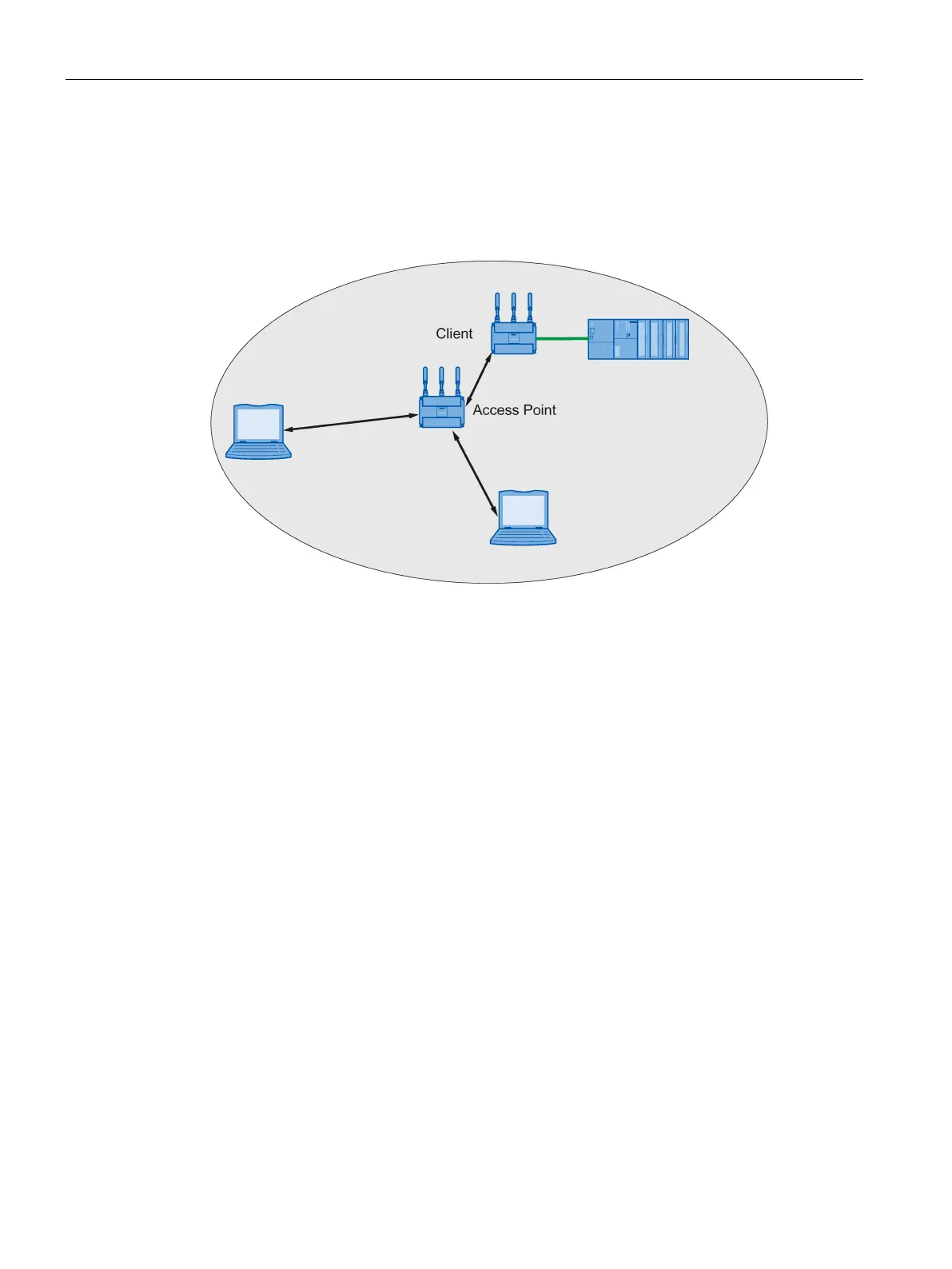

The following graphic shows the connection of a SIMATIC S7 PLC to a wireless LAN.

Siemens SIMATIC NET SCALANCE W780 Series Specifications

General

Brand	Siemens
Model	SIMATIC NET SCALANCE W780 Series
Category	Wireless Access Point
Language	English
