Configuring with the WBM
7.3 The menu items of the WBM
SIMATIC RF650R/RF680R/RF685R
106 Configuration Manual, 03/2018, C79000-G8976-C386-06
Click the "Disable user management" button if you want to disable user management again.
In the "System" menu item, you can update firmware, reset the reader to the factory settings,
change the IP address of the reader, load certificates on the reader and transfer control files
to the PC. This page is divided into 5 areas:
● Firmware update
● Restore
● IP address
● Certificate
● Device description files

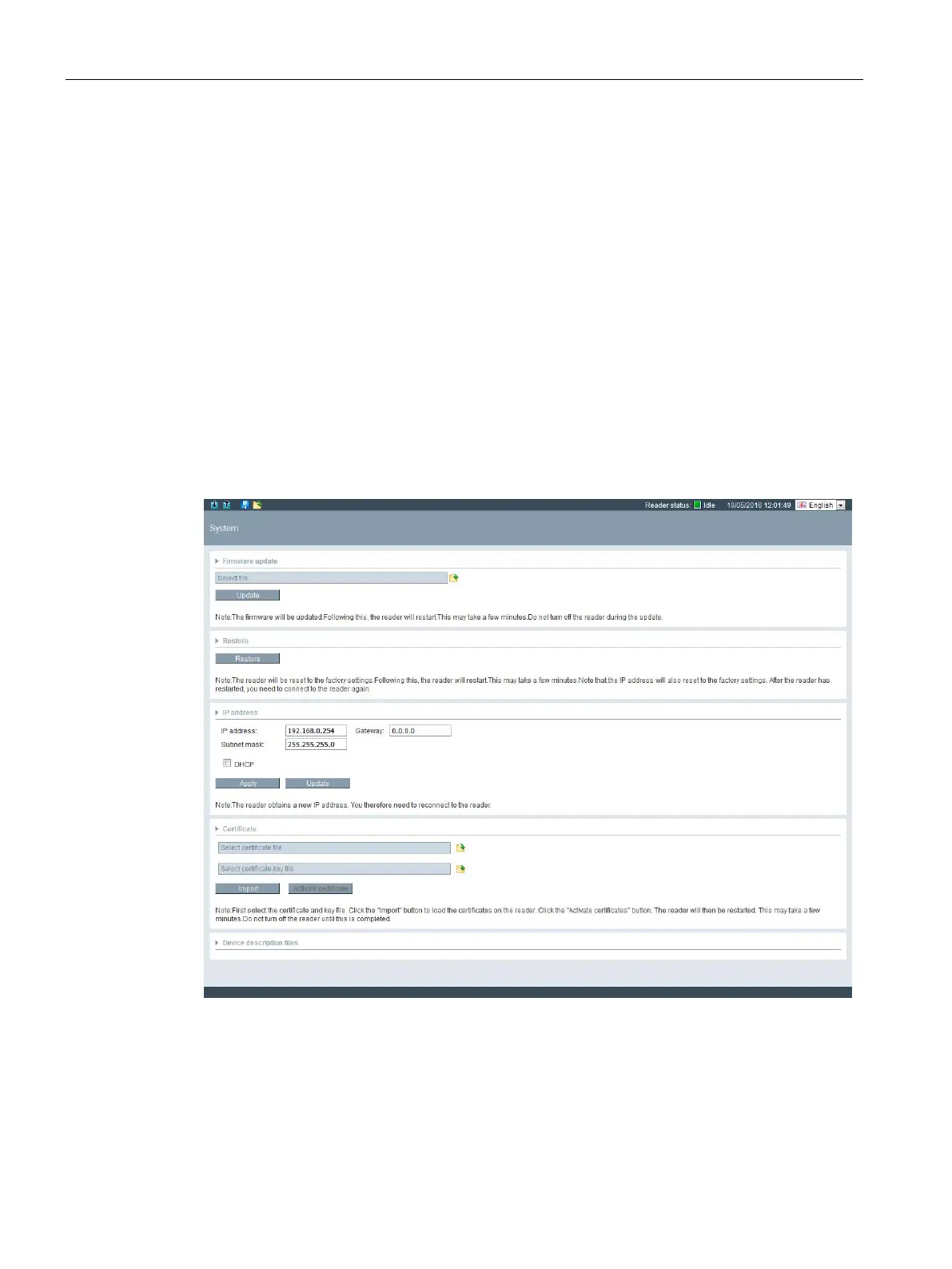

Figure 7-26 The "System" menu item
In the "Firmware update" area, you can update the firmware of the reader. For a detailed
description of firmware updates, refer to the section Firmware update (Page 304).
