Programming via SIMATIC controller
8.5 Programming Ident blocks
SIMATIC RF650R/RF680R/RF685R
Configuration Manual, 03/2018, C79000-G8976-C386-06
135
The "Write_EPC_Mem" block overwrites the EPC memory of the RF600 transponder starting
at address 4. The length of the EPC memory to be overwritten is specified by the
"LEN_DATA" parameter.

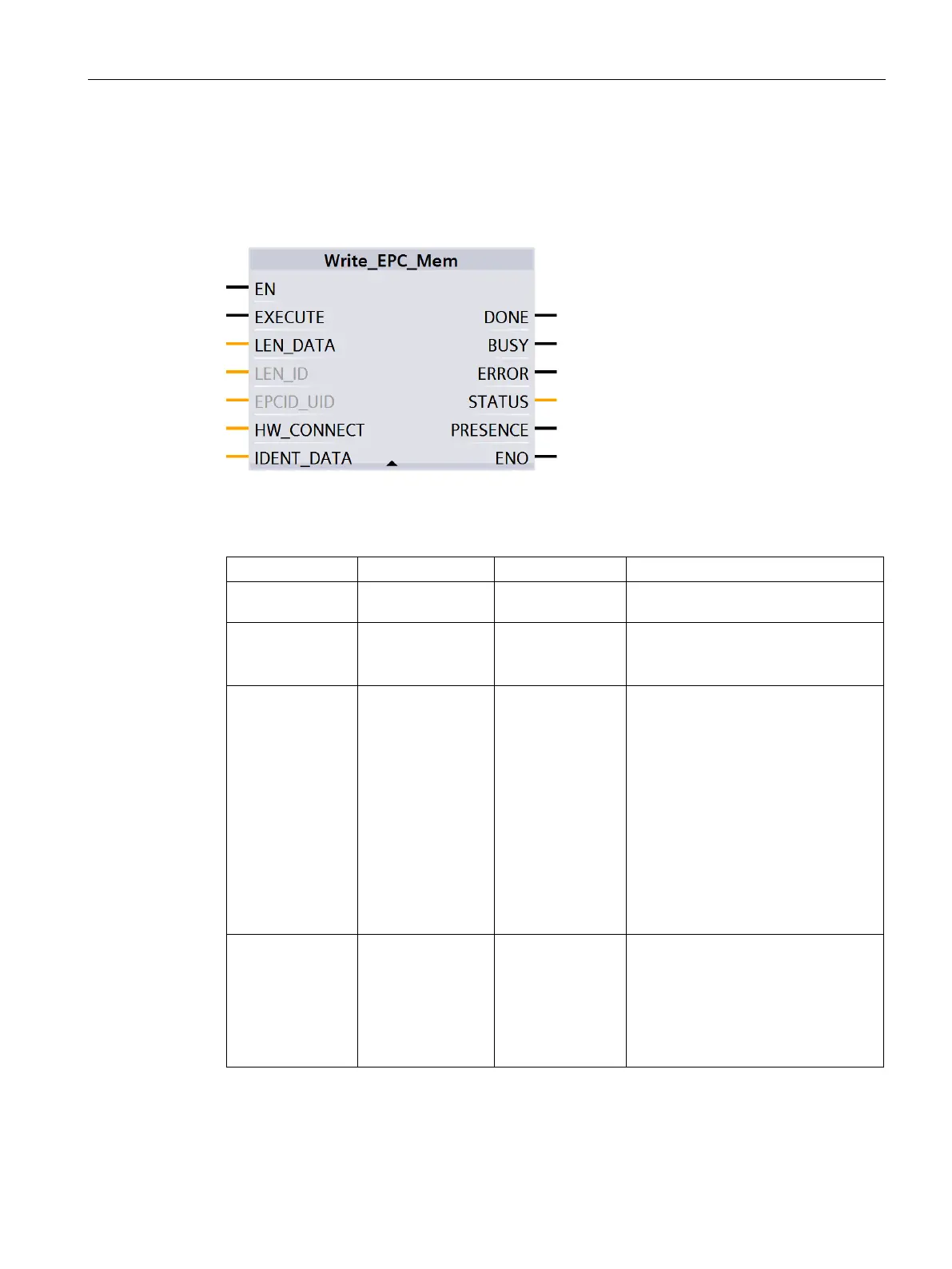

Figure 8-17 "Write_EPC_Mem" block
Table 8- 18 Explanation of the "Write_EPC_Mem" block
LEN_DATA Word W#16#0 Length of the EPC memory to be
overwritten (1 ... 62 bytes)
LEN_ID Byte B#16#0 Length of the EPC-ID/UID
Default value: 0x00 ≙ unspecified
single tag access (RF680R, RF685R)
EPCID_UID Array[1...62] of
Byte
0 Buffer for up to 62 bytes EPC-ID, 8
bytes UID or 4 bytes handle ID.
• 2 - 62-byte EPC-ID is entered at
the start of the buffer (length is set
by "LEN_ID")
• 8-byte UID is entered at the start
of the buffer ("LEN_ID = 8")
• 4-byte handle ID must be entered
in the array element [5]-[8]
("LEN_ID = 8")
Default value: 0x00 ≙ unspecified
single tag access (RF620R, RF630R)
IDENT_DATA Any / Variant 0 Data buffer with the EPC memory data
to be overwritten.
Note:
For Variant, currently only an "Ar-
ray_of_Byte" with a variable length
can be created. For Any, other data
types/UDTs can also be created.
