Configuring with the WBM
7.3 The menu items of the WBM
SIMATIC RF650R/RF680R/RF685R
98 Configuration Manual, 03/2018, C79000-G8976-C386-06
The "Edit transponder" menu item
In the "Edit transponder" menu item, you can edit all the transponders identified from the
read point that are currently located in the antenna field. This page is divided into 7 areas:
● Basic settings
● Identified transponders
● Selected transponder
● Write EPC-ID
● Read/write
● Lock
● Kill

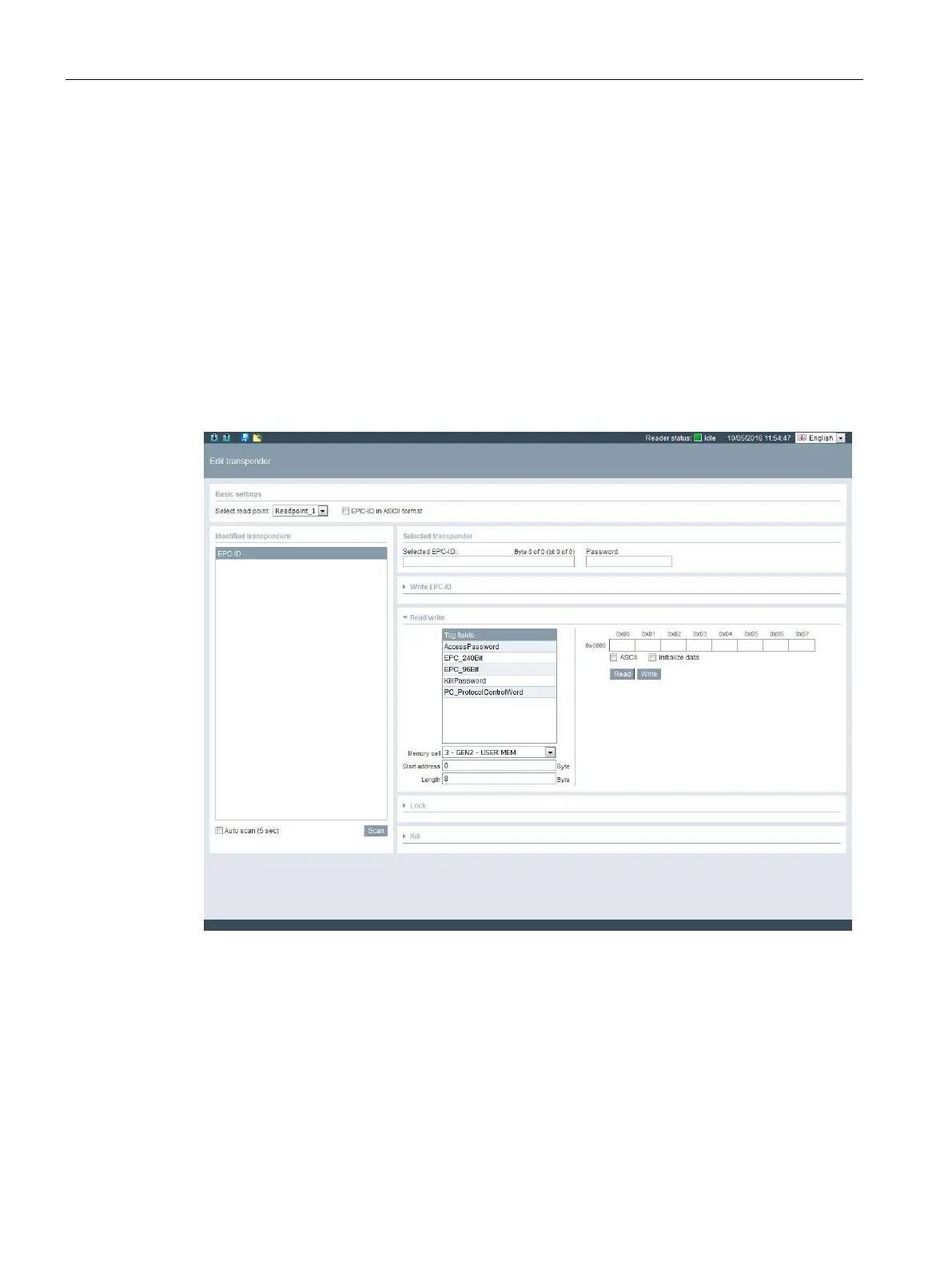

Figure 7-21 The "Edit transponder" menu item
In this area, you can select the read point with which transponders will be processed.
Select the "EPC-ID in ASCII format" check box to display the EPC-IDs of the transponders in
ASCII code.
