9.5 Programming add-on instructions
SIMATIC RF650R/RF680R/RF685R
176 Configuration Manual, 03/2018, C79000-G8976-C386-06
9.5.2.5
Write_EPC_ID
The "Write_EPC_ID" block overwrites the EPC-ID of the RF600 transponder and adapts the
length of the EPC-ID in the memory of the transponder. The new EPC-ID length to be written
is specified with the "LEN_ID_NEW" parameter and the previous EPC-ID is specified using
the "LEN_ID" and "EPCID_UID" parameters.
Make sure that when you execute the block only one transponder is located in the antenna
field. This ensures that the identification when writing the ID is unique. If there is more than
one transponder in the antenna field, a negative response is returned.

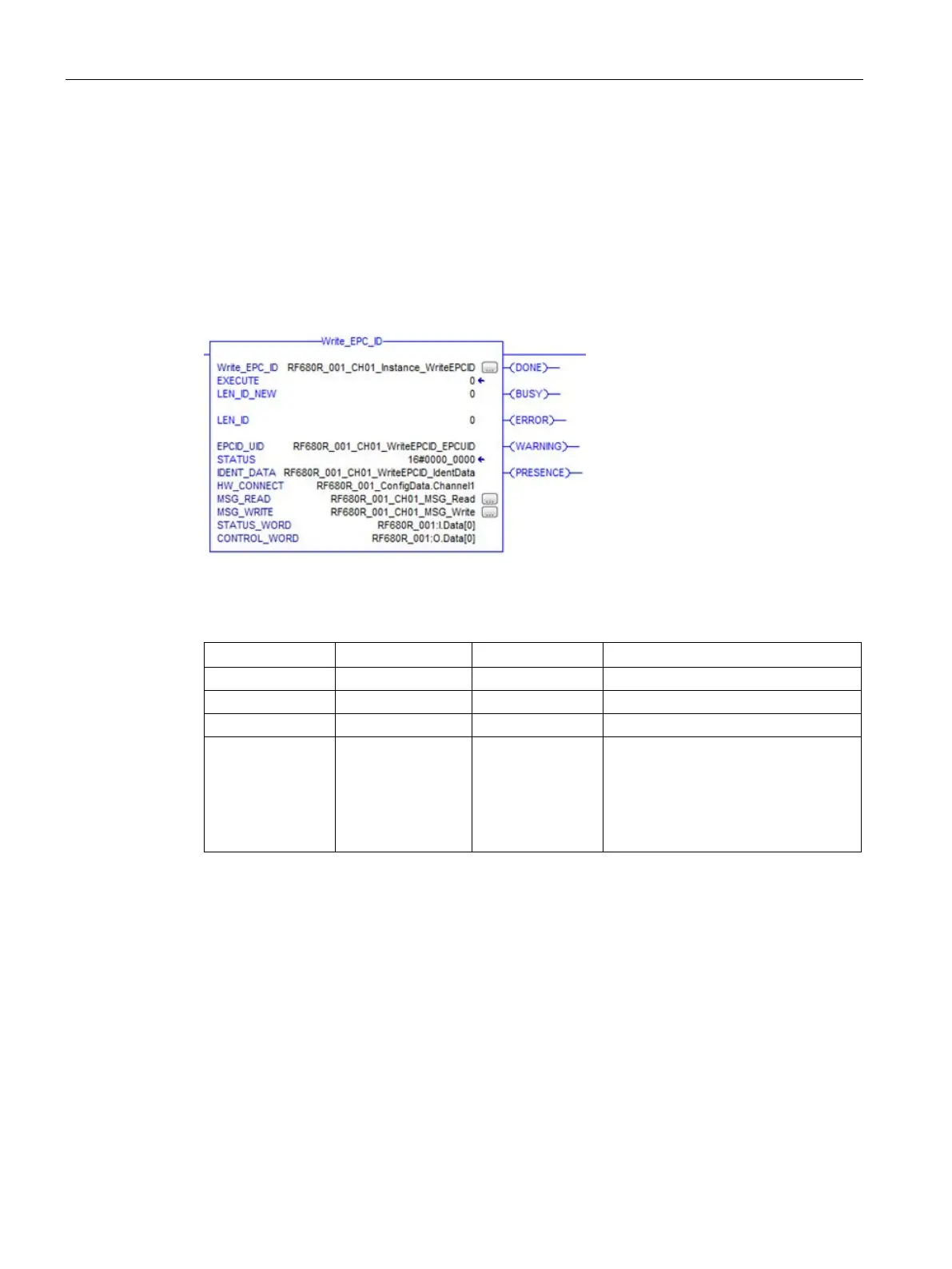

Figure 9-12 "Write_EPC_ID" block
Table 9- 16 Explanation of the "Write_EPC_ID" block
Parameter
Data type
Default values
Description
LEN_ID_NEW
SINT
W#16#0C
Length of the current EPC-ID
LEN_ID
SINT
B#16#0
Length of the previous EPC-ID
EPCID_UID
SINT[62]
0
Previous EPC ID
IDENT_DATA SINT[10] 0 Current EPC ID
Note.
When necessary a byte/array of any
size can be transferred to this parame-
ter. Note that the array must be ≥ 10
bytes long (e.g. "SINT[12400]").
