Configuring with the WBM
7.3 The menu items of the WBM
SIMATIC RF650R/RF680R/RF685R
68 Configuration Manual, 03/2018, C79000-G8976-C386-06
Table 7- 11 Description of the memory banks
Freely writable "USER" memory area
TID Specified by the manufacturer. The TID contains the class identifier and
depending on the transponder type also the serial number of the tran-
sponder.
EPC Contains the EPC-ID data, the protocol information (Protocol Control
Word) and the CRC data of the transponder. You can write to the EPC
Contains the access and kill password.
The "Settings - Filters" menu item
In the "Settings - Filters" menu item, you can create and edit filters. By using filters and
depending on the filter criteria, you can separate out specific transponders that will not be
processed any further. This page is divided into 3 areas:
● Filters
● Filter properties
● Transponder memory configuration

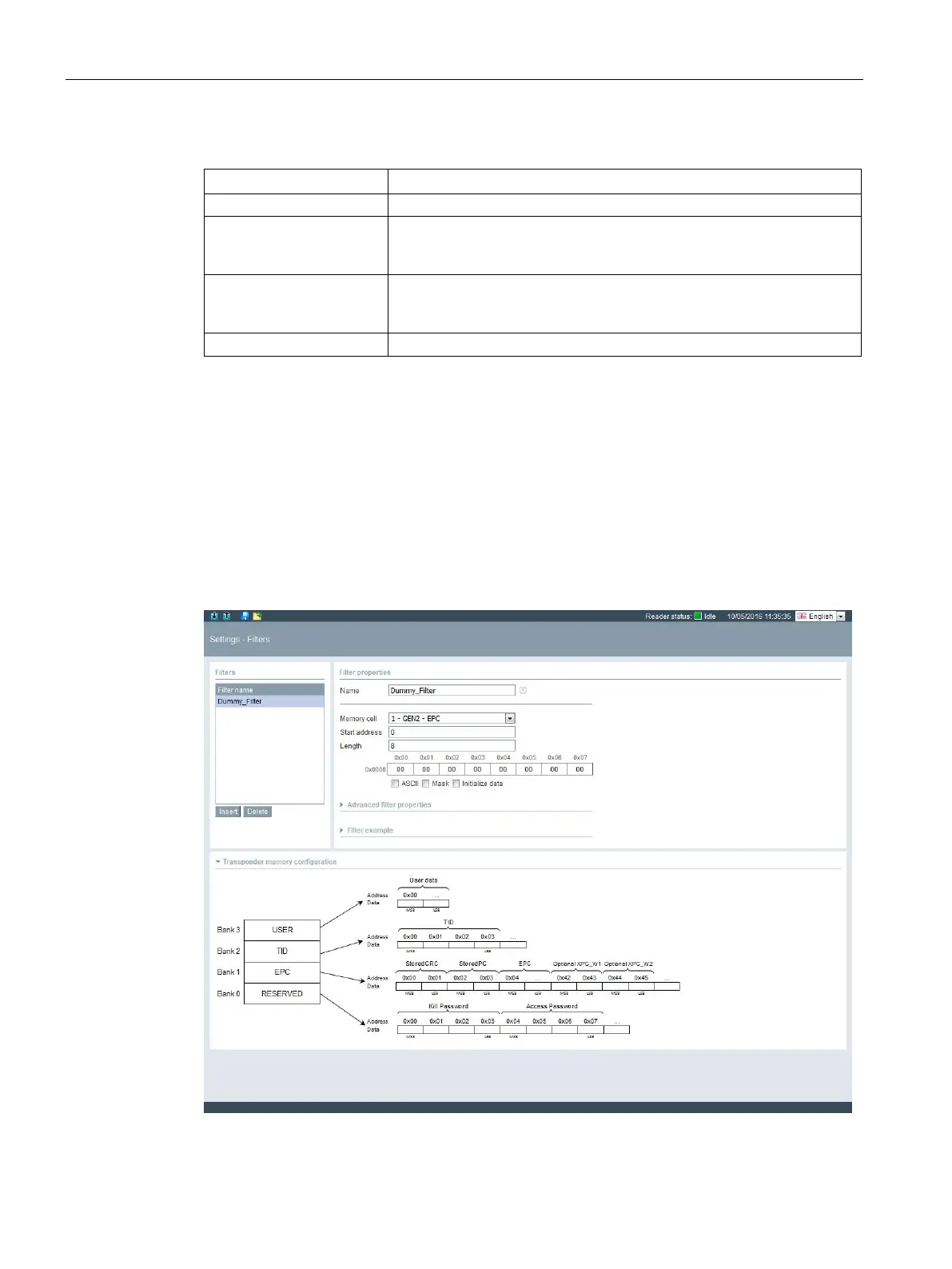

Figure 7-10 The "Settings - Filters" menu item
