Commissioning
4.4 Assign the IP address / device name
SIMATIC RF650R/RF680R/RF685R
34 Configuration Manual, 03/2018, C79000-G8976-C386-06
Follow the steps below to assign a unique device name to the reader:
1. Call up the BOOTP / DHCP server.
2. Click on the menu command "Tools > Network Settings".
The input screen "Network Settings" is opened.
3. Enter the subnet mask of the server in the input box "Subnet Mask".
4. Enter the gateway of the server in the input box "Gateway".
5. Confirm your entry with "OK".
6. Double click on an entry in the "Request History" area.
The input screen "New Entry" opens.
7. In the input box "IP Address" enter a new unique IP address.
8. Confirm your entry with "OK".
The entry was assigned the IP address in the "Request History" area.
The entry is also displayed in the "Relation List" area.

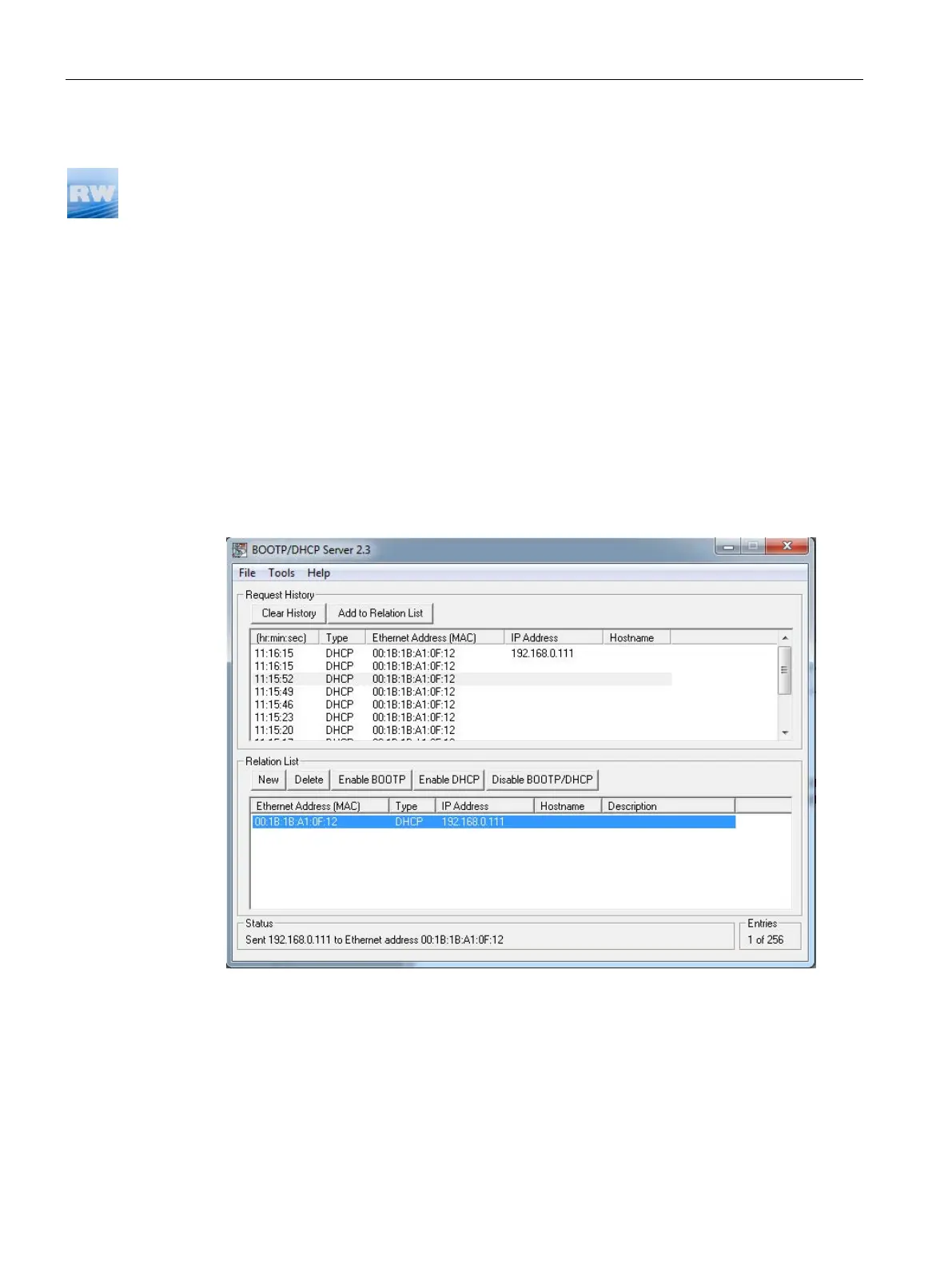

Figure 4-6 BOOTP / DHCP server software
9. Click the "Disable BOOTP/DHCP" button to save the IP address on the reader.
Result: The reader is assigned the IP address statically.
