Siemens Simatic series User Manual

Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
101

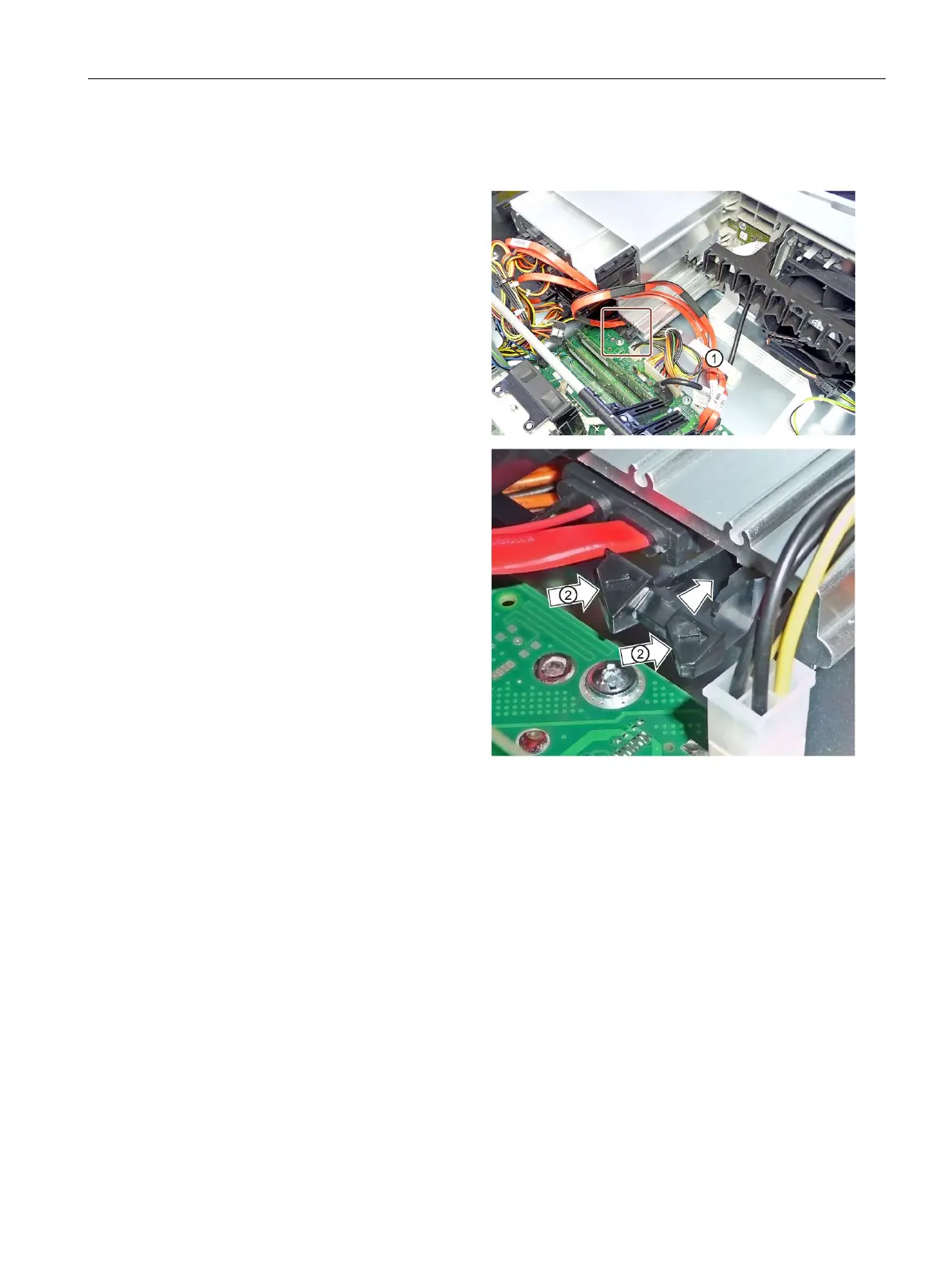

Procedure
1.
Remove all SATA cables from the
cable holder ①.
The outlined segment is enlarged
in the next figure.
2.
Unlock the DVD drive bay by
pressing against the movable
areas
② in the direction of the
arrow, keeping the areas pressed
and at the same time pushing the
drive bay in the direction of the
arrow slightly to the front with all
connected cables.

Siemens Simatic series Specifications

General

Processor	Intel Core i3, Core i5, Core i7
Operating System	Windows 10 IoT Enterprise, Linux
Storage	SSD, HDD
Interfaces	Ethernet, USB, RS-232/485
Ports	Ethernet, USB, Serial
Mounting	DIN rail, wall
Protection Class	IP65
Graphics	Integrated Intel HD Graphics
Expansion Slots	PCIe
Power Supply	24V DC or 100-240V AC
Operating Temperature	0°C to 50°C (depending on model)
