Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
102 Operating Instructions, 04/2020, A5E49948632-AA

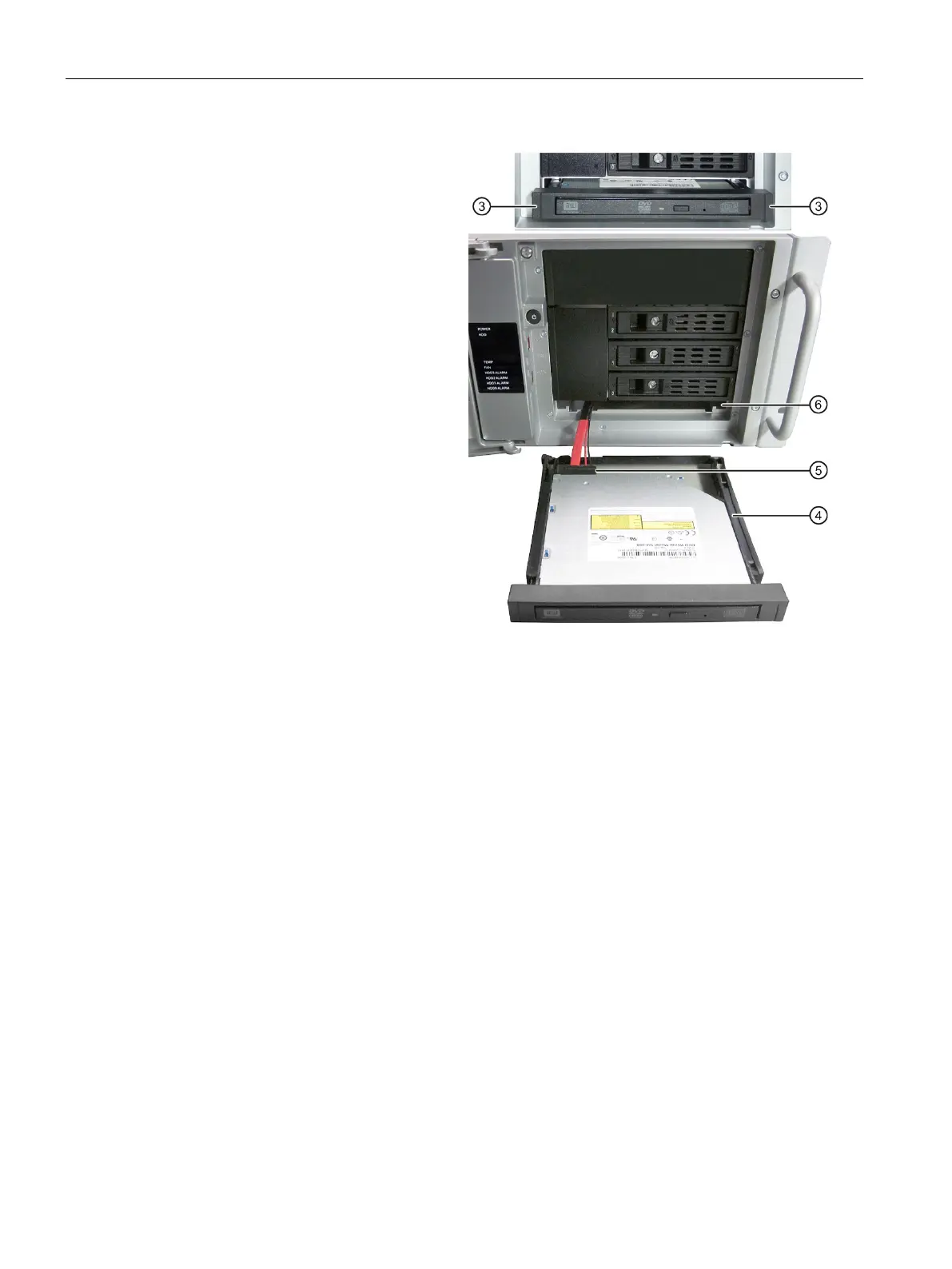

3.
Grip the front of the DVD
③
drive
on the left and the right and pull
it
completely out of the device.
4.
Carefully set down the DVD drive
in the drive bay ④, as shown.
5.
Remove the SATA connector ⑤
from the DVD drive.
Replace the DVD drive and
reconnect the SATA connector to
the DVD drive.
Take care not to touch the
contacts when you do this.
6.
Push the drive bay into the
installation slot
⑥ from the front
until it snaps into place at the
back.
7.
Place all the SATA cables into
the cable holder
① and close it.
See also
Removing and installing a 3.5"/2.5" drive in drive cage type B (Page 80)
