Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
95

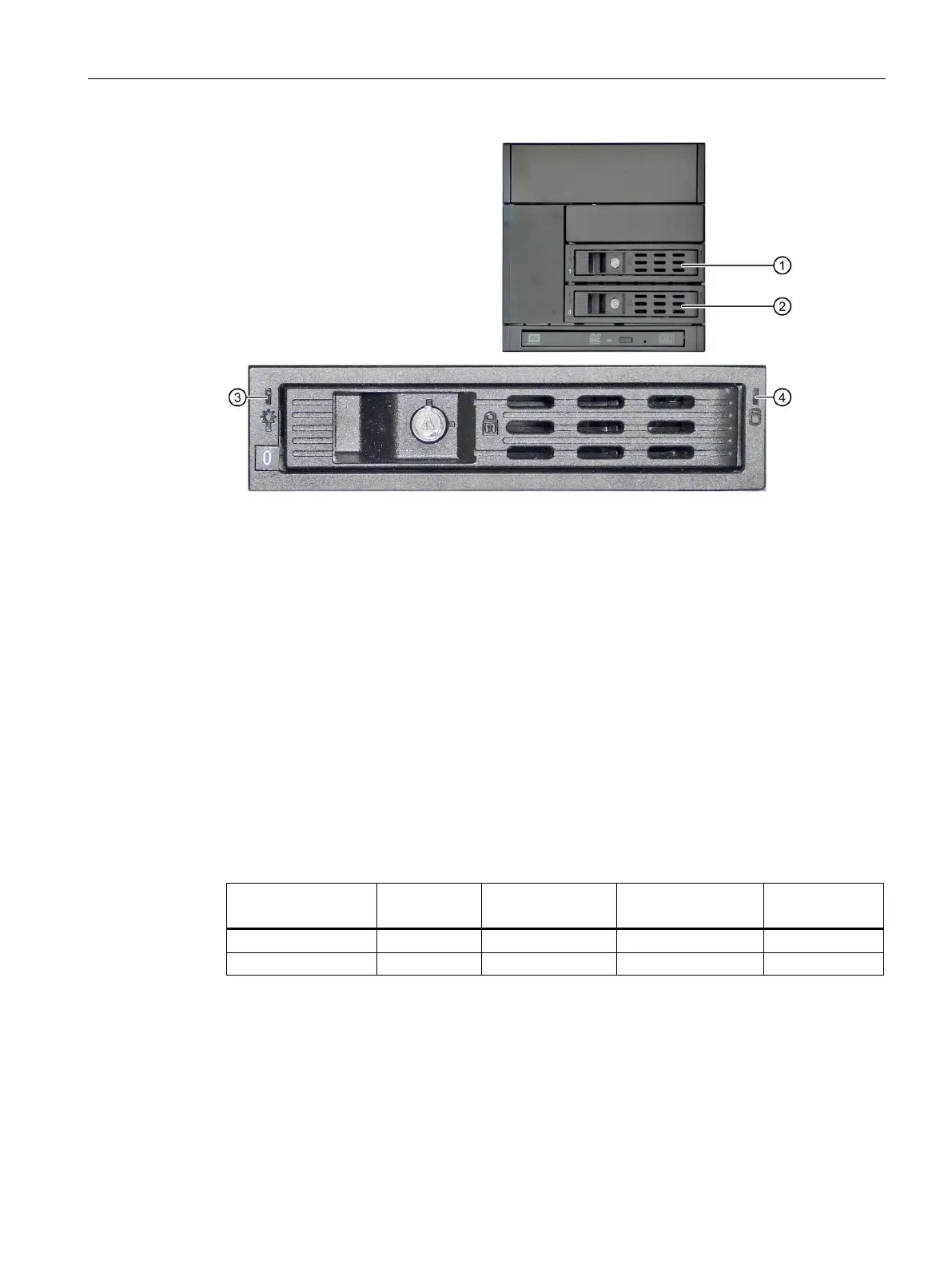

Similar to figure
①
Removable tray 1
②
Removable tray 0
③
"Power" LED; power supply available
④
"HDD" LED, access to hard disk drive
Status displays of the hard disk drives in a RAID1 system
A defective hard disk drive in the RAID system is signaled with the status displays at the
front of the device.
The following table includes information on the alarms of the status displays. If the hard disk
drive is defective and the SIMATIC monitoring software is installed, the LEDs of the status
display light up individually or simultaneously.
Internal hard disk drive or hard disk drive in the removable tray
Status display
RAID BIOS
RAID software
Data cable connec-
tion
Drive
HDD0 alarm
Port 0
Device port 0
0
0
HDD1 alarm
Port 1
Device port 1
1
1

Siemens Simatic series Specifications

General

Processor	Intel Core i3, Core i5, Core i7
Operating System	Windows 10 IoT Enterprise, Linux
Storage	SSD, HDD
Interfaces	Ethernet, USB, RS-232/485
Ports	Ethernet, USB, Serial
Mounting	DIN rail, wall
Protection Class	IP65
Graphics	Integrated Intel HD Graphics
Expansion Slots	PCIe
Power Supply	24V DC or 100-240V AC
Operating Temperature	0°C to 50°C (depending on model)
