Description
12 REVISION 02 * DESCRIPTION SIMOSEC * 832-6063.0
• Motor operating mechanism (option)
- Remote operation applied to terminals (standard)
- Local operation by means of momentary-contact rotary control switch, spring return
(option)
- Local-remote switch as maintained-contact rotary control switch, non-spring-return
(option)

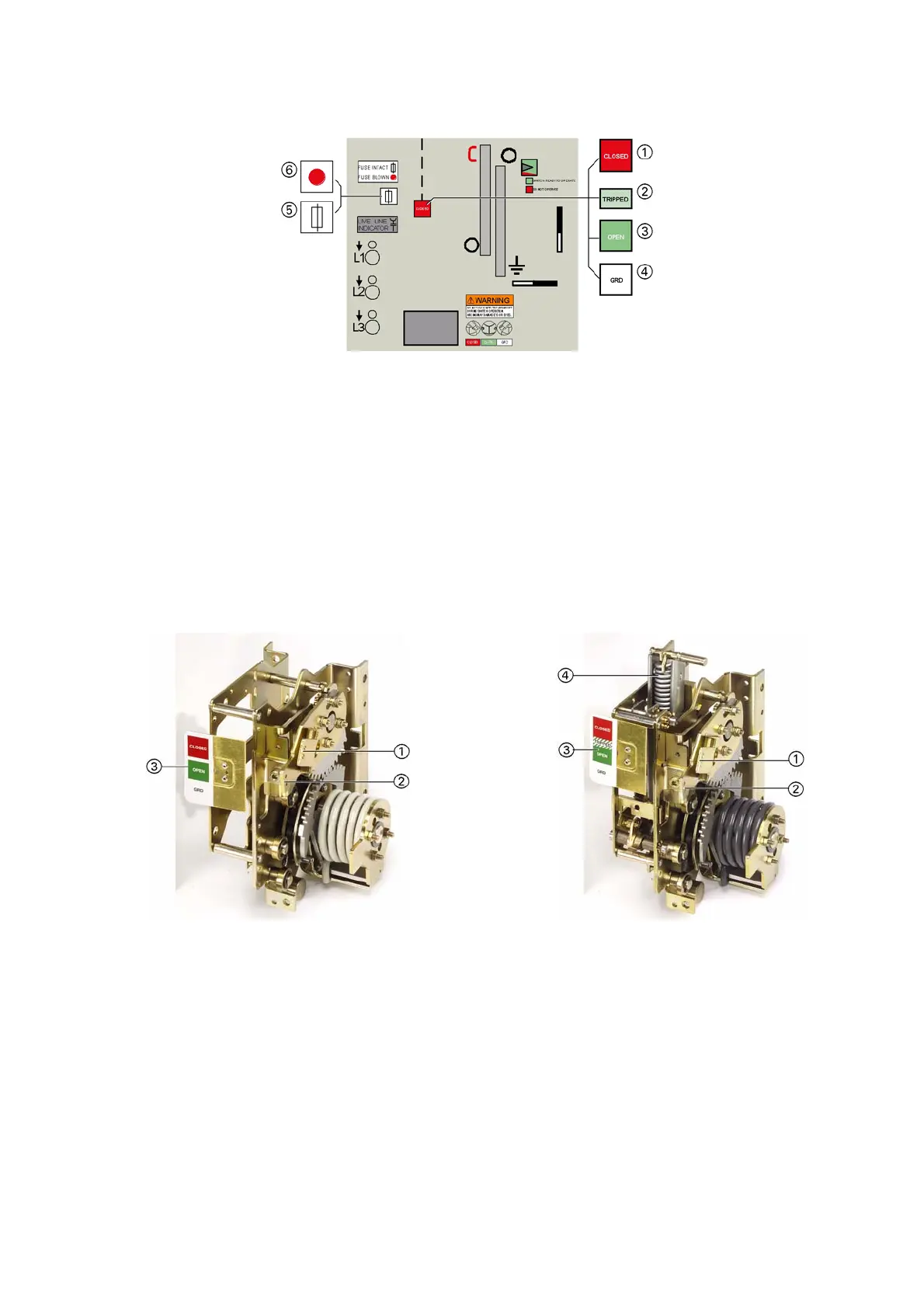

Fig. 5: Switch position indication
a
CLOSED indication
s
TRIPPED indication
d
OPEN indication
f
GROUNDED indication
g
Indication FUSE INTACT
h
Indication FUSE BLOWN
Fig. 6: Spring-operated mechanism Fig. 7: Spring-operated/stored-energy mechanism
a
Operating mechanism for three-position switch-
disconnector with optional motor operating mechanism
d
Switch position indicator (mechanical)
s
Manual operation of detachable lever mechanism for the grounding
function
f
Spring
