832-6063.0 * INSTALLATION SIMOSEC * REVISION 02 57
Installation
Ö Add the two distances together and add 1 inch to the sum of the distances.
r The result of this addition is the necessary length of the cold shrink. This length is
approximately equal to the length “a” (see Fig. 45: Cable connection type CC 1,
page 54).

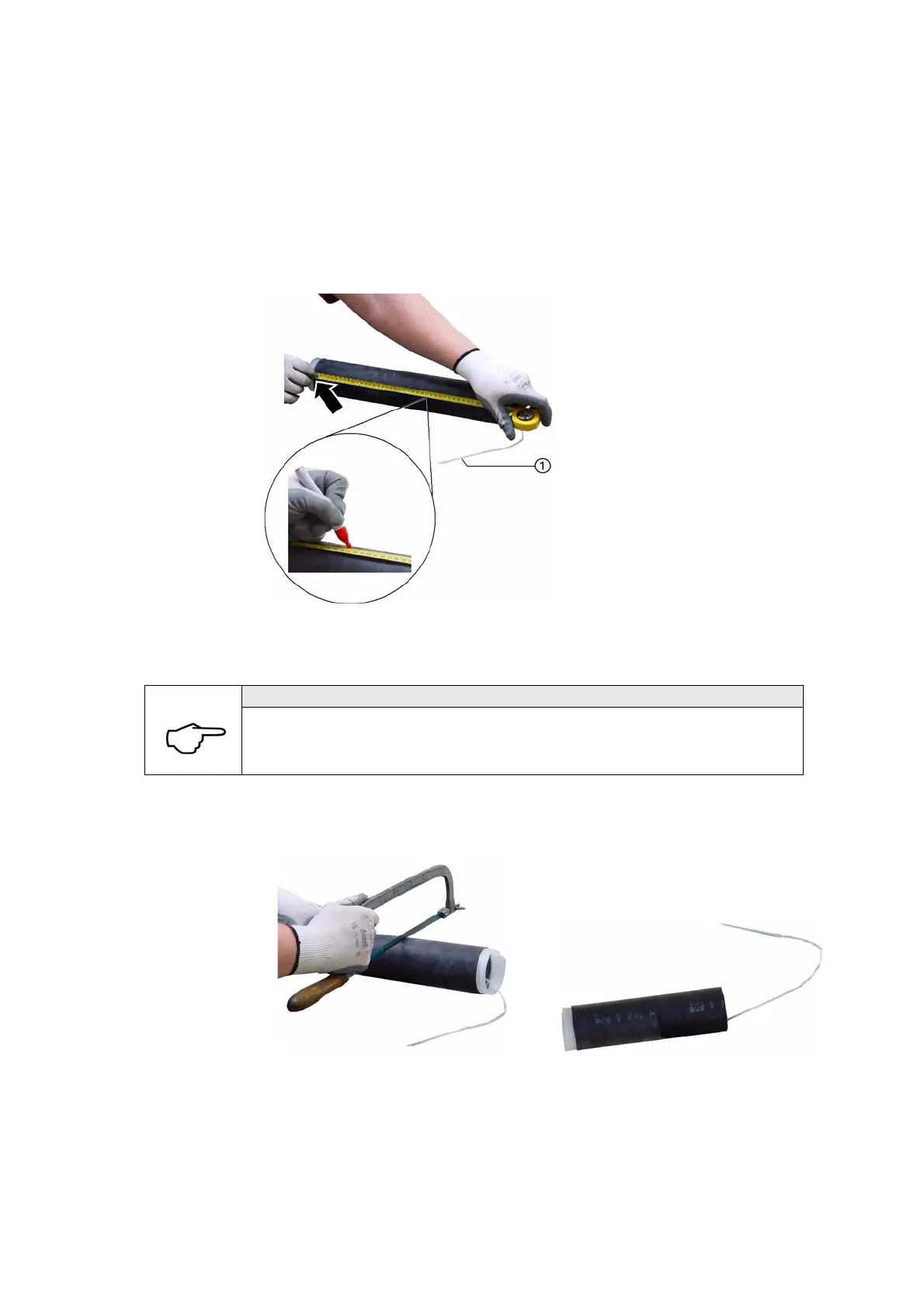

Cut the cold shrink
insulation to its necessary
length
Ö Measure from the upper edge, i. e., the side opposite the loose pull tab, of the cold
shrink and mark the determined length at the cold shrink.
Ö Cut the cold shrink insulation carefully using a handsaw at the marked distance while
turning the cold shrink insulation around its axis.
a
Loose pull tab
NOTE!
While cutting the cold shrink insulation, use care that you do not cut the loose pull
tab in the middle of the cold shrink insulation.
Ö Do not cut the pull tab in the middle of the cold shrink insulation.
