Installation

58 REVISION 02 * INSTALLATION SIMOSEC * 832-6063.0

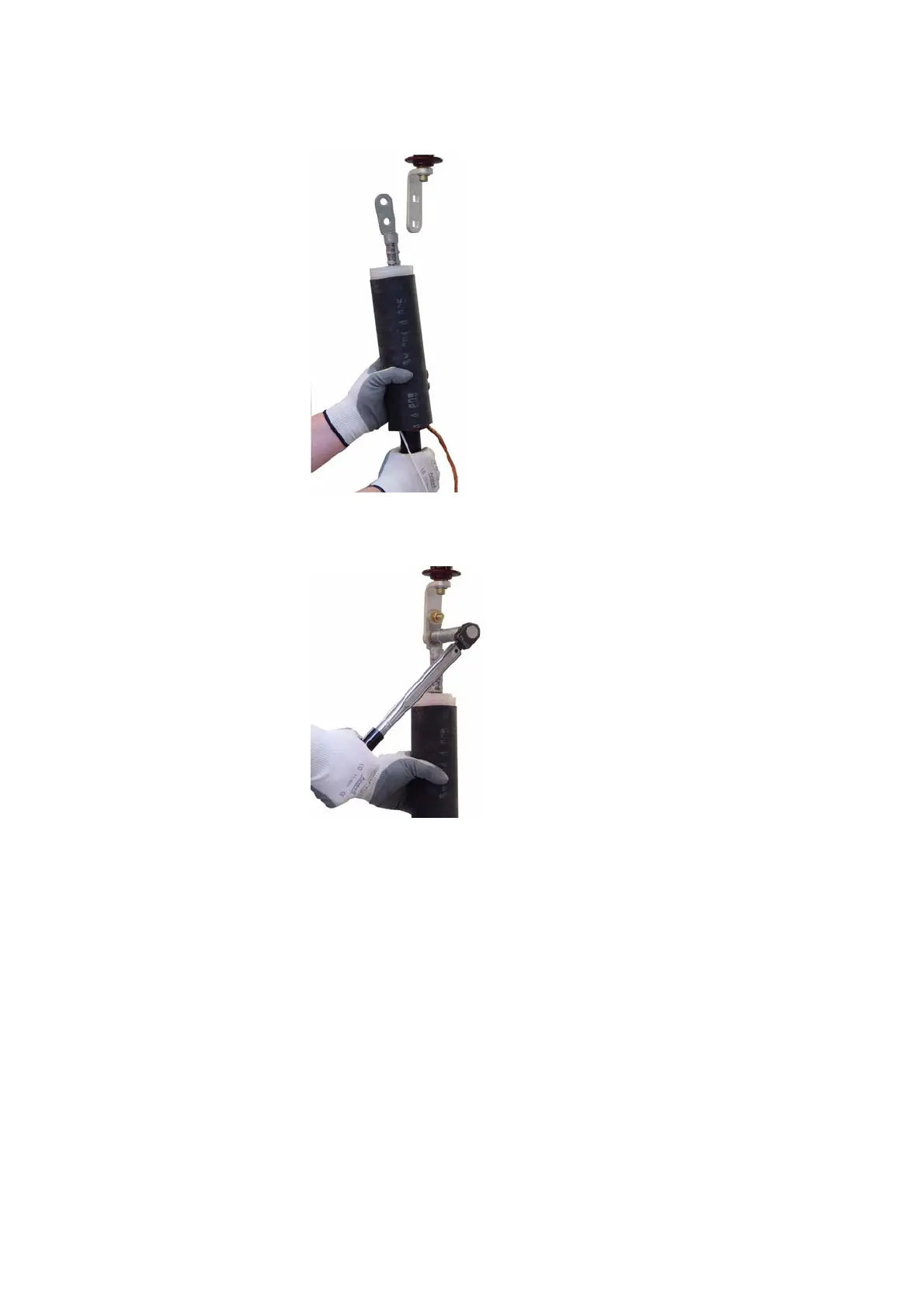

Mounting of the cold shrink Ö Pull the cold shrink insulation over the cable termination. The loose pull tab of the

cold shrink insulation must point away from the switchgear cable connection

terminal.

Ö Bolt the the high voltage cable together with the cable connection terminal

(tightening torque 37 lbf·ft or 50 Nm).
