4.2 Main circuit wiring
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
115
Attaching the line supply cable
CAUTION
Risk of injury due to improper cable connection
When attaching the line supply cable to a line supply connector that has not been fixed on
the drive, you can injure your fingers.
•
Make sure you first assemble the line supply connector to the drive and tighten the fixing
screws on the connector, and then attach the cable to the connector.

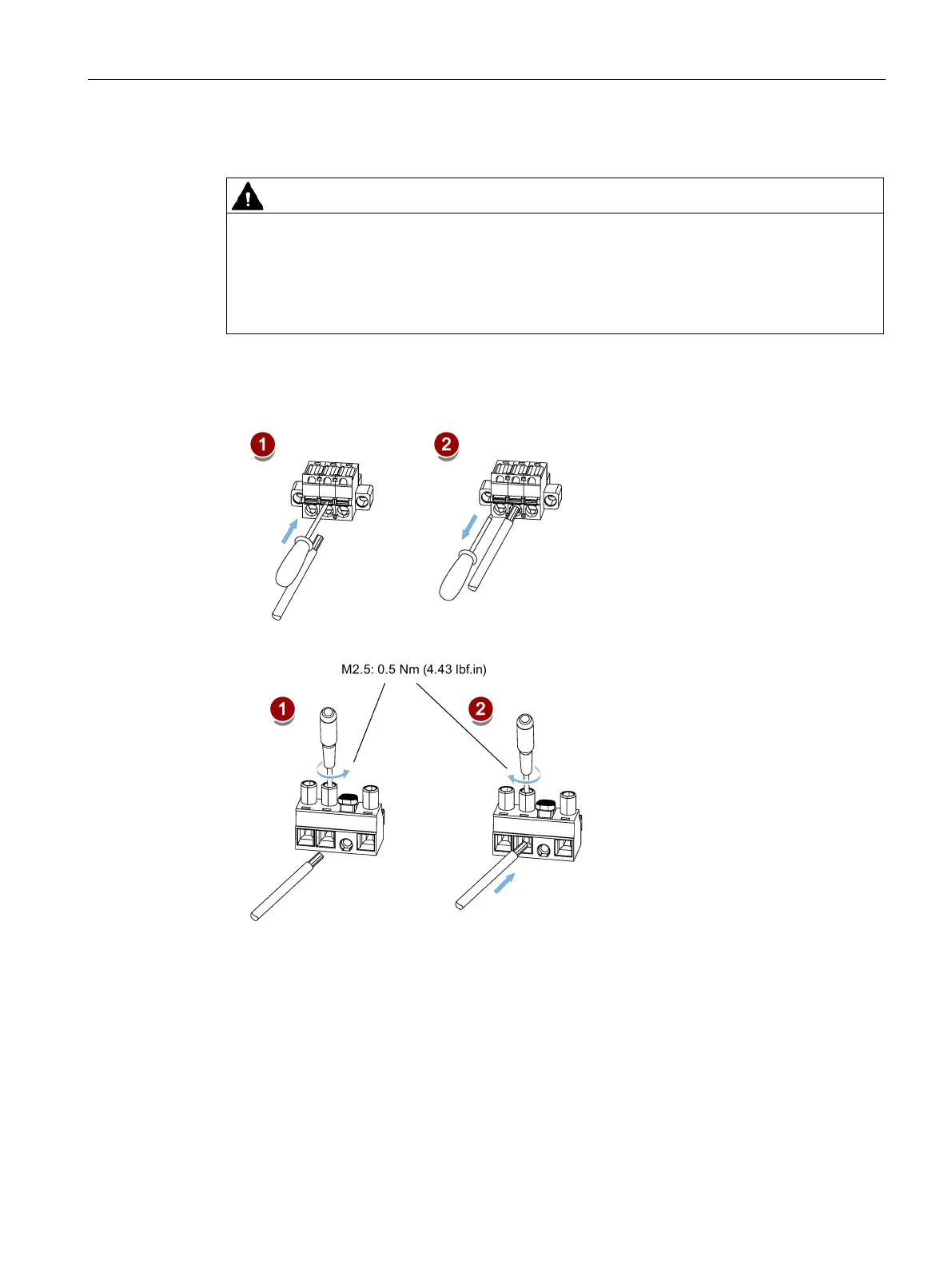

200 V variant
● For FSA and FSB
● For FSC and FSD
400 V variant
● For FSAA and FSA
You can attach the line supply cable with the same method for 200 V variant drives of
frame sizes FSC and FSD.
● For FSB and FSC
The FSB and FSC servo drives are equipped with barrier terminals for line supply
connection. You can fix the line supply cable on the servo drives by using the M4 screws
with a tightening torque of 2.25 Nm (19.91 lbf.in).
