A.1 Cable assembly
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
413
A.1.1.3
Brake terminal assembly
The assembly of a brake terminal follows the procedure as described for a power terminal of
the 200 V variant servo drive. See Section "Power terminal assembly (Page 411)" for details.
A.1.1.4

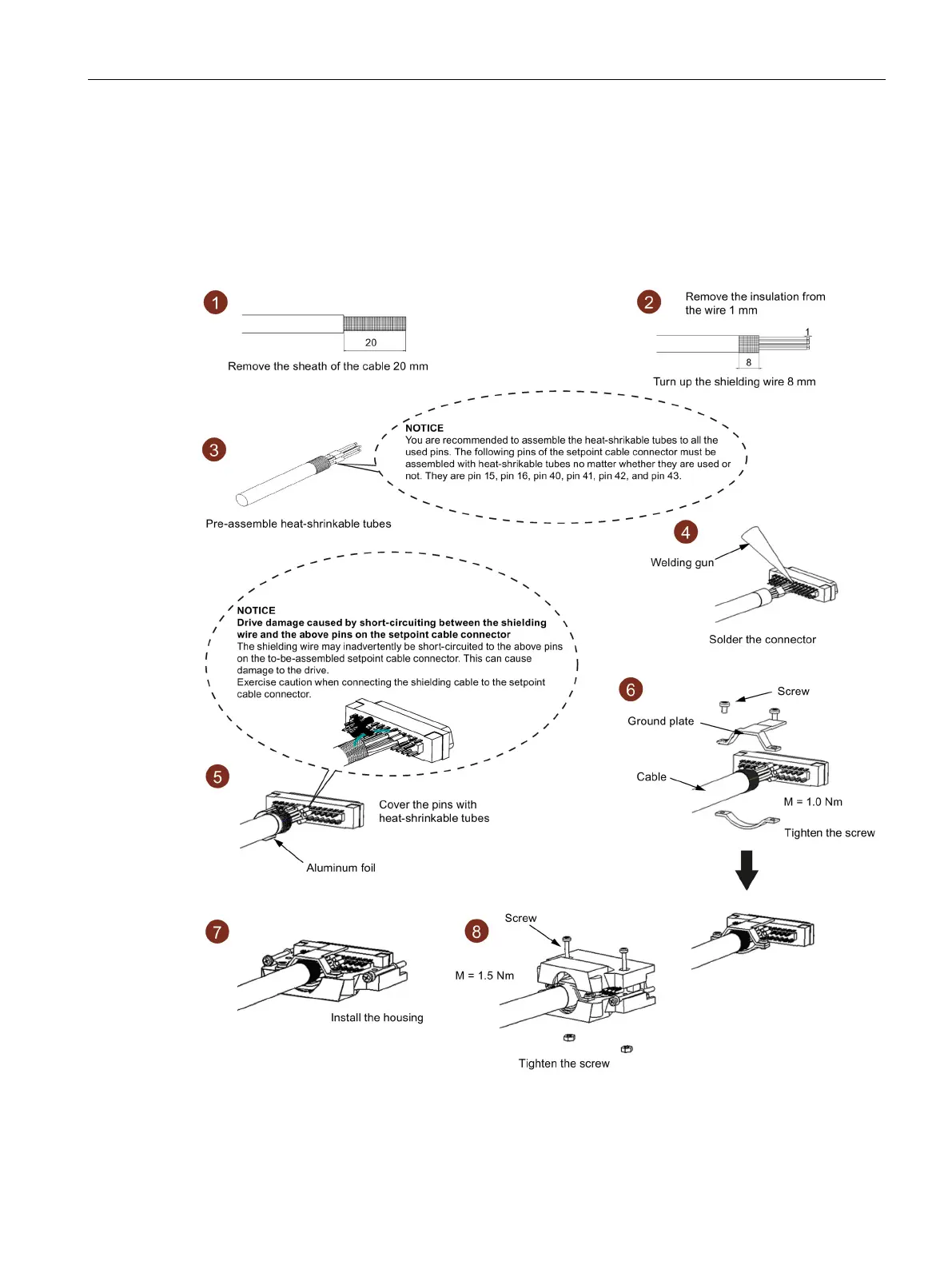

Setpoint connector assembly
