Control functions
7.3 Pulse train input position control (PTI)
SINAMICS V90, SIMOTICS S-1FL6
228 Operating Instructions, 04/2019, A5E36037884-007
7.3.7
Inhibiting pulse train input setpoint (P-TRG)
Note
P-TRG in PTI control mode
Note that the function "inhibiting pulse train by P
-TRG in PTI control mode" as described in
this section a
nd the rest of the manual is reserved for future use.
The digital input signal P-TRG is the default connection of DI6 in the position control mode.
In the pulse train input position control mode (PTI), P-TRG is level sensitive and can be used
to allow or inhibit positioning operation according to pulse train input setpoint:
● 0: positioning according to pulse train input setpoint
● 1: inhibit pulse train input setpoint

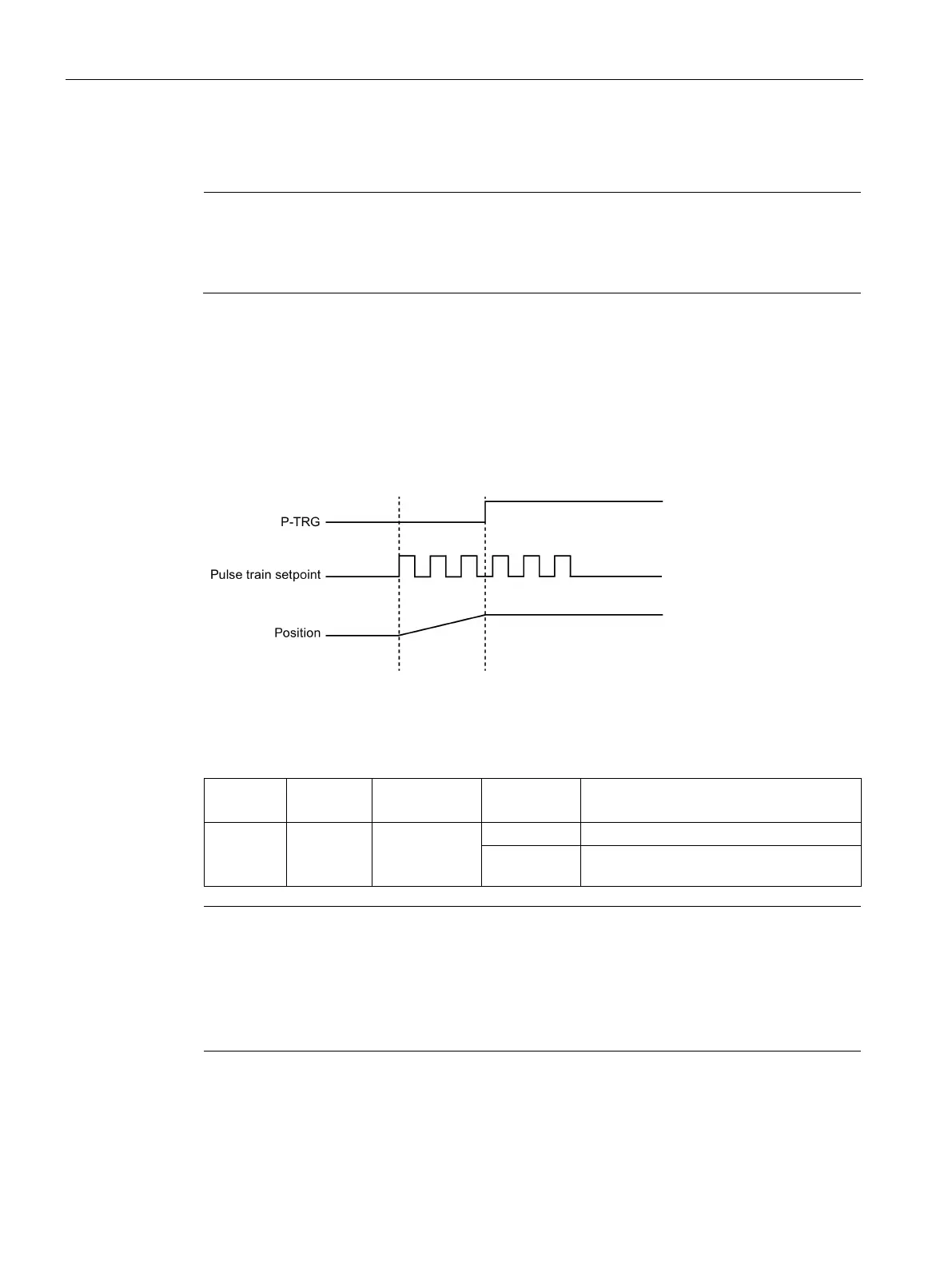

Timing diagram
DI configuration
The signal P-TRG is the factory setting of DI6.
Signal type
Signal
name
Pin assign-
ment
Setting
Description
DI P-TRG X8-10 (factory
setting)
High level (1)
Inhibit pulse train input setpoint
Low level (0) Positioning according to pulse train input
setpoint
Note
Refer to Section "
Digital inputs/outputs (DIs/DOs) (Page 122)" for detailed information about
DI parameterization.
•
The signal P-TRG is active only when the digital input signal SON is in OFF state.
•
When the signal P-TRG is active in the PTI mode or a compound mode with PTI, the
alarm A7585 occurs.
