Connecting
4.3 Control/status interface - X8
SINAMICS V90, SIMOTICS S-1FL6
136 Operating Instructions, 04/2019, A5E36037884-007
4.3.4
Standard application wiring (factory setting)
4.3.4.1
Pulse train input position control (PTI)

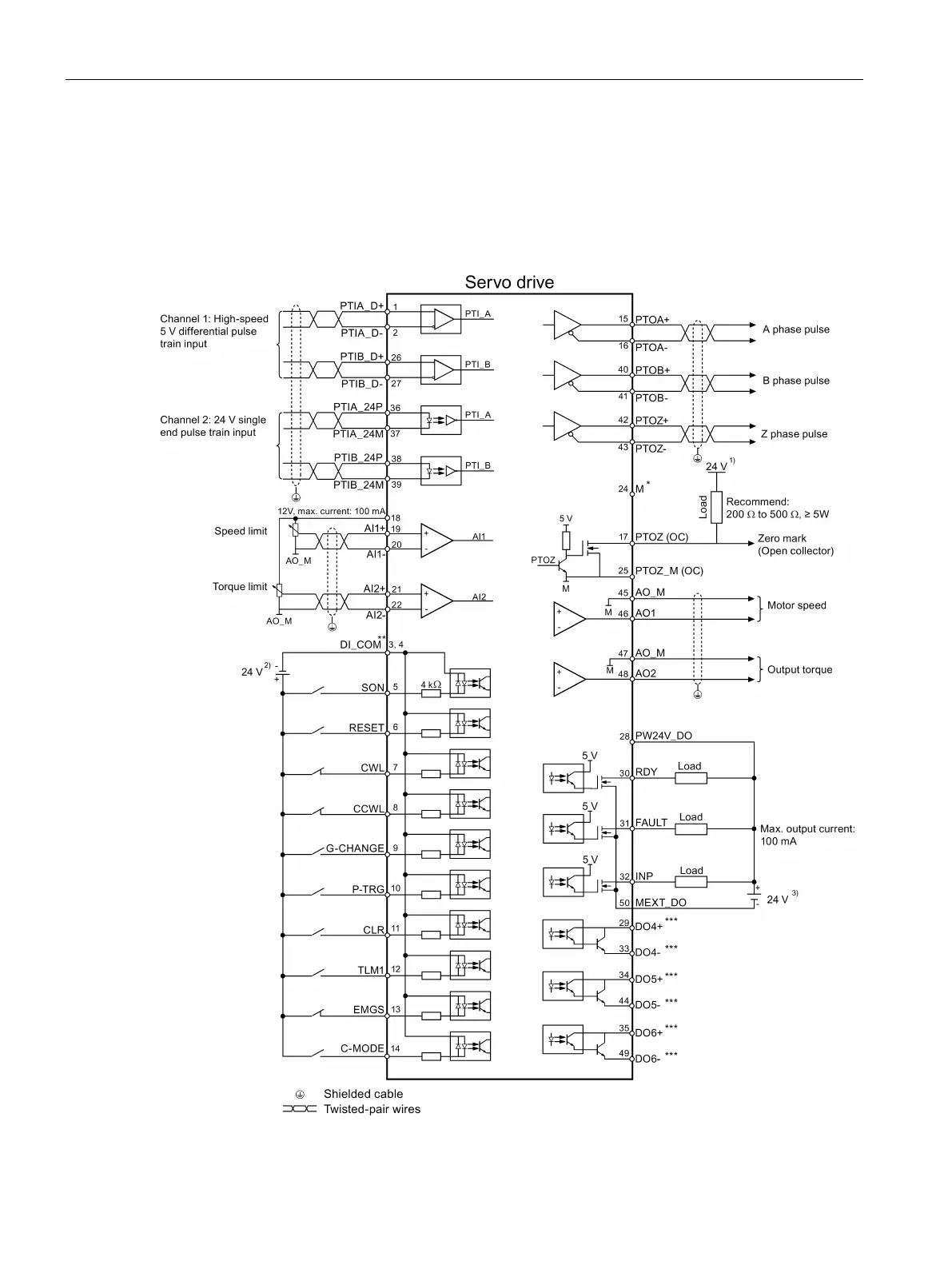

Standard wiring for pulse train input position control mode:
