Connecting
4.3 Control/status interface - X8
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
157
4.3.5.3

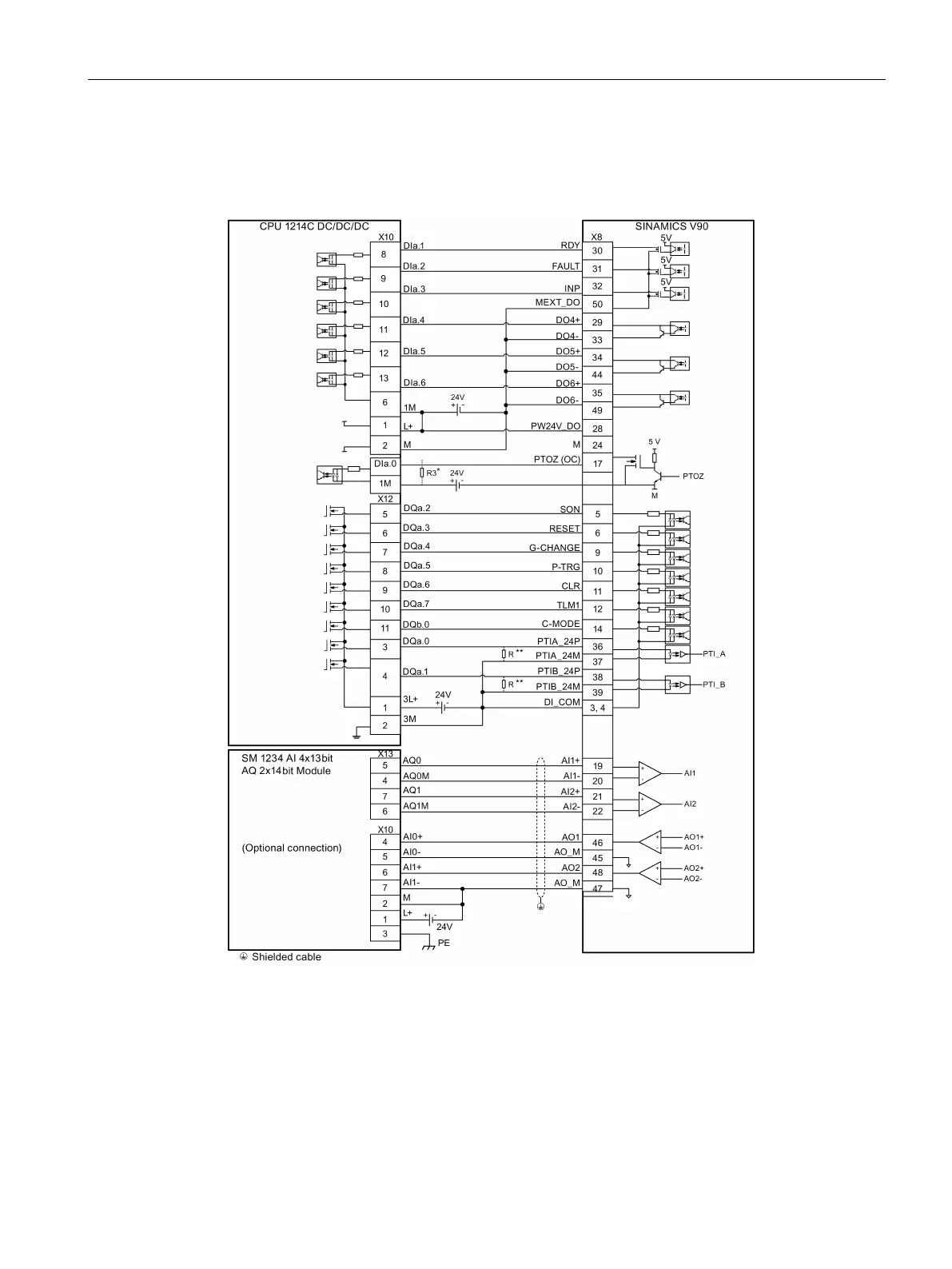

SIMATIC S7-1200
Pulse train input position control (PTI)
*
The resistor R3 (200 Ohm to 500 Ohm) is required only if the speed for searching the
zero position exceeds 300 rpm.
**
The resistor R (200 Ohm to 500 O
hm, recommended power ≥ 5 W ) is required only if
the PTI input frequency exceeds 100 KHz.
