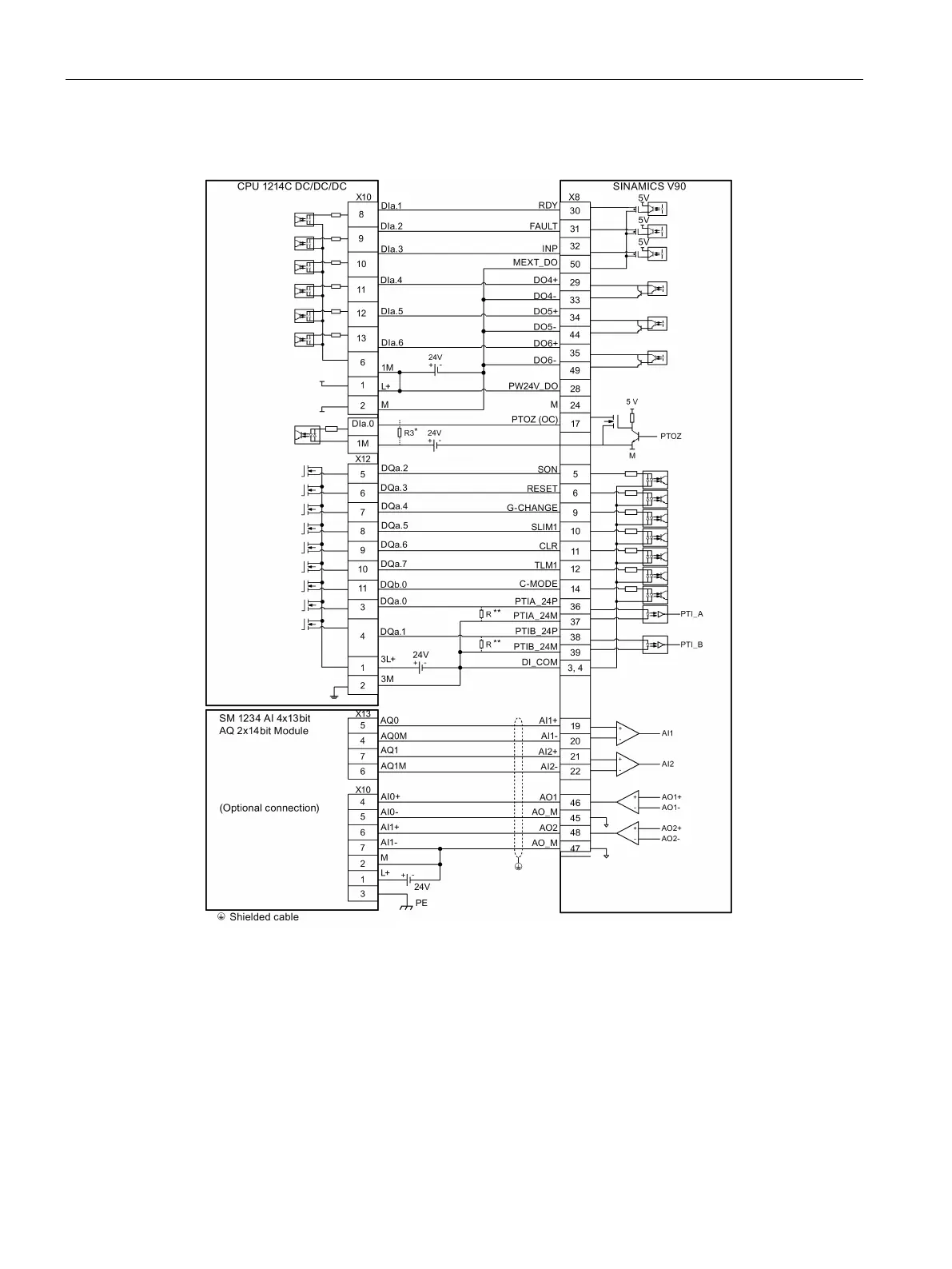

4.3 Control/status interface - X8
SINAMICS V90, SIMOTICS S-1FL6
158 Operating Instructions, 04/2019, A5E36037884-007
Fast pulse train input position control (Fast PTI)
*
The resistor R3 (200 Ohm to 500 Ohm) is required only if the speed for searching the
zero position exceeds 300 rpm.
**
The resistor R (200 Ohm to 500 Ohm, recommended power ≥ 5
W ) is required only if
the PTI input frequency exceeds 100 KHz.
