Control functions
7.3 Pulse train input position control (PTI)
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
227

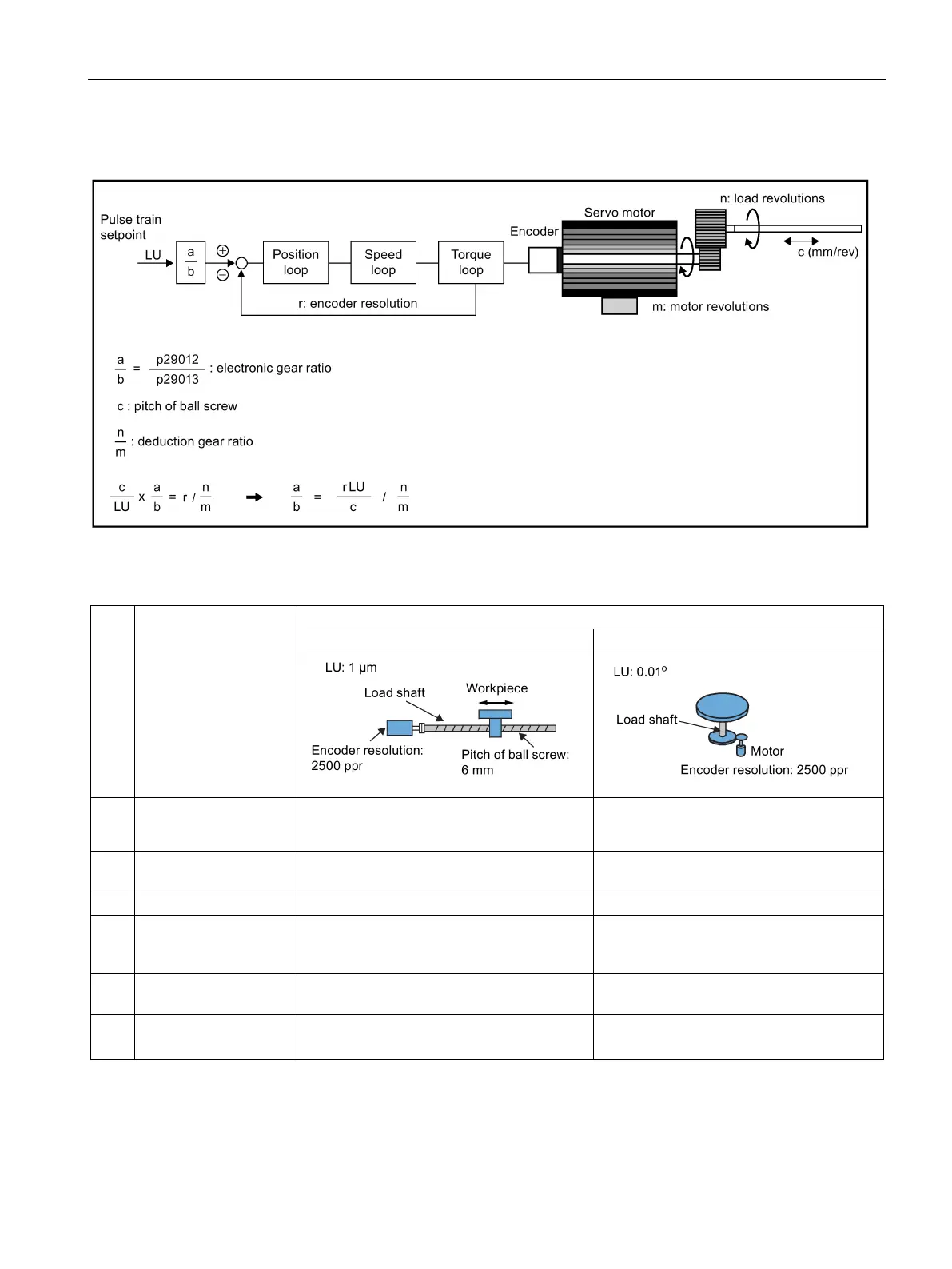

Calculation formula for the electronic gear ratio
Examples for calculating the electronic gear ratio
Step
Description
Mechanism
Ball screw
Disc table
1 Identify mechanism
• Pitch of ball screw: 6 mm
• Deduction gear ratio: 1:1
• Rotary angle: 360
o
• Deduction gear ratio: 1:3
2 Identify the encoder
resolution
10000 10000
3
Define LU
1 LU = 1 μm
1 LU = 0.01
o
4 Calculate the travel
distance per load shaft
revolution
6/0.001 = 6000 LU 360
o
/0.01
o
= 36000 LU
5 Calculate the electronic
gear ratio
(1/6000)/(1/1) × 10000 = 10000/6000 (1/36000)/(1/3) × 10000 = 10000/12000
6 Set parameters
p29012/p29013
10000/6000 = 5/3 10000/12000 = 5/6
