Connecting
4.2 Main circuit wiring
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
117

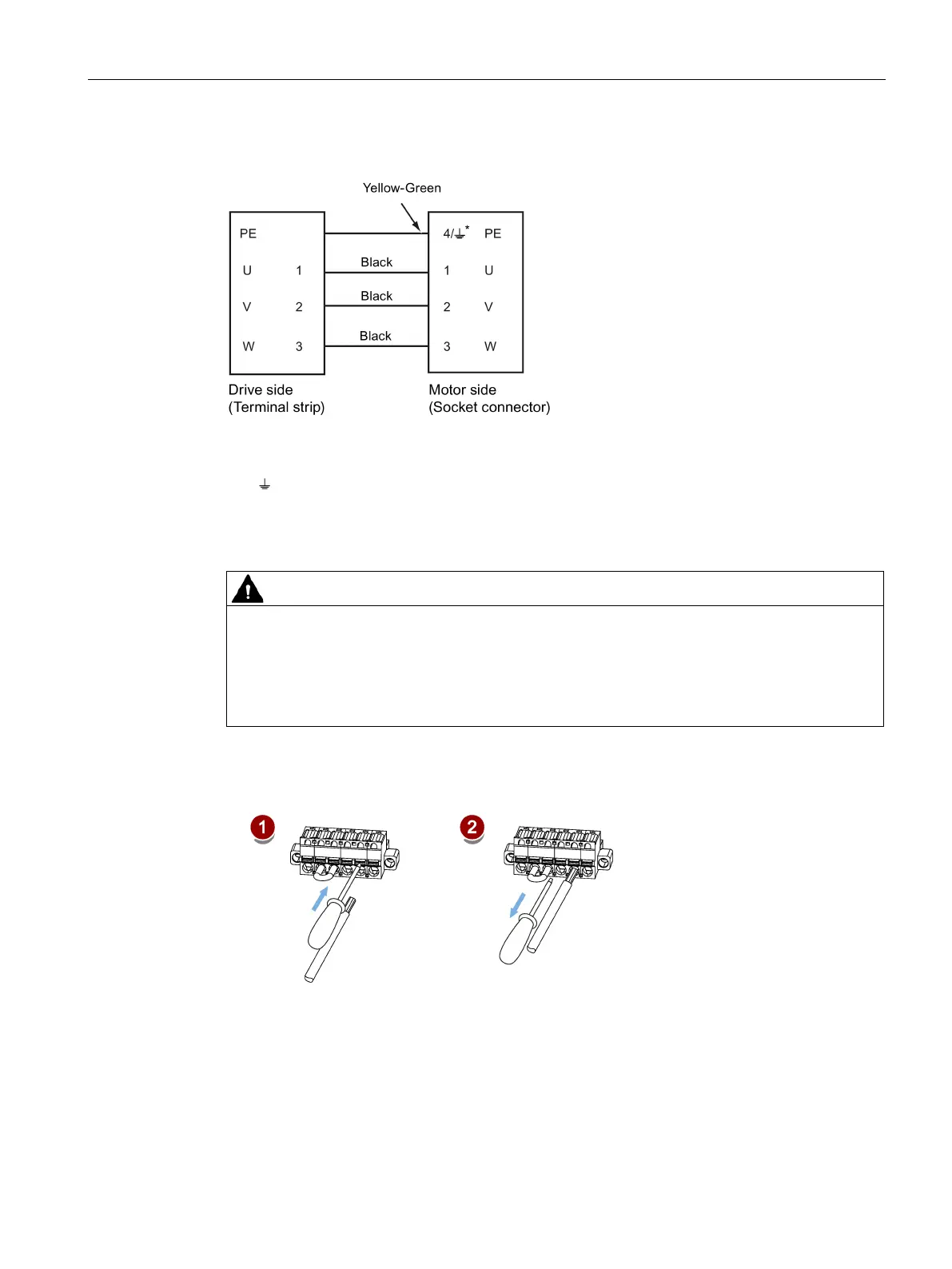

4: high inertia motors with straight connectors and all low inertia motors
: high inertia motors with angular connectors
Attaching the motor power cable
Risk of injury due to improper cable connection
When attaching the motor power cable to a motor power connector that has not been fixed
on the drive, you can injure your fingers.
• Make sure you first assemble the motor power connector to the drive and tighten the
fixing screw on the connector, and then attach the cable to the connector.
● FSA and FSB
