Basic operator panel (BOP)
6.1 BOP overview
SINAMICS V90, SIMOTICS S-1FL6
190 Operating Instructions, 04/2019, A5E36037884-007

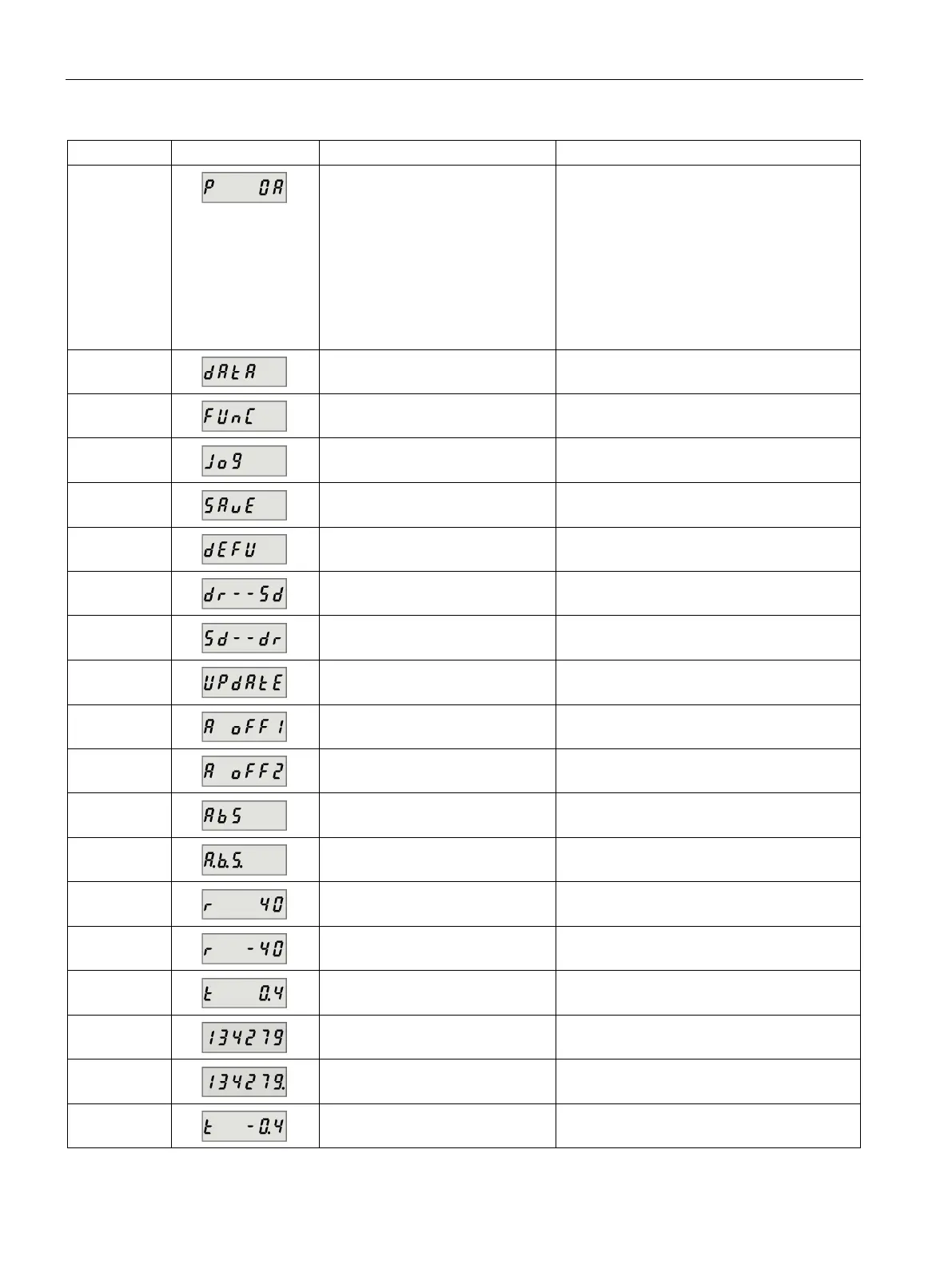

Display
Example
Description
Remarks
P xxx Parameter group Six groups are available:
1.
P 0A
: basic
2.
P 0B
: gain adjustment
3.
P 0C
: speed control
4.
P 0D
: torque control
5.
P 0E
: position control
6.
P 0F
: I/O
7.
P ALL
: all parameters
Data Read-only parameter group Refer to "Viewing parameters (Page 198)".
Func Function group Refer to "Auxiliary functions (Page 199)".
Jog Jog function Refer to "JOG (Page 200)".
Save Save data in drive Refer to "Saving parameters (RAM to ROM)
(Page 201)".
defu Restore drive to default settings Refer to "Setting parameters to default
(Page 202)".
dr--sd Save data from drive to micro SD
card/SD card
Refer to "Transferring data (drive to SD)
(Page 203)".
sd--dr Upload data from micro SD
card/SD card to drive
Refer to "Transferring data (SD to drive)
(Page 203)".
Update Update firmware Refer to "Updating firmware (Page 204)".
A OFF1 Adjust AI1 offset Refer to "Adjusting AI offsets (Page 205)".
A OFF2 Adjust AI2 offset Refer to "Adjusting AI offsets (Page 205)".
ABS The zero position has not been set Refer to "Adjusting an absolute encoder
(Page 207)".
A.B.S. The zero position has been set Refer to "Adjusting an absolute encoder
(Page 207)".
r xxx Actual speed (positive direction)
r -xxx Actual speed (negative direction)
T x.x Actual torque (positive direction)
xxxxxx Actual position (positive direction) Only the last six digits displays due to a lim-
ited display length.
xxxxxx. Actual position (negative direction) Only the last six digits displays due to a lim-
ited display length.
T -x.x Actual torque (negative direction)
