7.5 Internal position control (IPos)
SINAMICS V90, SIMOTICS S-1FL6
242 Operating Instructions, 04/2019, A5E36037884-007
You can select one of these referencing modes by setting the parameter p29240.
Parameter
Range
Default
Unit
Description
p29240 0 to 4 1 -
• 0: Setting reference point with the digital
input signal REF
• 1: External reference cam (signal REF) and
encoder zero mark
• 2: Encoder zero mark only
• 3: External reference cam (signal CCWL) and
encoder zero mark
• 4: External reference cam (signal CWL) and
encoder zero mark
Note
Referencing mode for absolute encoder
If an absolute encoder is connected, the five referencing modes are available. You can
select the different referencing modes with parameter p29240. When p29240 = 1 to
4, the
referencing process can only be implemented before you use the "ABS" function. Once the
"ABS" function is implemented, the four referencing modes are not available any more.
Note
p29240 can be modified only when the drive is in IPos mode.

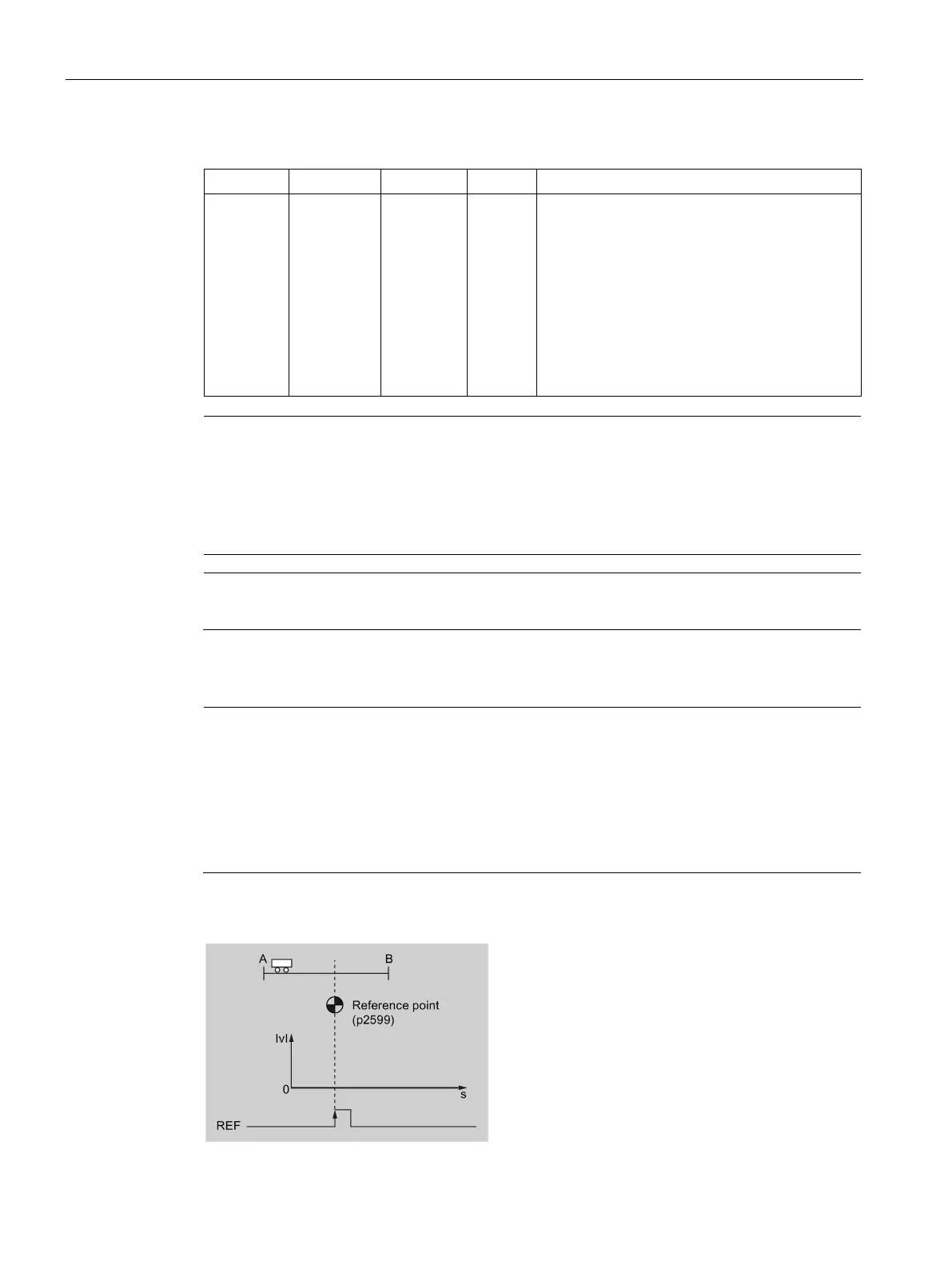

Setting reference point with the digital input signal REF (p29240=0)
Note
Preconditions for this referencing mode
•
The servo motor must be in "S ON" state and keep standstill.
•
The signal REF must be OFF under the following conditions:
– before power-on
– when switching from another referencing mode to this referencing mode
–
when switching from another control mode to internal position control mode
The current position is set to zero at a rising edge of the signal REF and the servo drive is
referenced:
