Diagnostics
11.1 Overview
SINAMICS V90, SIMOTICS S-1FL6
384 Operating Instructions, 04/2019, A5E36037884-007

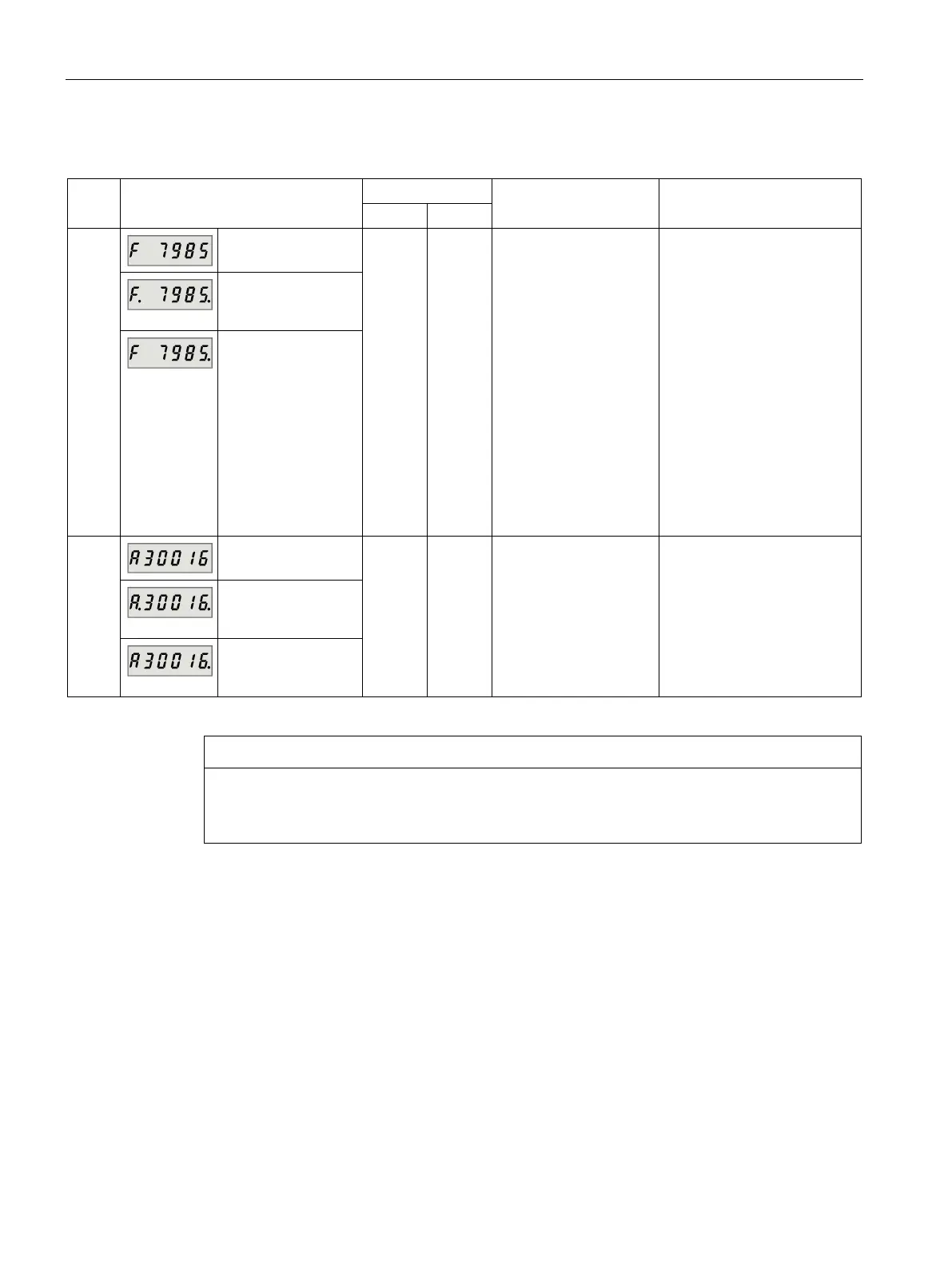

Differences between faults and alarms
Type
BOP display (example)
Status indicator
Reaction
Acknowledgement
RDY
COM
Fault
Single fault Slow
flashing
in red
-
•
NONE
: no reaction
•
OFF1
: servo motor
ramps down
•
OFF2
: servo motor
coasts down
•
OFF3
: servo motor
stops quickly
•
ENOCDER
: Encod-
er fault causes
OFF2.
•
POWER ON
: re-power on
the servo drive to clear a
fault after eliminating its
cause.
•
IMMEDIATELY
: the fault
disappears immediately
after eliminating its cause.
•
PULSE INHIBIT
: The fault
can only be acknowl-
edged with a pulse inhibit.
The same options are
available for acknowledg-
ing as described under
acknowledgment with
IMMEDIATELY.
The first fault in the
case of multiple
faults
Non-first fault in the
case of multiple
faults
Alarm
Single alarm Slow
flashing
in red
-
NONE
: no reaction Self-acknowledgement
The first alarm in the
case of multiple
alarms
Non-first alarm in
the case of multiple
alarms
NOTICE
Faults are displayed in prior to alarms
If both faults and alarms occur, faults are displayed in prior to alarms. Alarms are displayed
only after all faults have been acknowledged.
