Appendix
A.1 Cable assembly
SINAMICS V90, SIMOTICS S-1FL6
410 Operating Instructions, 04/2019, A5E36037884-007
Observe the assembly procedures in this section as well as the following key points:

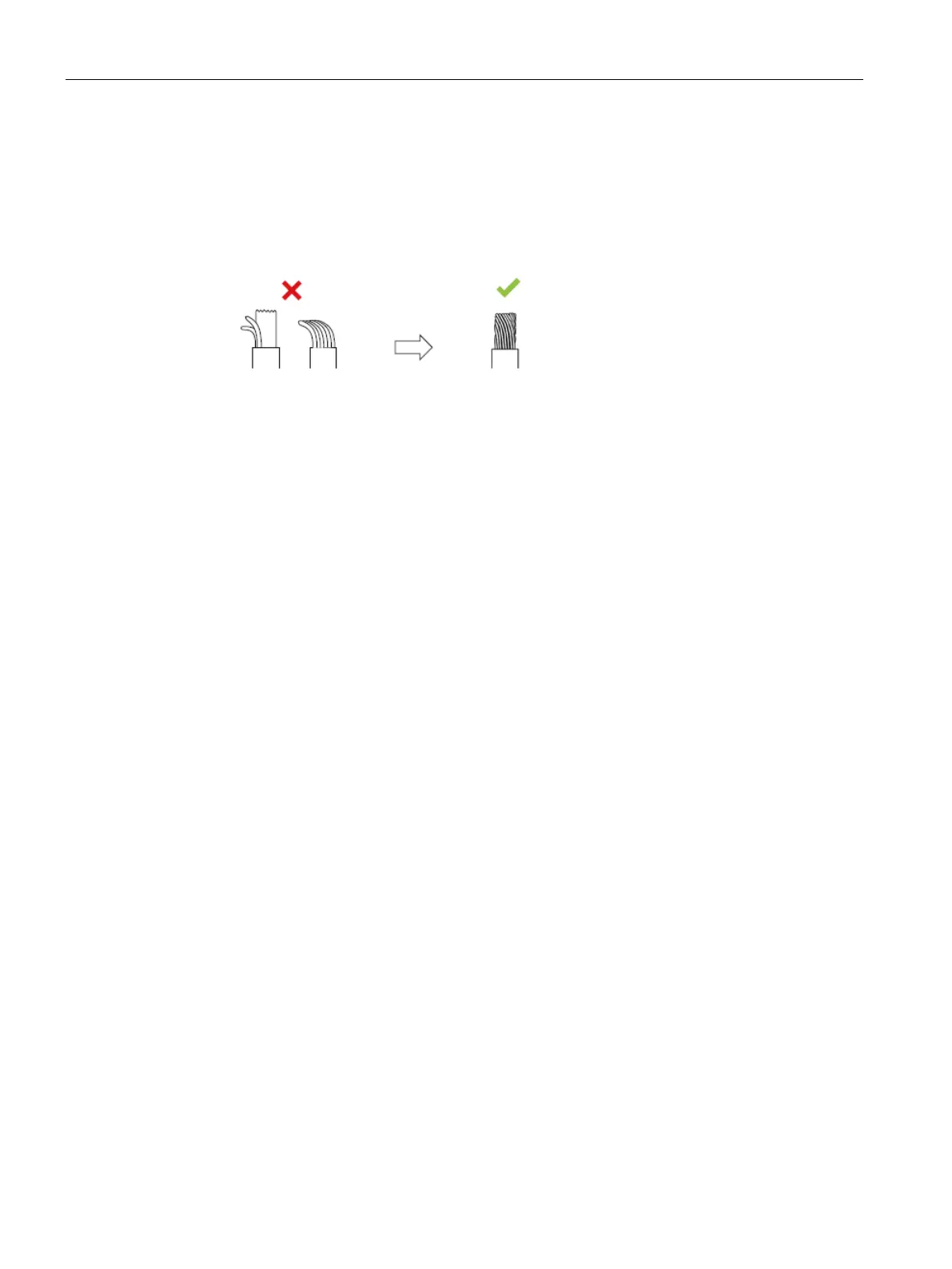

● Stripping cables
After you remove the outer sheath of the cables, make sure that all conductors are
smooth and straight.
● Processing unused pins on the connectors
To avoid the short-circuiting between the shielding wire and the unused pin on the
connector, cover all unused pins with heat-shrinkable tubes.
● Connecting cable shields
When you assemble the drive side encoder connectors, the cable shields must be
connected to the ground plate and then connected to the housing.
