Connections 02.2001 SLE / SLE-DP ā SIMOLINK Encoder
GWE-477 763 4070.76 J Siemens AG
5-4 Operating Instructions SIMOVERT MASTERDRIVES

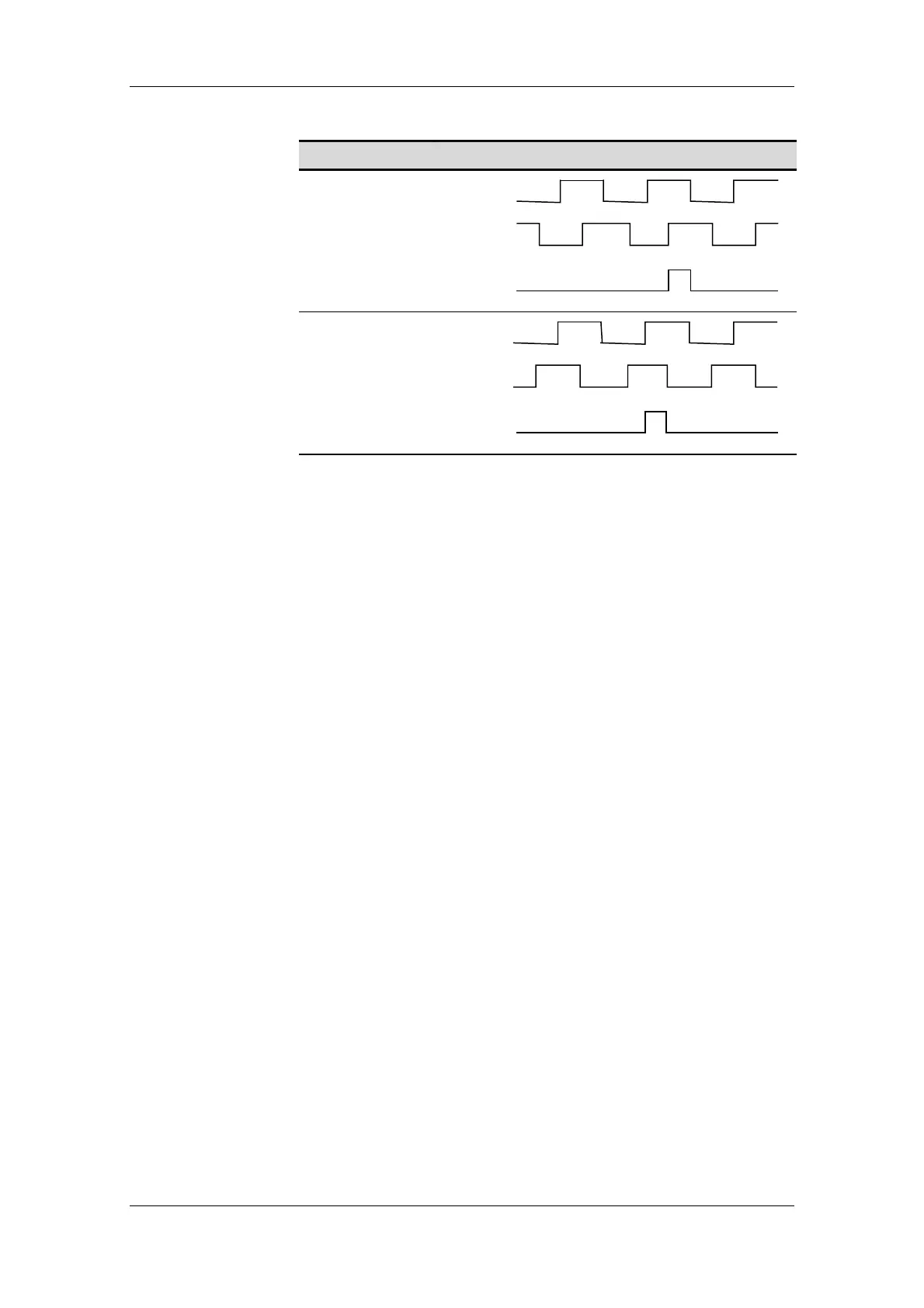

Setpoint input Signal shape at output t ā
Increasing
setpoints
(pos. rotation)
Track A
Track B
ero track
Decreasing
setpoints
(neg. rotation)
Track A
Track B
ero track
Table 5-3 Signal output on zero crossover
The number of pulses/rev of the encoder interface can be selected by
means of DIL switches on the right-hand panel (Table 6-1). The
following pulses/rev settings are available: 8192, 4096, 2048, 1024.
