Siemens SIMOVERT MASTERDRIVE SLE - PROFIBUS Interface Status (SLE-DP)

SLE / SLE-DP – SIMOLINK Encoder 02.2001 Start-Up
Siemens AG GWE-477 763 4070.76 J
SIMOVERT MASTERDRIVES Operating Instructions 6-7
An illuminated POWER LED does not necessarily confirm that the
supply voltage level is correct. The operator is responsible for ensuring
that the voltage supply remains stable within the specified limits.
6.2.2 PROFIBUS interface status (SLE-DP)
The status of the PROFIBUS interface on the SLE-DP is indicated via a
red LED on top of the housing next to the address switches.
TENS
ERROR
2
3
4
5
7
6
8

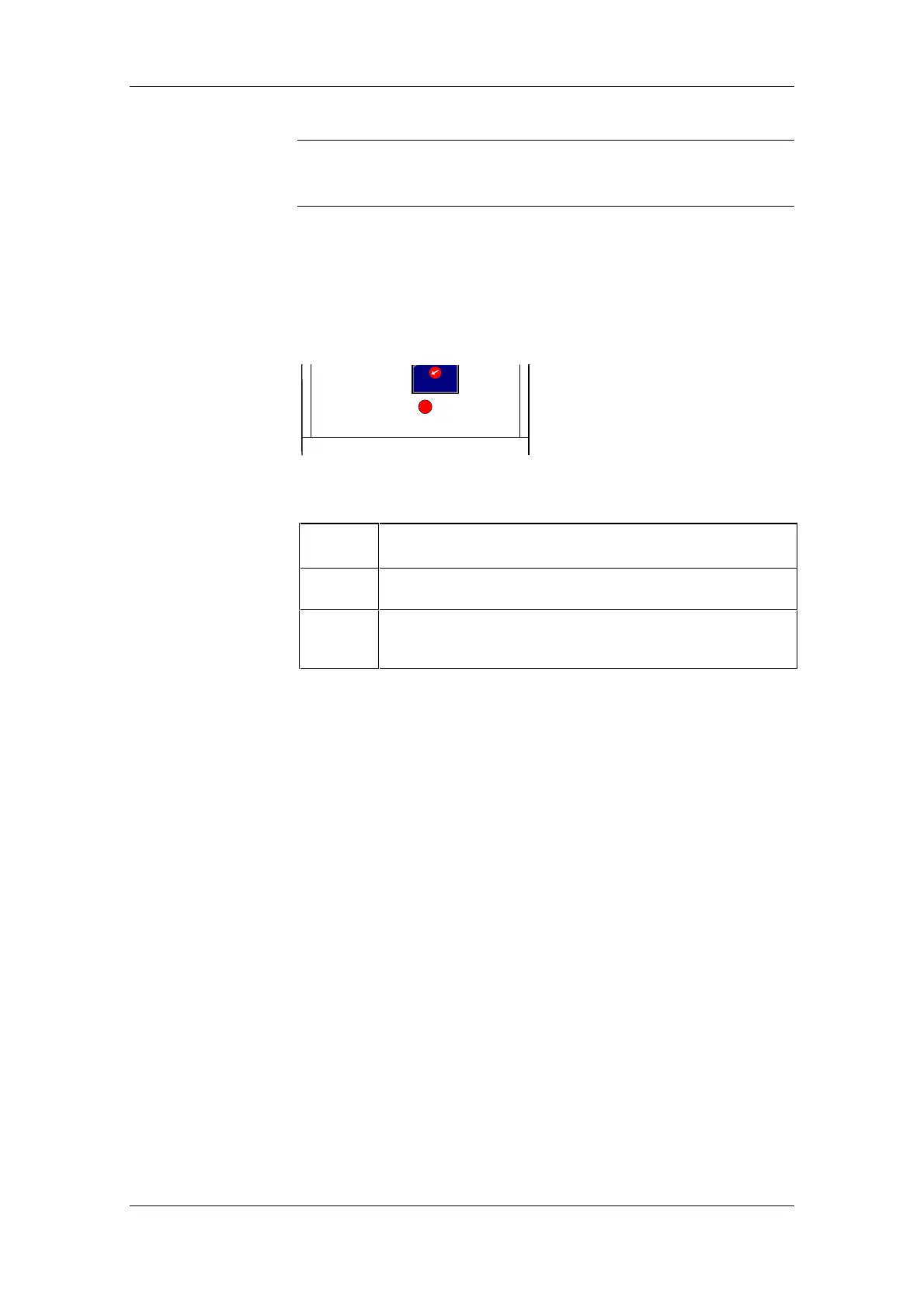

Fig. 6-3 SLE-DP; PROFIBUS display
LED
ERROR
Description

LED off:
SLE-DP is activated cyclically via the PROFIBUS
l
LED illuminated continuously:
SLE-DP is not activated via the PROFIBUS or there is a
communication error in the PROFIBUS network
Table 6-6 SLE-DP; status of PROFIBUS interface
NOTICE
