Connections 02.2001 SLE / SLE-DP – SIMOLINK Encoder
GWE-477 763 4070.76 J Siemens AG
5-6 Operating Instructions SIMOVERT MASTERDRIVES
The terminating resistors must be switched on in the first and last
nodes in the PROFIBUS line; correct setting of these resistors is
essential for error-free data transmission. The cable shield must be
connected at both ends in a 360° connection.
Bus terminator
Bus terminator
to downstream nodefrom upstream node
last nodefurther nodesfirst node

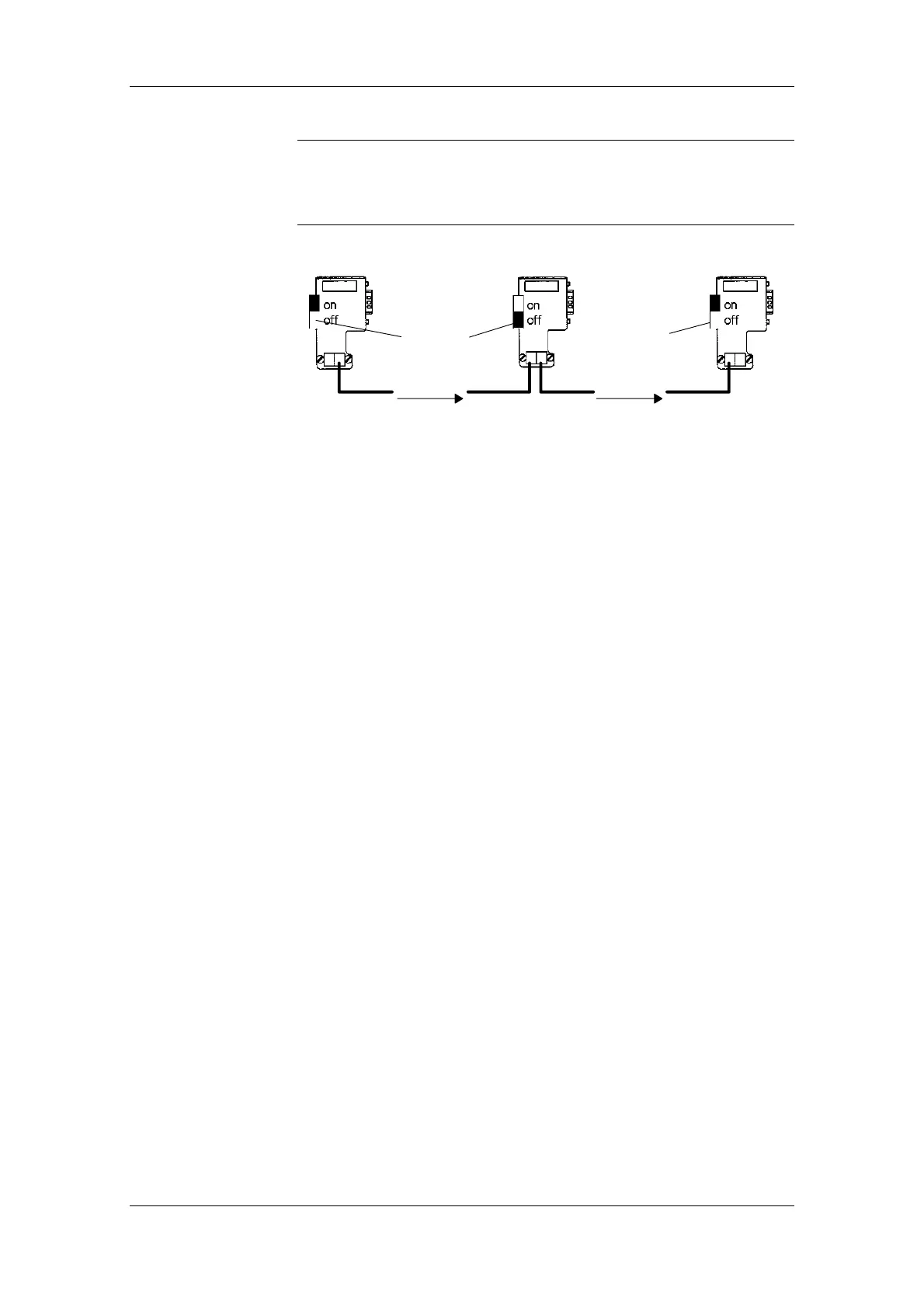

Fig. 5-4 Position of bus terminating resistors
