Siemens SINUMERIK 810D Operation/Programming

2
10.04 Operation
2.10
A
utomatic mode
2
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 2-123

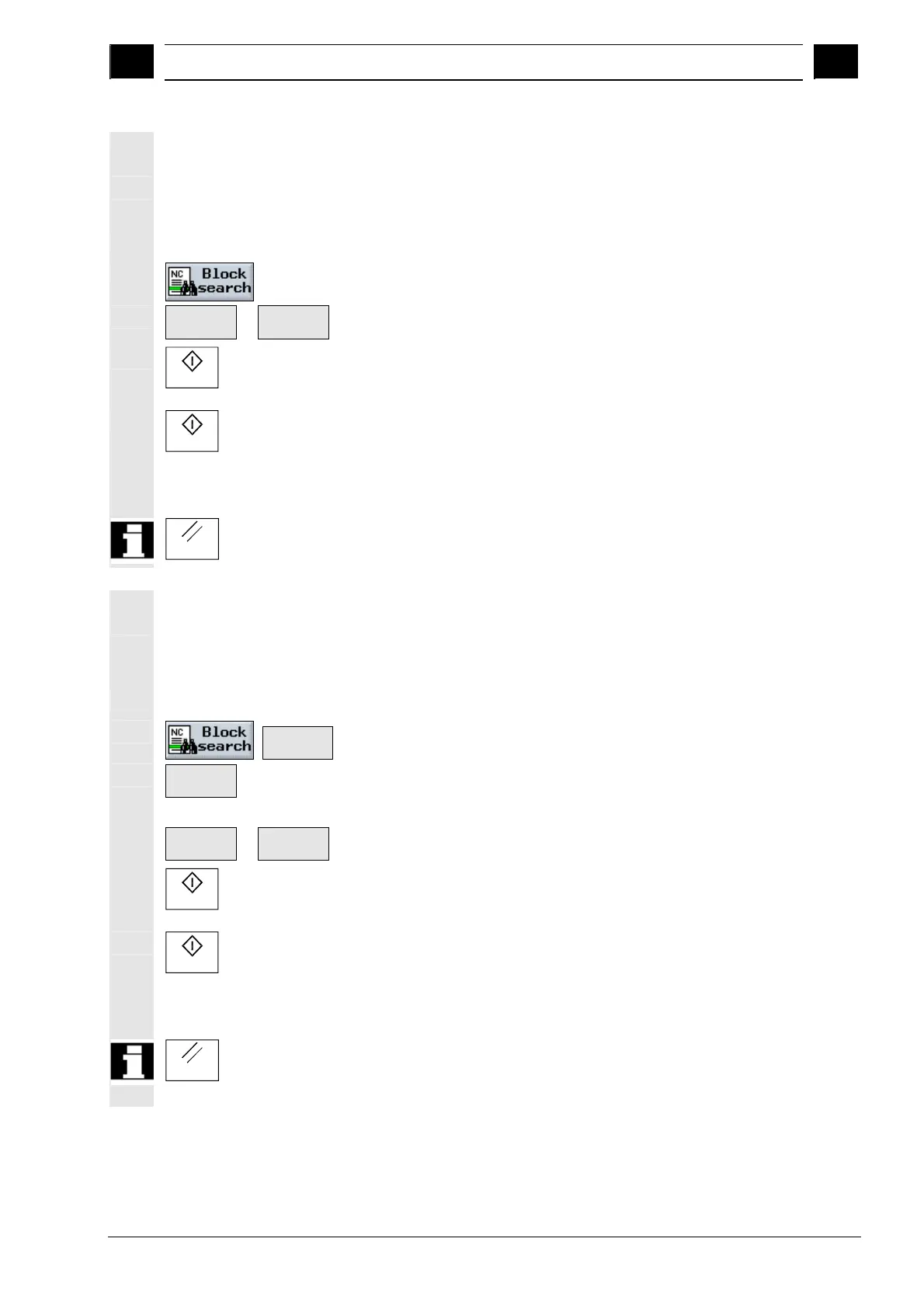

Select other ShopMill
block or G code block
Position cursor on target block
 Load a program in "Machine Auto" operating mode (see Sec.
"Selecting a program for execution").
 Position the cursor on the desired target block.
 Press the "Block search" softkey.
To
endpoint
...
External -
without cal.
 Select a calculation technique.
Cycle Start
 Press the "Cycle Start" key.
ShopMill carries out all necessary default settings.
Cycle Start
 Press the "Cycle Start" key again.
The new starting position is approached. The program executes from
the beginning or end of the target block, depending on the calculation
technique.
Reset
You can abort the search by pressing the "Reset" key.
Select point of interruption
Program execution must have been interrupted by pressing the
"Reset" key. (ShopMill automatically remembers this point of
interruption.)
 Switch back to "Machine Auto" mode.
Search
pointer
 Press the "Block search" and "Search pointer" softkeys.
Interr.
point
 Press the "Interr. point" softkey.
ShopMill inserts the saved point of interruption as the target.
To
endpoint
...
External -
without cal.
 Select a calculation technique.
Cycle Start
 Press the "Cycle Start" key.
ShopMill carries out all necessary default settings.
Cycle Start
 Press the "Cycle Start" key again.
The new starting position is approached. The program executes from
the beginning or end of the target block, depending on the calculation
technique.
Reset
You can abort the search by pressing the "Reset" key.
