Machine Operating Area 03.04
4.4 JOG mode
4
Ó Siemens AG, 2004. All rights reserved
4-128 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition
Example 1
Y
X
Approach
direction
Set "+R" with toggle key.

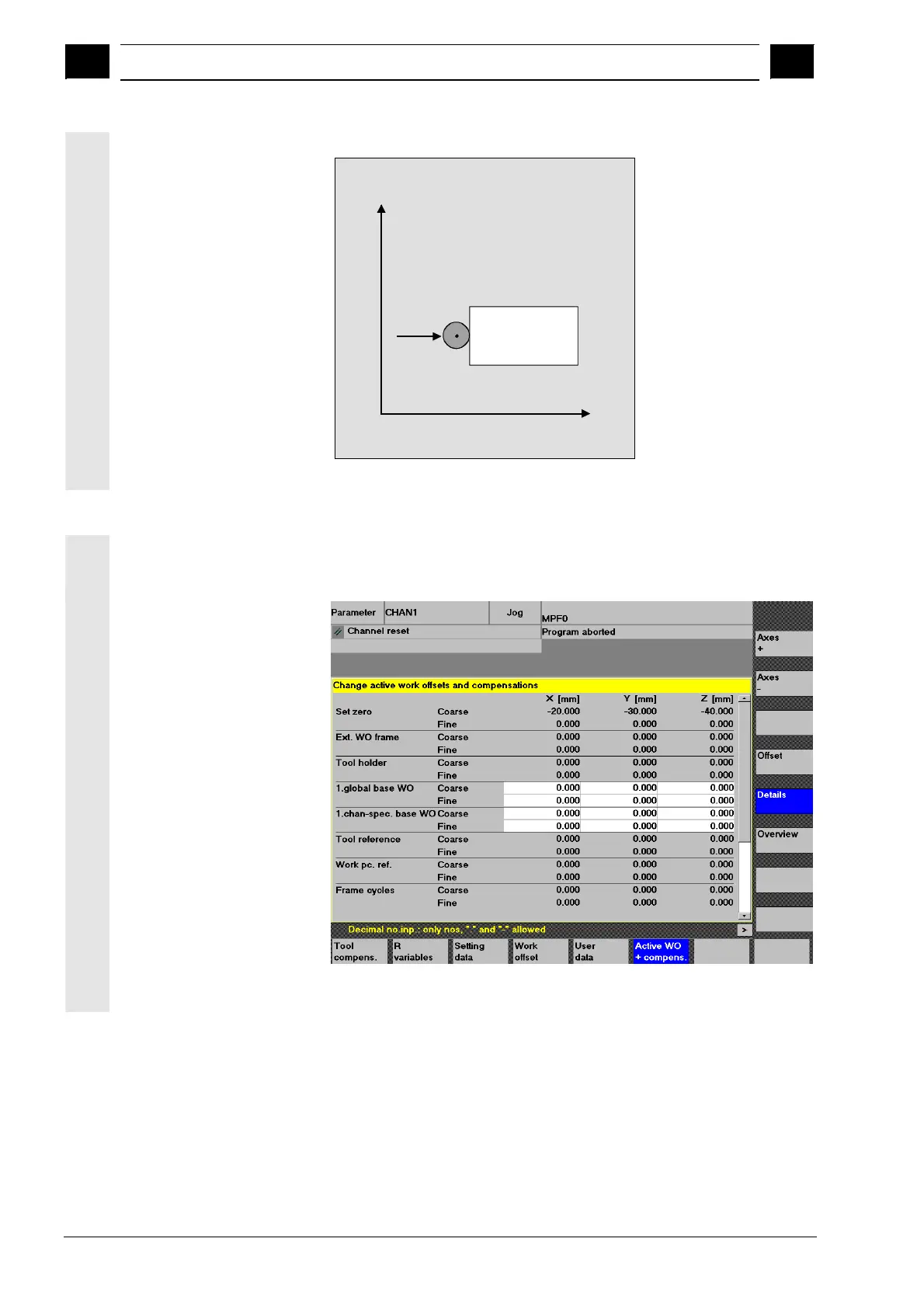

The figure below shows how system frame $P_SETFR is displayed as
the line "Set work offset".
Tool holder
If a toolholder is active in the present system, it is displayed in the G
function window as "TCARR=n" (n = 1 or 2).
