Siemens SINUMERIK 810D User Manual

5
"Parameters" Operating Area 03.04
5.1 Tool data
5
Ó Siemens AG, 2004. All rights reserved
5-168 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition
Tool types
Tool type classification:
· Group type 1xy (milling tools):
100 Cutter to CLDATA
110 Ball-end cylindrical die-sinking cutter
111 Ball-end tapered die-sinking cutter
120 End mill (without corner rounding)
121 End mill (with corner rounding)
130 Angle head cutter (without corner rounding)
131 Angle head cutter (with corner rounding)
140 Facing tool
145 Thread cutter
150 Side mill
151 Saw
155 Bevel cutter
156 Bevel cutter with rounding
157 Tapered die-sinking cutter
160 Drill and thread milling cutter

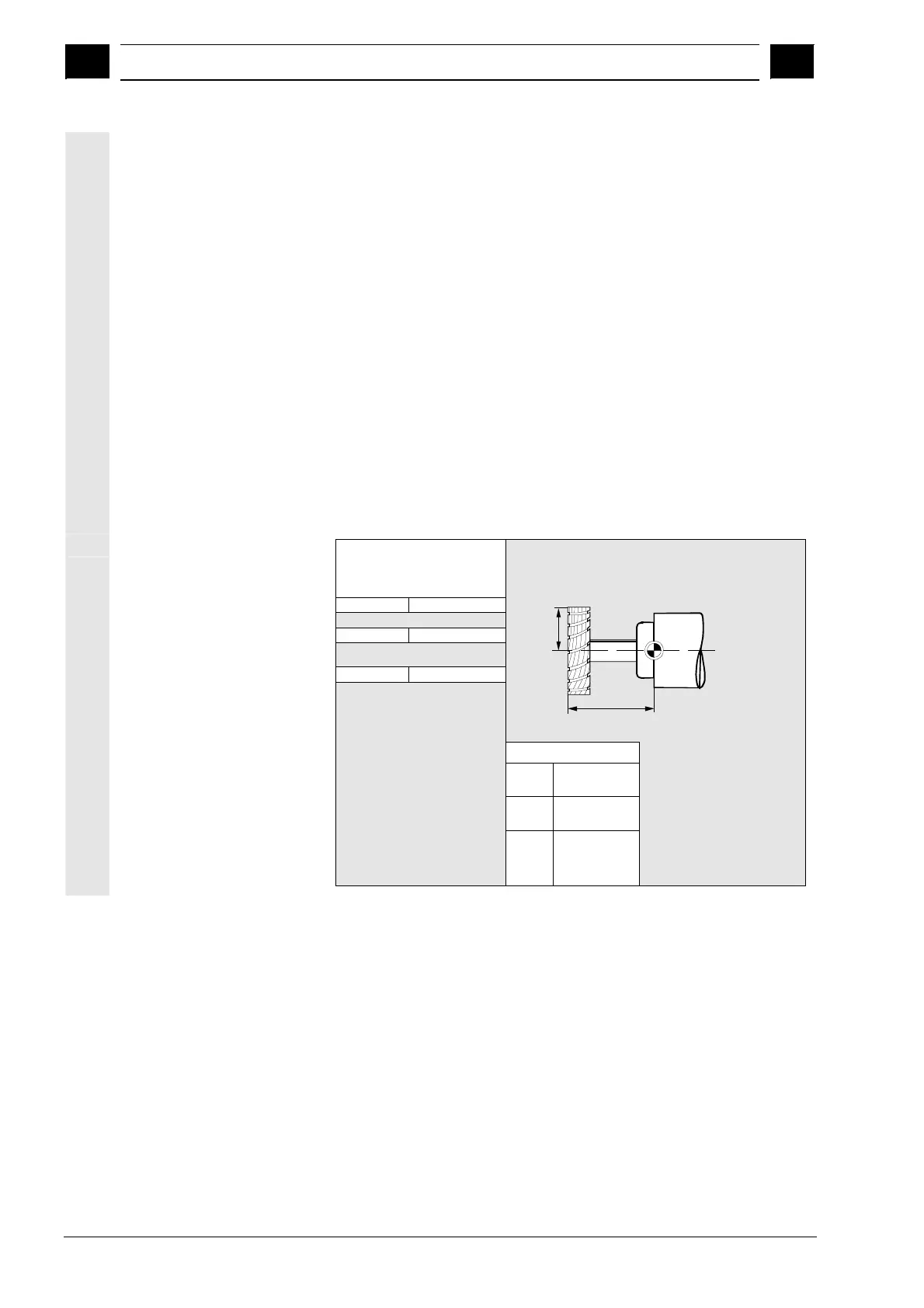

Required offset values
for a milling cutter
F
Effect
G17:
G18:
Length 1 in Z
Radius in X/Y
Length
1 in Y
Radius in Z/X
Length1 in X
Radius in Y/Z
G19:
Wear values
according to
requirement
Other values must
be set to zero
Entries in
tool parameters
DP3
DP6
Length 1
Radius
DP1
1xy
F - Toolholder
reference point
Radius
Length 1
