5

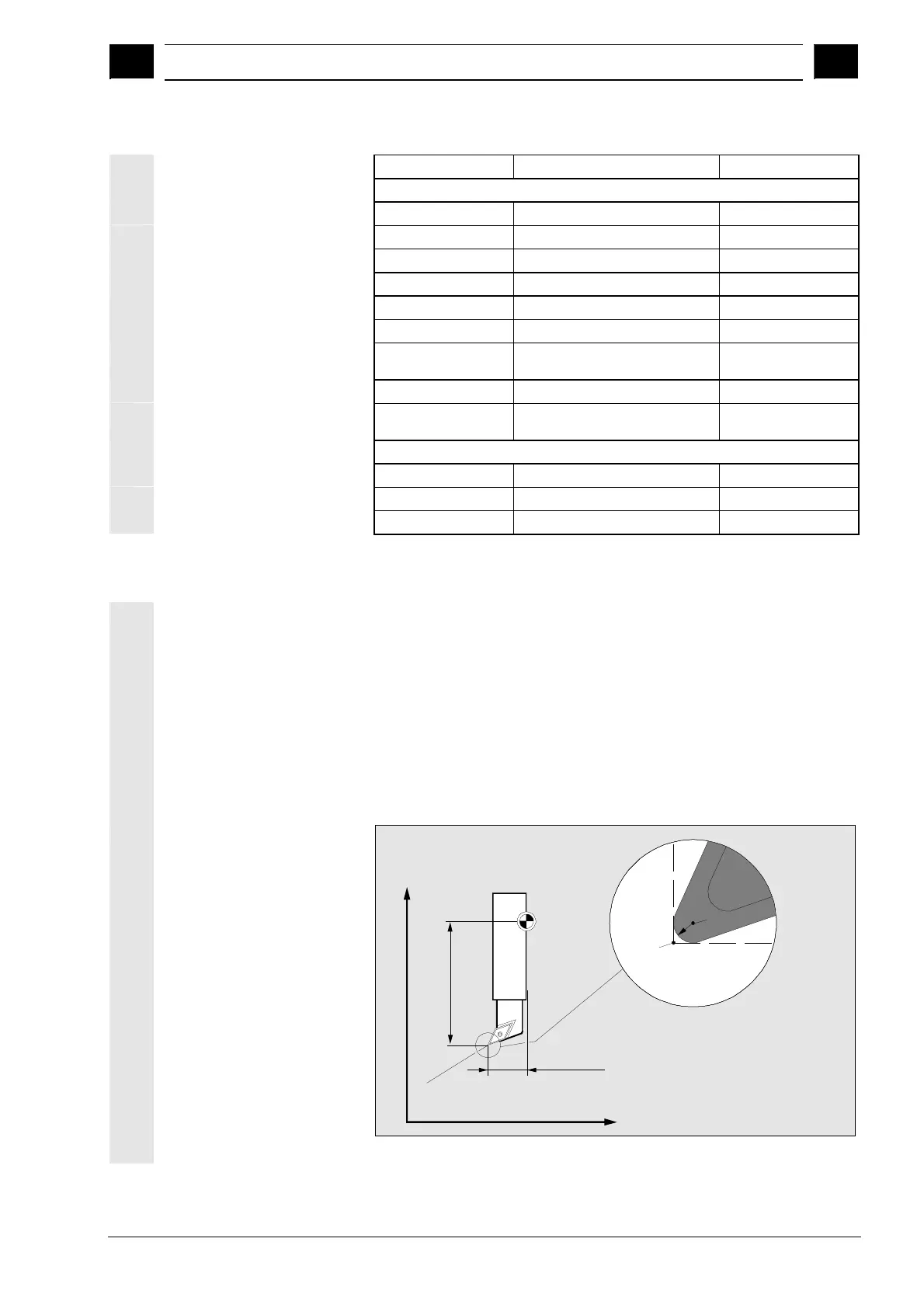

03.04 "Parameters" Operating Area
5.1 Tool data
5
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 5-173
Assignment of
Parameters Meaning Data type
tool-specific
Tool-specific parameters
parameters
$TC_TPG1 Spindle number Integer
$TC_TPG2 Chaining rule Integer
$TC_TPG3 Minimum wheel radius Real
$TC_TPG4 Minimum wheel width Real
$TC_TPG5 Current wheel width Real
$TC_TPG6 Maximum speed Real
$TC_TPG7 Maximum
peripheral speed
Real
$TC_TPG8 Angle of inclined wheel Real
$TC_TPG9 Parameter number for
radius calculation
Integer
Additional parameters
$TC_TPC1 Angle of inclined wheel Real
up to
$TC_TPC10 Real
· Group type 5xy (turning tools):
500 Roughing tool
510 Finishing tool
520 Plunge cutter
530 Parting tool
540 Threading tool
550 Steel profile
560 Rotary drill (ECOCUT)
580 Oriented probe
Required offset values
for a turning tool with
tool radius
compensation
Z
X
F
R
S
P
Turning tool
e.g. G18: Z/X plane
F: Toolholder reference point
Length 2 (Z)
Tool tip P
(Cutting edge 1 = D
n)
Length 1 (X)
R: Tool nose radius (tool radius)
S: Tool nose center position
