5.1 Tool data
5
Ó Siemens AG, 2004. All rights reserved
5-172 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition

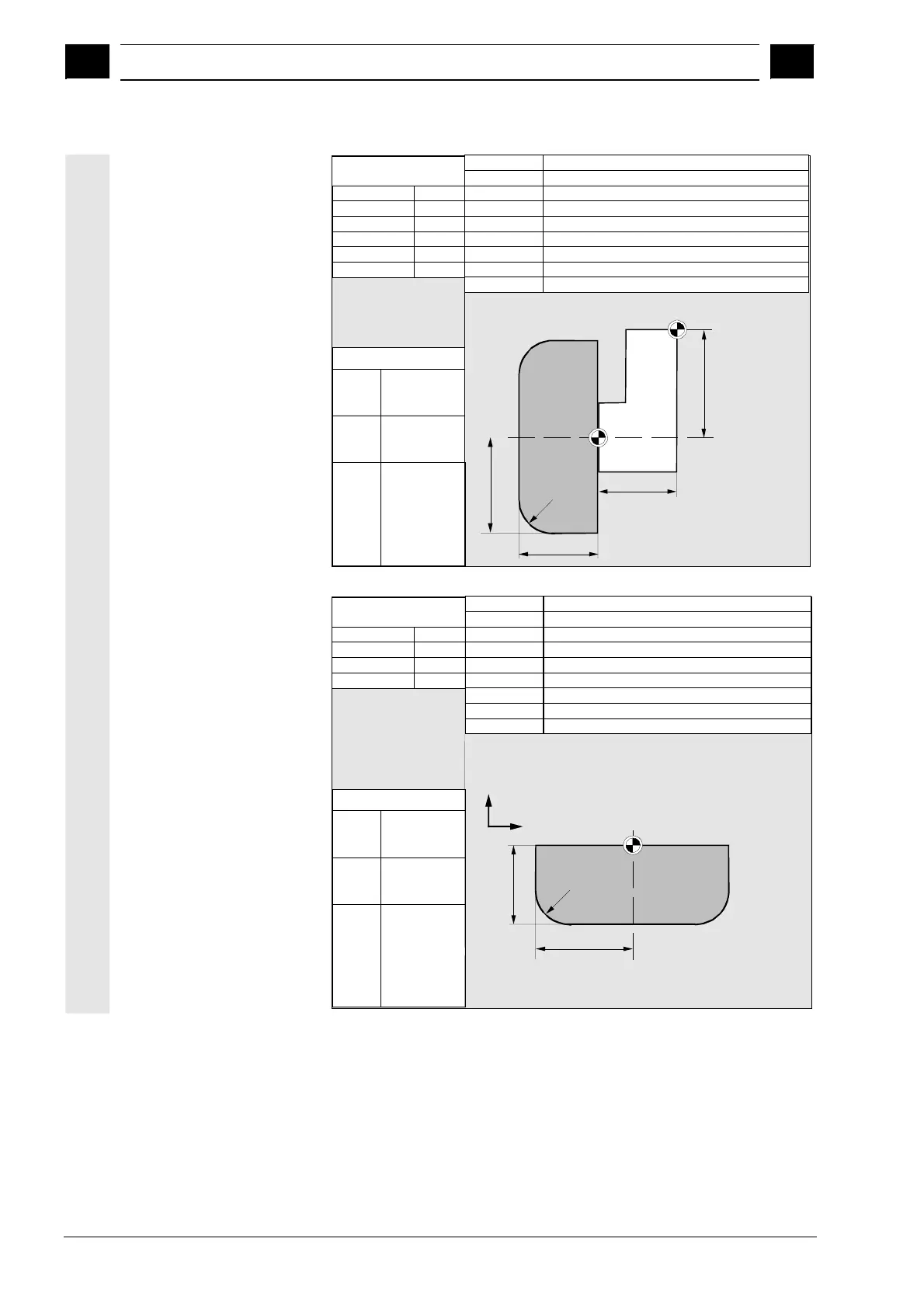

Required offset values of
a surface grinding wheel
without base dimension
for GWPS
Entries in
tool parameters
STC_DP1
STC_DP3
STC_DP4
STC_DP6
403
Length 1
Length 2
Radius
STC_TPG1
STC_TPG2
STC_TPG4
STC_TPG5
STC_TPG6
STC_TPG7
STC_TPG8
STC_TPG3
STC_TPG9
Spindle number
Chaining rule
Minimum wheel radius
Minimum wheel width
Current wheel width
Maximum speed
Max. surface speed
Angle of the inclined wheel
Parameter no. for radius calculation
Wear values according
to requirement
Other values must
be set to zero
Effect
G17:
G18:
G19:
Length 1 in Y
Length 2 in X
Radius in X/Y
Length 1 in X
Length 2 in Z
Radius in Z/X
Length 1 in Z
Length2 in Y
Radius in Y/Z
F: Toolholder reference point
F'
F
Base Length 1
Base
Length 2
Geometry
Length
1
Geometry
Length 2
Radius
STC_DP21
STC_DP22
L1 base
L2 base
Required offset values of a
facing wheel with
monitoring parameters
Entries in
tool parameters
STC_DP1
STC_DP3
STC_DP4
STC_DP6
403
Length 1
Length 2
Radius
STC_TPG1
STC_TPG2
STC_TPG4
STC_TPG5
STC_TPG6
STC_TPG7
STC_TPG8
STC_TPG3
STC_TPG9
Spindle number
Chaining rue
Minimum wheel radius
Minimum wheel width
Current wheel width
Maximum speed
Max. surface speed
Angle of the inclined wheel
Parameter no. for radius calculation
Wear values according
to requirement
Other values must
be set to zero
Effect
G17:
G18:
G19:
Length 1 in Y
Length 2 in X
Radius in X/Y
Length 1 in X
Length 2 in Z
Radius in Z/X
Length 1 in Z
Length 2 in Y
Radius in Y/Z
F: Toolholder reference point
F
Z
X
Radius
Length
1 (X)
Length 2 (Z)
e.g.
G18: Z/X plane
