"Program" Operating Area 03.04
6.9 Pro
g
ram simulation
6
Ó Siemens AG, 2004. All rights reserved
6-320 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition

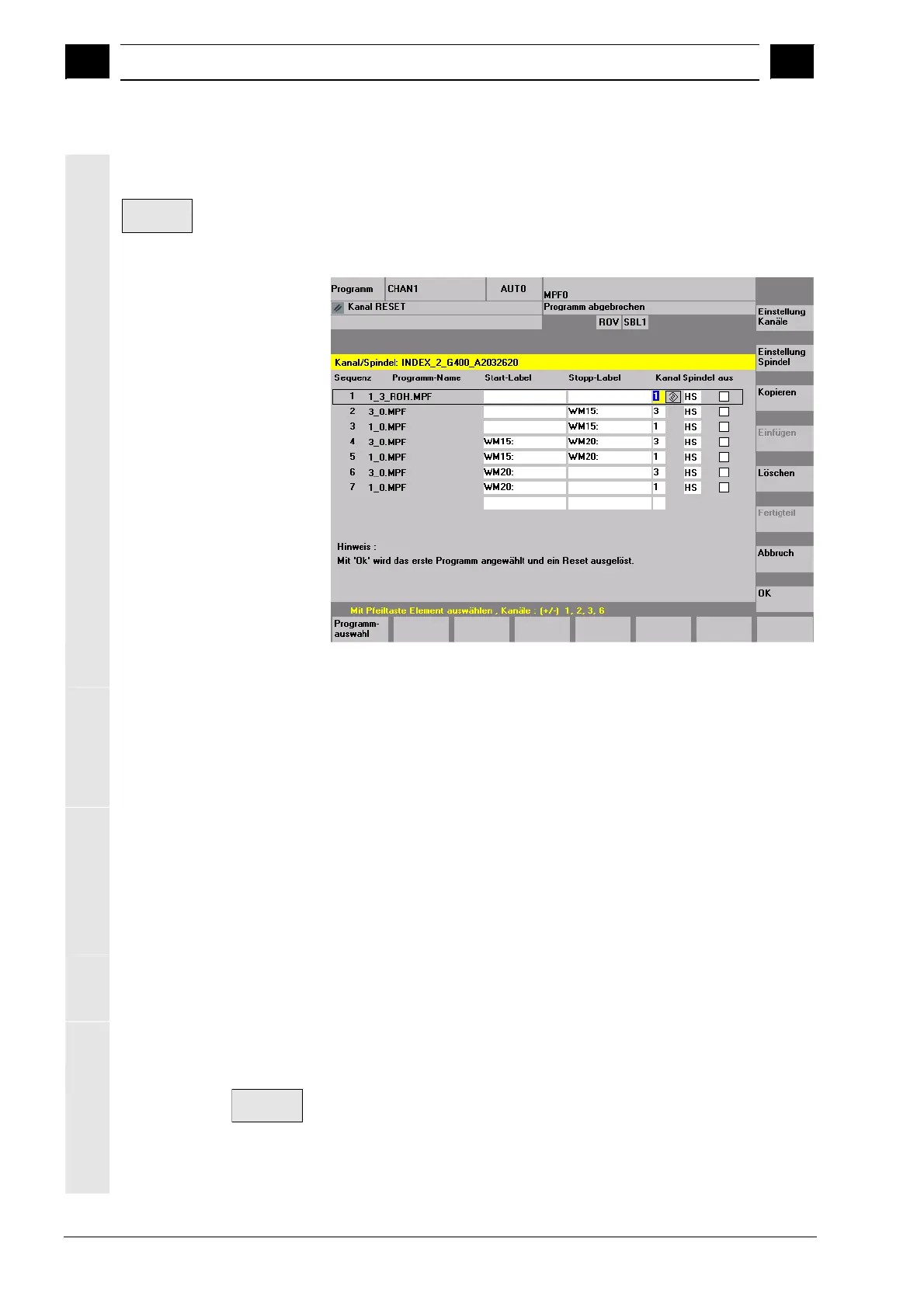

Menu "Channel/spindle"
vertical
Channel/
spindle
Can be accessed from RESET or STOP status only.
The screen shows the current execution list for the selected part
programs.
Sequence
Simulation sequence of programs
Program name
List of programs
Start label
Path label from which a program is simulated. If this is not specified,
simulation takes place from program start.
Stop label
Path label up to which a program is simulated. If this is not specified,
simulation takes place to program end.
(See also "Multi-channel, section by section program simulation".)
Channel
Processing channel in the SIMNCK interpreter
Spindle
Turning: MS main spindle, CS counterspindle, var variable controlled
via NC vocabulary word.
(Milling: currently unused)
Skip
Skip. The designated section/program is not simulated in the current
session.
Channel
settings
Milling
Leads to the manufacturer-specific channel settings (subject to correct
password).
Constant machine arrangement
