Operator Components/Sequence of Operations 03.04
2.2 O
p
erator
p
anel ke
y
s
2
Ó Siemens AG, 2004. All rights reserved
2-36 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition

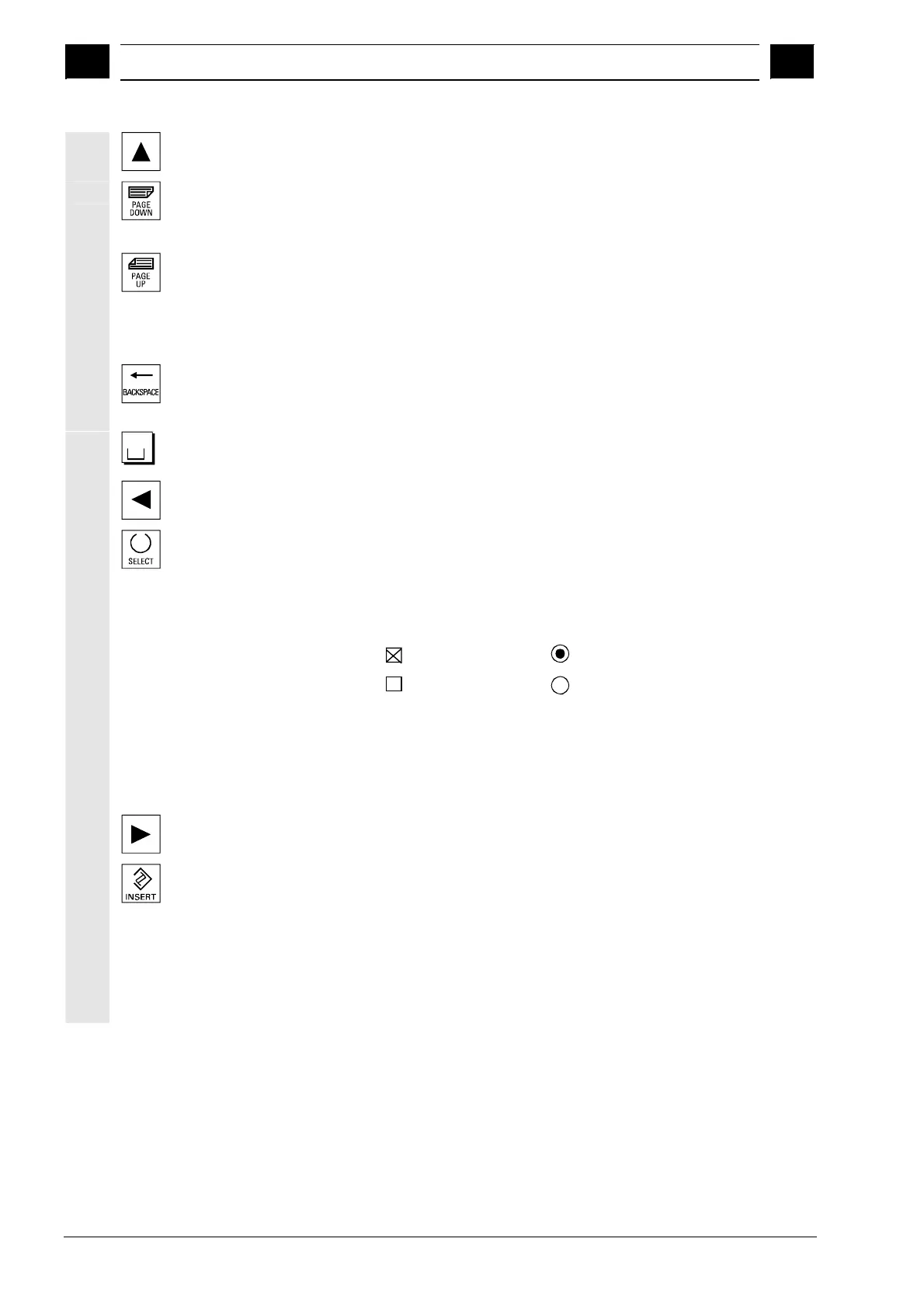

Cursor up
Page down (PAGE DOWN)
You "page" down by one display.
In a part program, you can "page" the display down (to end of
program) or up (see below) (to start of program).
With the page keys you scroll the visible/displayed area of the
window that is active. The scroll bar indicates which part of
the program/document/... is selected.
Delete key (Backspace)
Delete characters from right
Space
Cursor to the left
Toggle key
· Selection key for values set in input fields and selection
lists labeled with this key symbol.
· Activate/deactivate a field:
= active
= not active
Multiple selection button
(you can select several
options or none)
= active
= not active
Single selection button/option
(only one option can be active
at a time)
Cursor to the right
Edit key/Undo key
· Switch over to edit mode in tables and input fields (in this
case the input field is in insert mode) or
· UNDO function on table elements and input fields (the
value is not validated when you exit a field using the edit
key; instead it is reset the to the previous value = UNDO).
