03.04 Operator Components/Sequence of Operations
2.6 General se
q
uence of o
p
eration
2
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 2-67

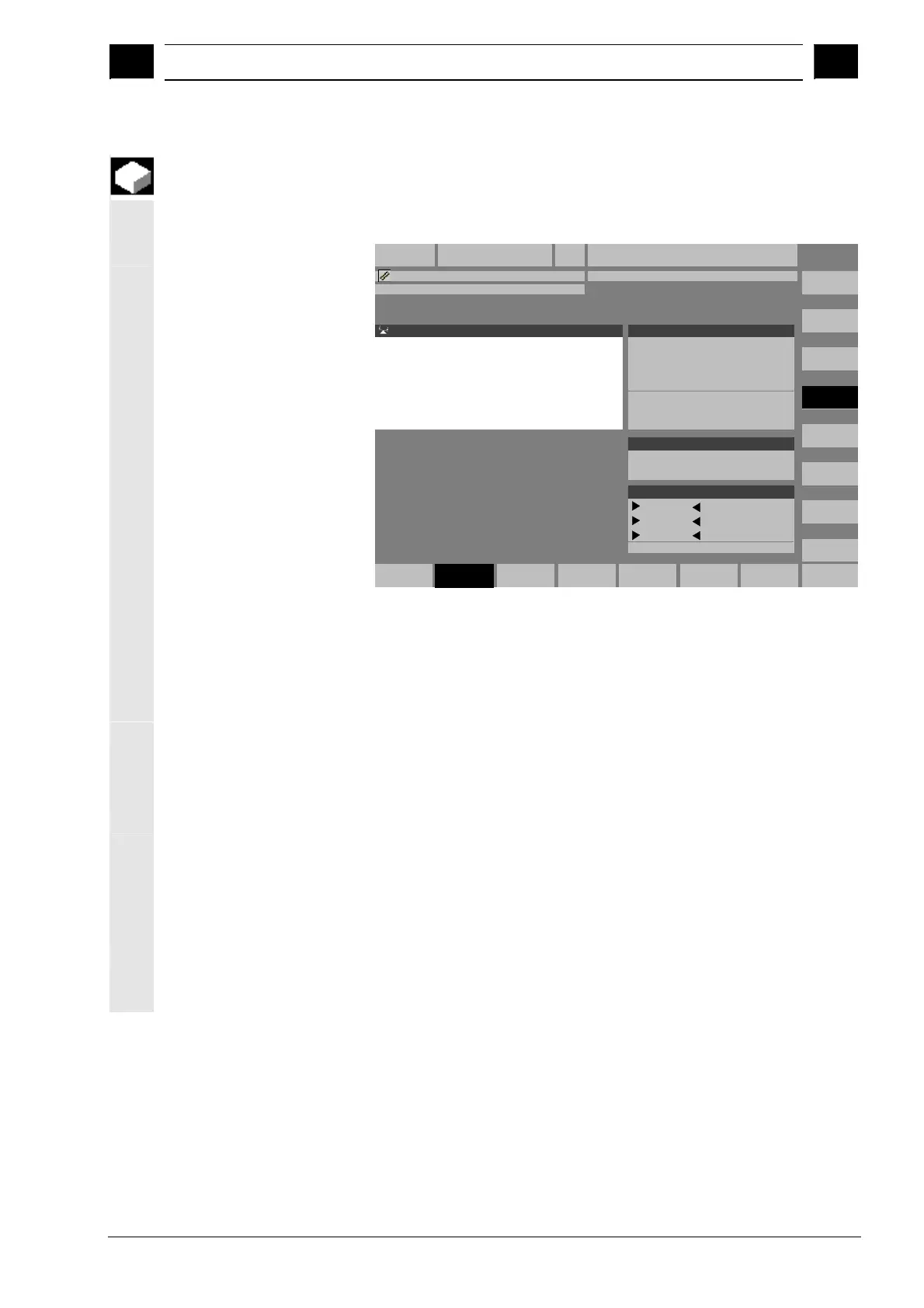

Function
You can set up a link in any operating area between the HMI unit and
the connected NCU/PLC units via the operator interface.
Machine
Channel Reset
Program aborted
Jog
MCS Position
+ X 900.000 mm 0.000
- Y -156.000 mm 0.000
+ Z 230.000 mm 0.000
Auxiliary Functions
M0
M0
M0
H0.000000
H0.000000
H0.000000
M0
M0
+ X 900.000 mm
- Y -156.000 mm
+ Z 230.000 mm
Feedrate mm/min
Act. 3000.000 0.0 %
Set. 3000.000
Channel 11
MIILL1
Tool
T0 D0
T0 D0
T0 D0
G1
.
.
.
Channel 12
Channel 13
Channel 14
Channel 15
MIILL2
Activate the channel changeover key. The currently existing
connection is displayed by means of the highlighted softkeys
(horizontal, vertical) if the channel menu is active.
Channel switchover
You can change to other channels by means of the vertically arranged
softkeys.
Group switchover
Use the horizontal softkeys to change over to a different group; the
channels of the current group are now displayed on the vertical
softkeys. Switchover to another channel (and if necessary to another
NC) only takes place upon activation of a vertical softkey.
NC switchover
You can change to another NC via the vertical softkeys if the channel
is not on the current NC.
