Siemens SINUMERIK 840D Operator's Guide

5
"Parameters" Operating Area 03.04
5.2 Tool offsets
5
Ó Siemens AG, 2004. All rights reserved
5-188 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition
5.2.6 Delete cutting edge
Function
You can delete one or several edges of a tool. The tool list is updated
automatically.
Delete
Delete
edge
Select the edge of a tool, press softkey "Delete" and then softkey
"Delete edge".

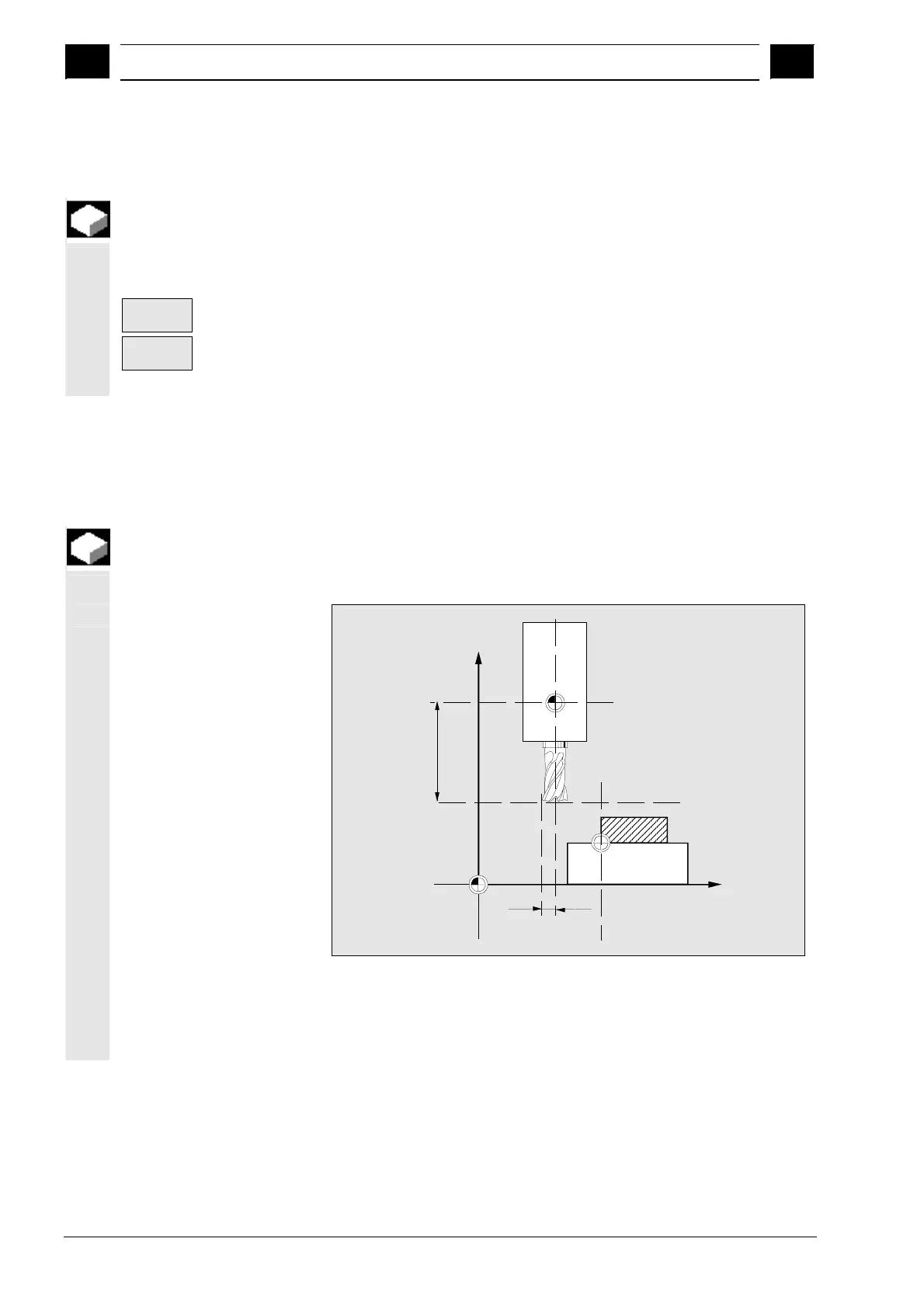

5.2.7 Determine tool offsets
Function
The "Determine tool offsets" function allows you to change the
reference values of different axes and then to calculate them.
X
Z
P
R
W
M
TO
T
O
TO Tool offset, absolute dimension
R Tool mounting point
M Machine reference point
W Workpiece zero

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
