03.04 "Program" Operating Area
6.7 Pro
g
ram relationshi
p
in the dual editor
(
from SW 6.4
)
6
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 6-303
6.7.3 Synchronized display in the dual-step editor
Synchronized display
Find/Go
to...

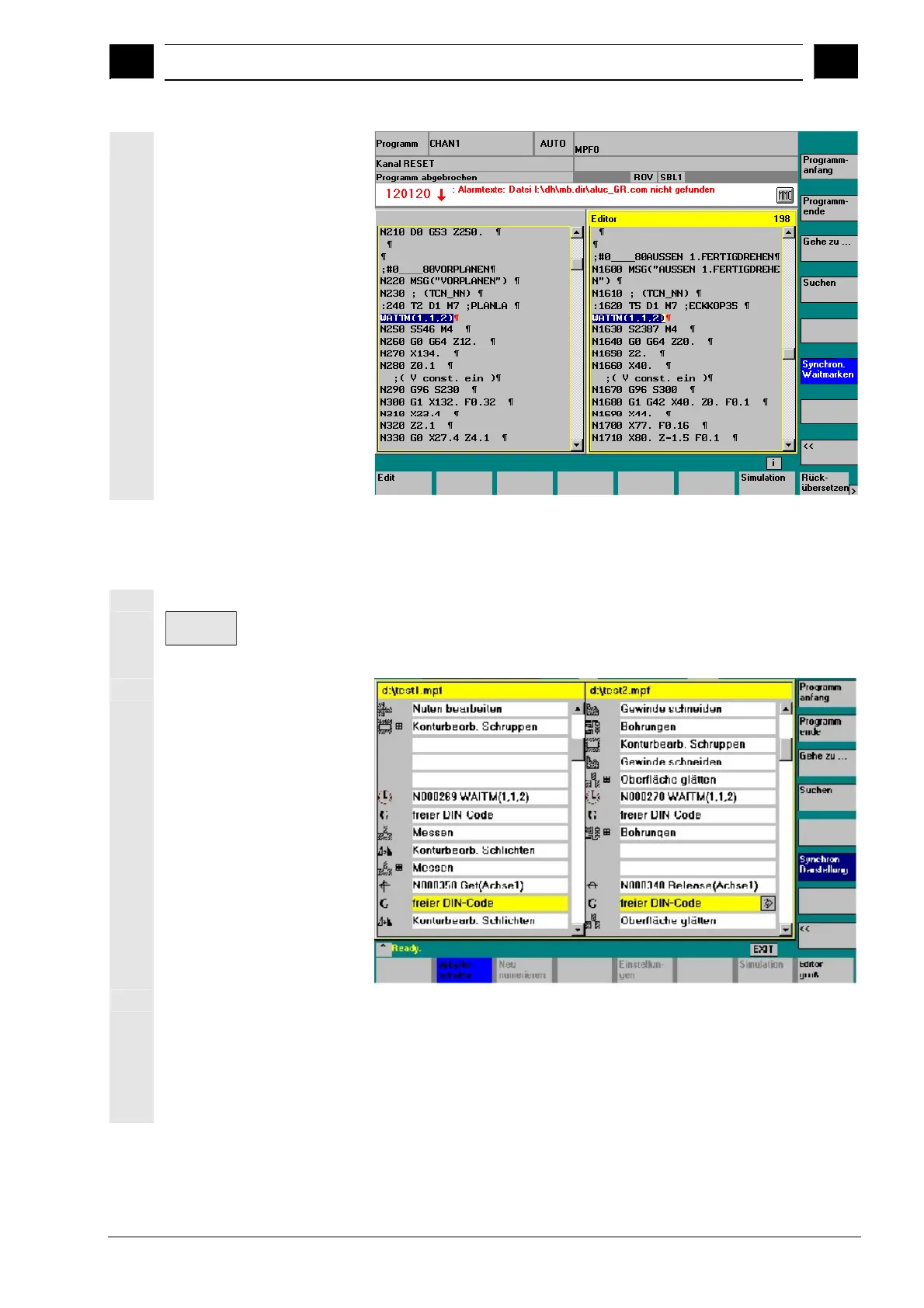

Here two programs are loaded in the step editor and displayed side by
side. Both these programs are searched for synchronization points,
and the points are displayed at the same level.
All sychronization marks that are to be synchronized in the step
display must be stored in a SEDITOR.INI file.
In the standard file SEDITOR.INI (directory \hmi_adv) the entries for
the standard wait markers are already specified in the section
SyncMarks_Siemens.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
