03.04 Introduction
1.1 The SINUMERIK 840D/810D s
stem
1
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 1-23
Operating areas

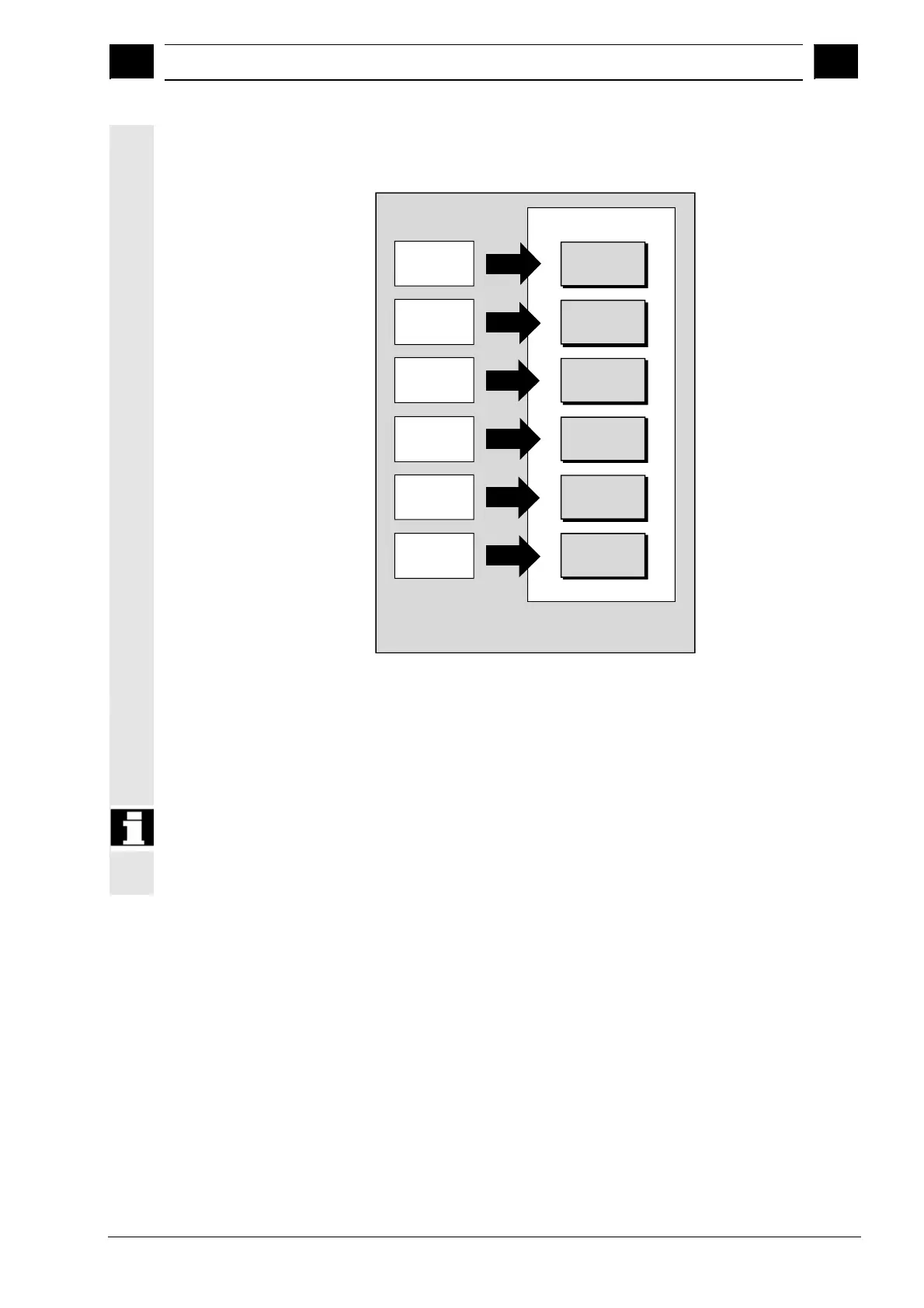

Basic functions are grouped to form the following operating areas in
the control (on gray background):
Operating areas
MACHINE
PROGRAM
SERVICES
DIAGNOSIS
START-UP
PARAMETERS
Execution
of part programs,
manual control
Development
and adaptation
of part programs
Reading in/out
and archiving
programs and data
Alarm displays,
service displays
Adaptation of NC
data to machine,
system settings
Editing data
for programs/
tool management
The user can call up all the functions via the user interface.
The user interface consists of:
· Display components such as screen, LEDs
· Control elements such as keys, switches, handwheels
Read Chapter 2 "Operator Components" carefully before proceeding
with further chapters.
All subsequent chapters are written on the assumption that you have
done so!
