Siemens SINUMERIK 840D

5
03.04 "Parameters" Operating Area
5.3 Tool mana
g
ement
5
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 5-207
Symbols
/
The G56 reset value is TOWWCS
/ and
$SC_WEAR_TRANSFORM is set.

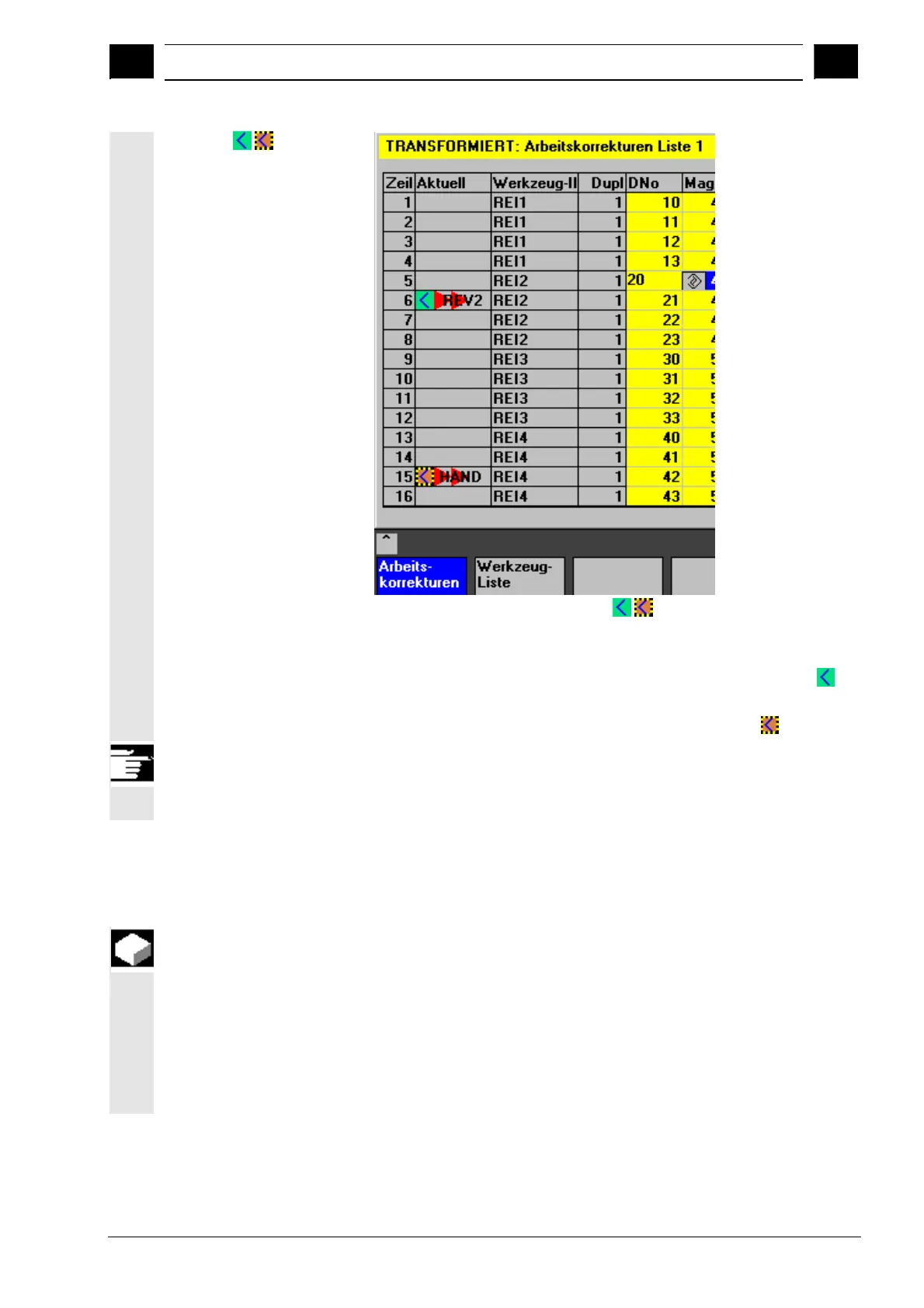

The current tool for channel "REV2" is indicated in row 6. The current
value of G56 on channel "REV2" is the same as the reset value (
).
Row 15 displays the current tool for channel "HAND". Here, the
current value of G56 deviates from the G56 reset value (
).
Other information
Additional information can be found in
/FBW/, Description of Functions Tool Management
5.3.4 Grinding parameters extension in SW 6.2 or later
Function
If the selected tool is a grinding tool, a vertical softkey 6 "Grinding
data" is provided in the following:
· Tool details basic screen
· Tool details cutting edge data (secondary) screen
· Tool details monitoring data (secondary) screen
