8
03.04 "Diagnosis" Operating Area
8.4 PLC status
8
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 8-429

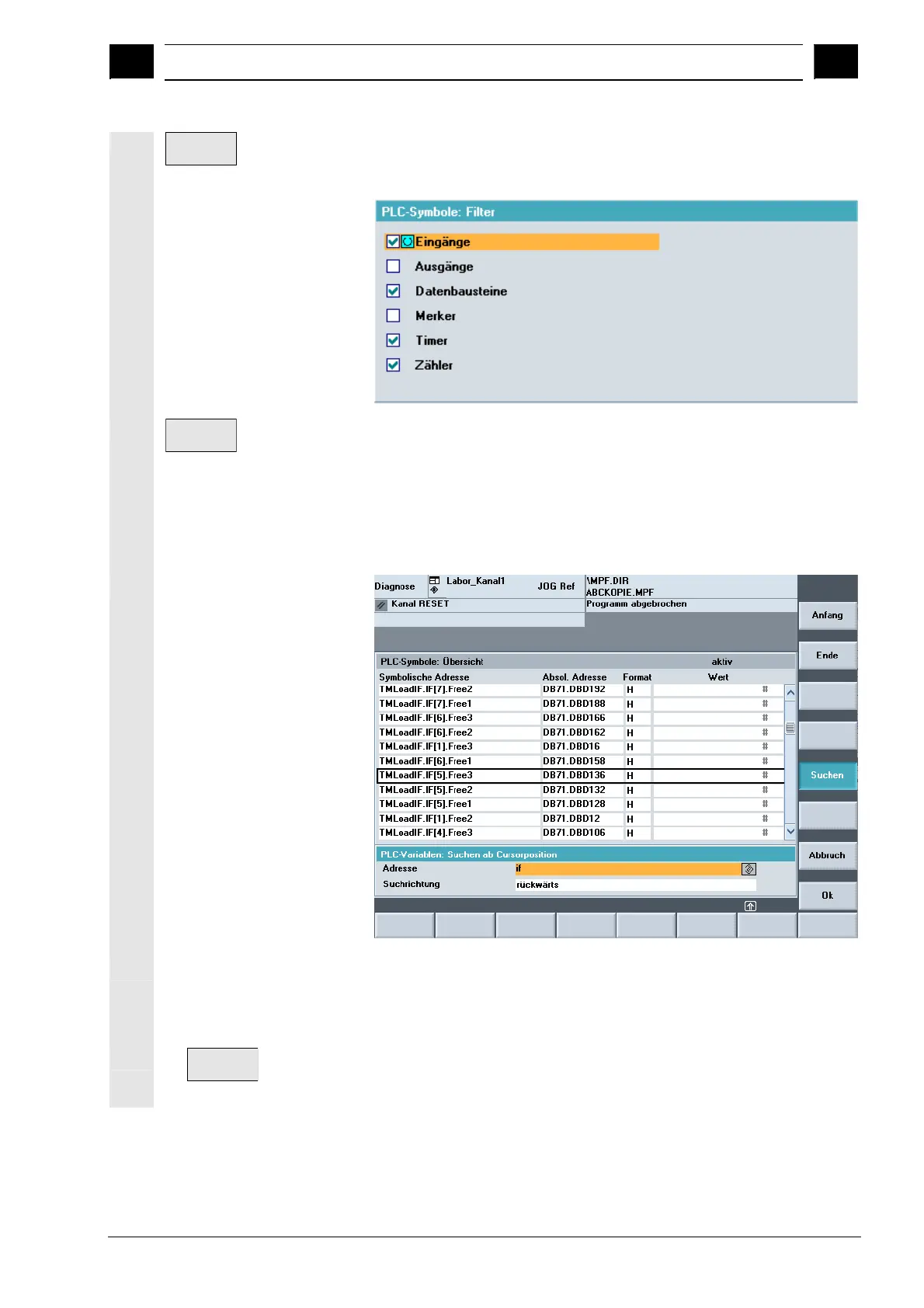

Filter
Select the categories of symbols/addresses that you want to display.
Press OK to activate the filter. Filters are retained after you exit
screens/operating areas and after reboot.
Find/
go to...
After entering a search term and search direction, the section of the
table is displayed with the focus on the symbol/absolute address if it
was found.
The search is performed in the following sequence: absolute
addresses, symbols.
When you enter the search term in the "Address" field, take care to
enter the correct notation. Press OK to start the search.
If the search term is not found, the dialog box remains open for a new
search. After you change screens, the search term and search
direction are retained in the dialog box.
Start
Press this softkey to jump to the beginning of the symbol table.
