Siemens SINUMERIK 840D Operator's Guide

8
03.04 "Diagnosis" Operating Area
8.4 PLC status
8
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 8-431

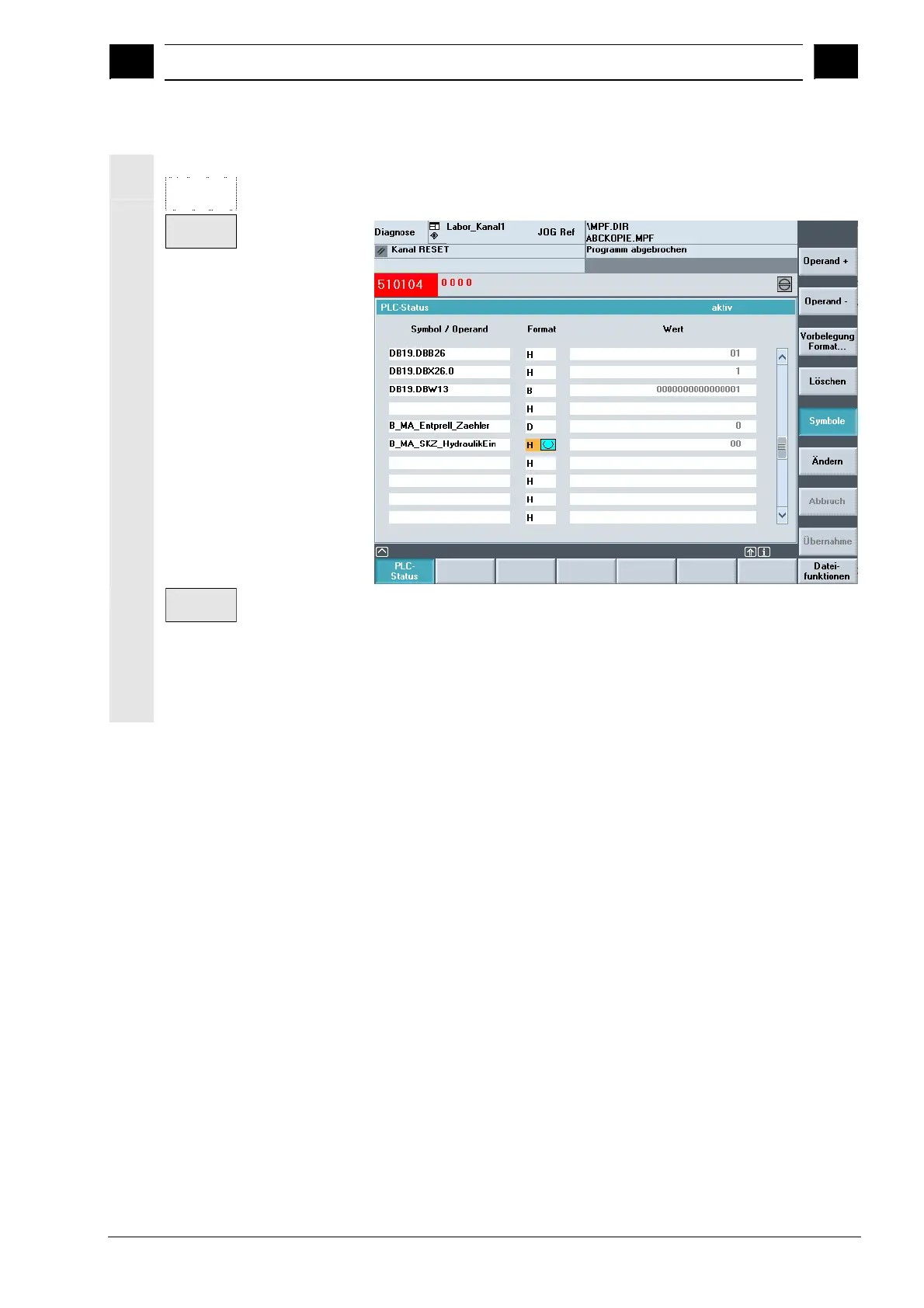

Symbols in the status screen
Diagnosis
PLC status
If the above mentioned requirements are met, the additional "Symbol"
softkey is displayed in the PLC status screen.
Symbols
You can use the softkey to switch between absolute addresses and
symbols for inputs and display in the status screen.
If a symbol is selected, the softkeys "Operand+" and "Operand-"
defined for absolute addresses are not available.
Otherwise, the above description for PLC status also applies to the
status screen.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
