Connection
6.3 Connecting the push-in terminals
SIRIUS 3RM1 motor starter
116 Manual, 06/2016, A5E0345285095020A/RS-AE/005

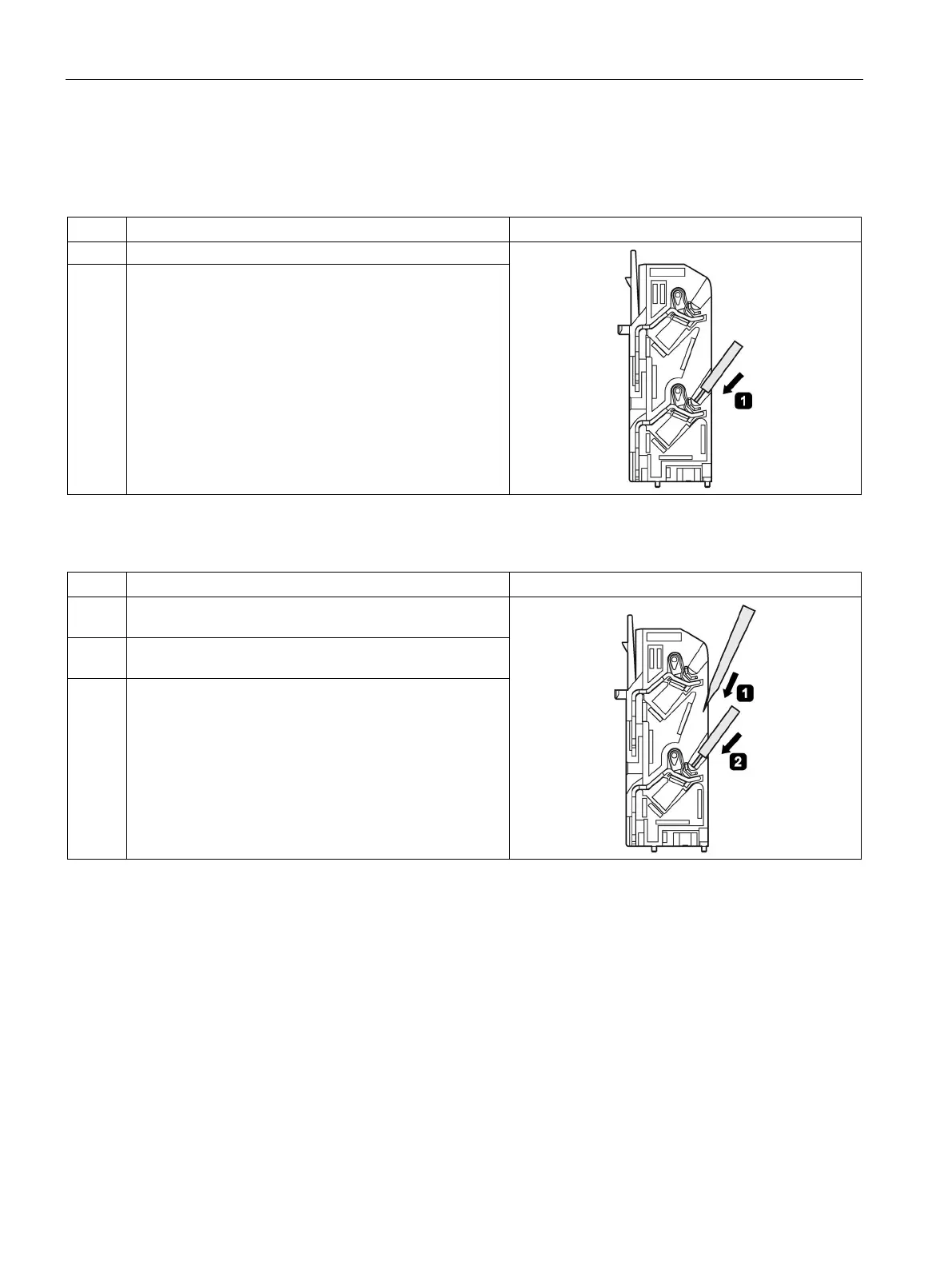

Table 6- 1 Rigid conductors or conductors equipped with end sleeves
Insert the cable into the oval opening as far as it will go.
2 Pull on the cable to ensure it is tight.
Table 6- 2 Finely-stranded conductors
1 Insert the screwdriver in the rectangular opening to open
the terminal (oval opening).
2 Insert the cable as far as it will go into the oval opening
and remove the screwdriver.
3 Pull on the cable to ensure it is tight.
