5.11 Mounting the devices with device connectors on a standard mounting rail
SIRIUS 3RM1 motor starter
Manual, 06/2016, A5E0345285095020A/RS-AE/005
99
5.11
Mounting the devices with device connectors on a standard
mounting rail
Requirements
● At the installation location, a horizontal 35 mm mounting rail in accordance with
DIN EN 60715 is properly secured
● Please observe the information about the mounting position in chapter "Mounting position
(Page 63)"
Procedure
Step
Operating instruction

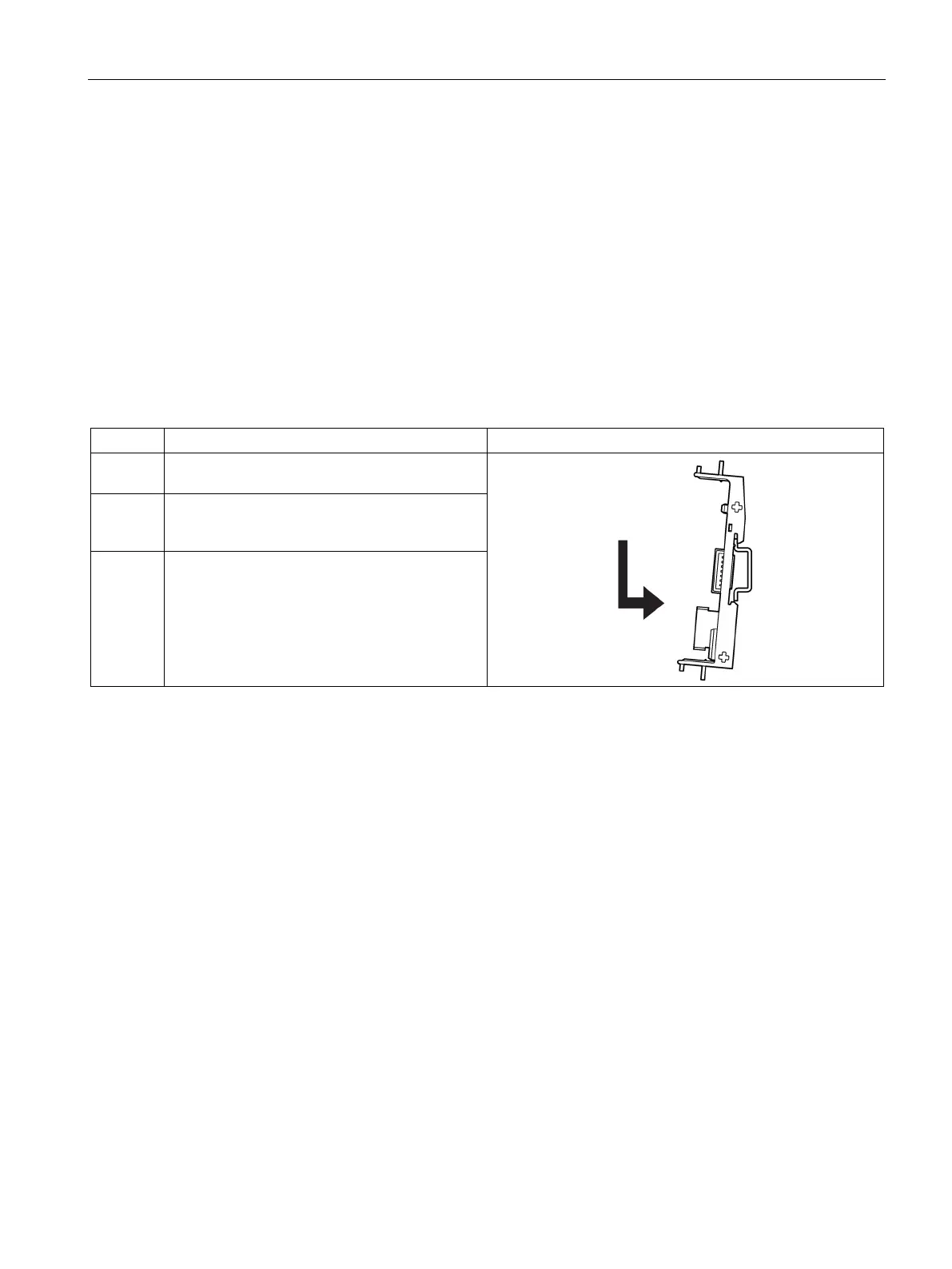

Figure
1 Place the back of the device connector on the
upper edge of the standard mounting rail.
2 Press the lower half of the device connector
against the standard mounting rail until it
engages.
3 Repeat the procedure with all the required
device connectors.
