Mounting
5.6 Disassembling devices from a fuse module
SIRIUS 3RM1 motor starter
92 Manual, 06/2016, A5E0345285095020A/RS-AE/005
5.6
Disassembling devices from a fuse module
DANGER
Hazardous voltage.
Will cause death or serious injury.
Turn off and lock out all power supplying this device before working on this device.
Requirements
The fuse module has been removed from the adapter.
The control circuit terminals have been removed or disconnected.

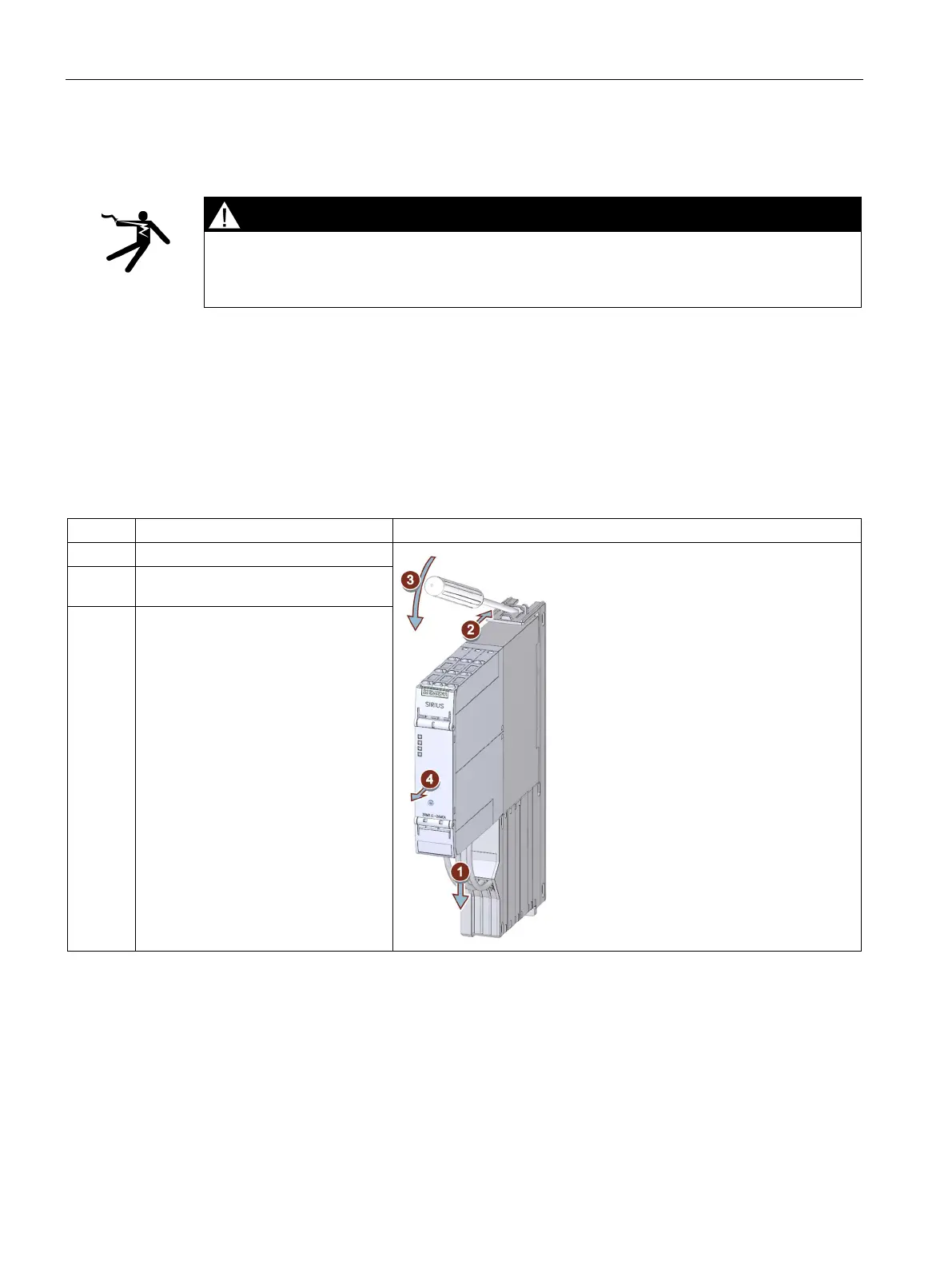

Procedure
Step
Description
Figure
1
Detach the cables marked L1 to L3.
2 to 3 Use a screwdriver to unlatch the motor
starter at the top.
4 Pull the 3RM1 motor starter out of the
fuse module.
