5.2 Mounting the devices on a level surface
SIRIUS 3RM1 motor starter
88 Manual, 06/2016, A5E0345285095020A/RS-AE/005
Mounting the devices on a level surface
Requirements
Please note the following requirements for mounting on a level surface:
● Please observe the information about the mounting position in the chapter "Mounting
position (Page 63)".
● Two properly executed drill holes with thread or plug on the level surface
For details of the distances between the drilled holes, please refer to the relevant
dimension drawings in the chapter "Dimension drawings (Page 149)".
● Two screws to fit the holes M4 x 12 in accordance with DIN 784
● Two plastic securing brackets
Refer to the accessories list for the relevant article number in the chapter "Accessories
and article number scheme (Page 47)".

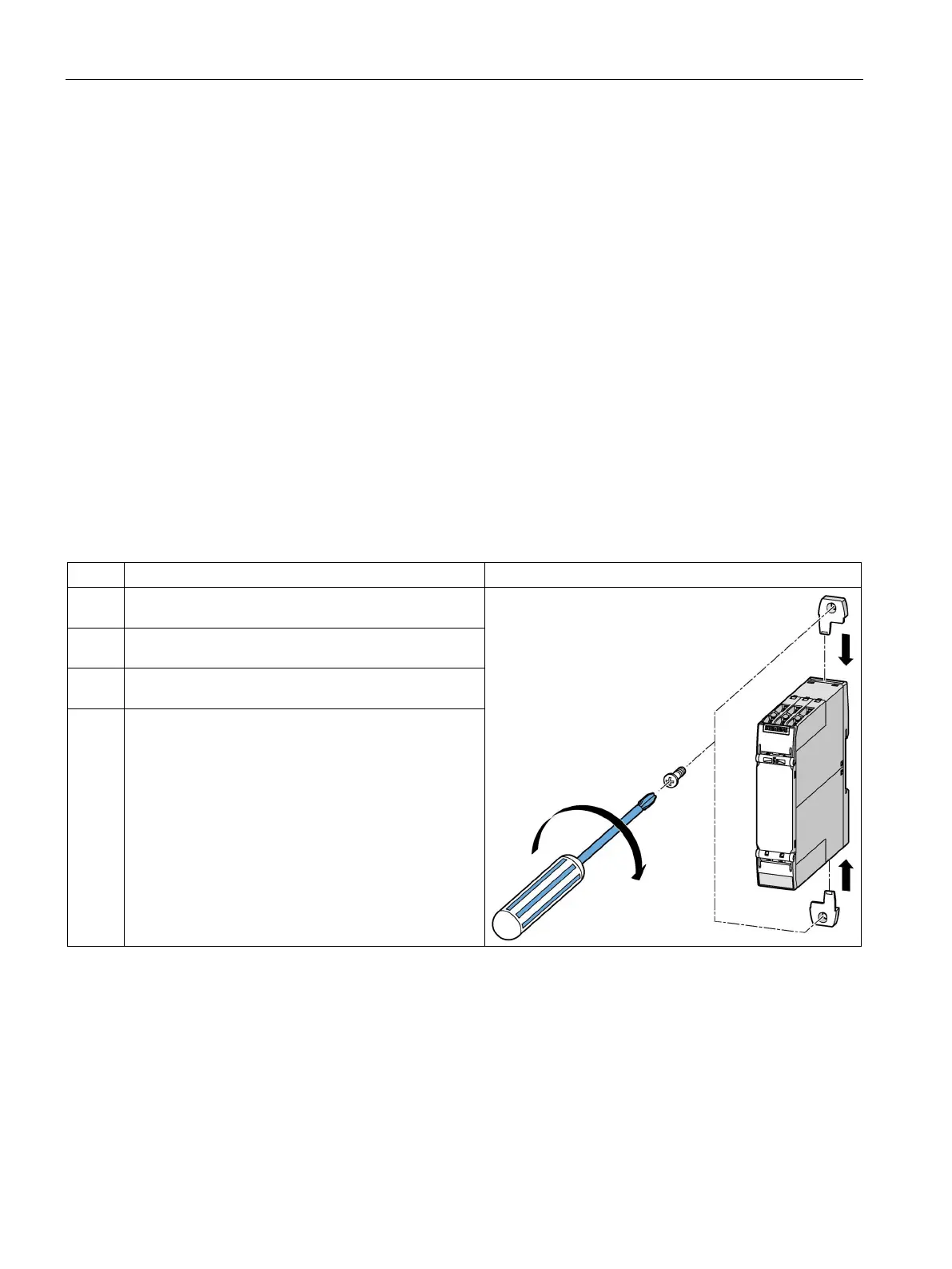

1 Insert the securing brackets into the openings
provided on the device until they engage.
2 Hold the device up to the level surface prepared for
screw fastening.
3 Insert the screws through the oblong holes in the
4 Screw the device onto the level surface so that it is
secure.
Tightening torque: 1 Nm
