3.6 Accessories and article number scheme
SIRIUS 3RM1 motor starter
Manual, 06/2016, A5E0345285095020A/RS-AE/005
47
3.6
Accessories and article number scheme
3.6.1

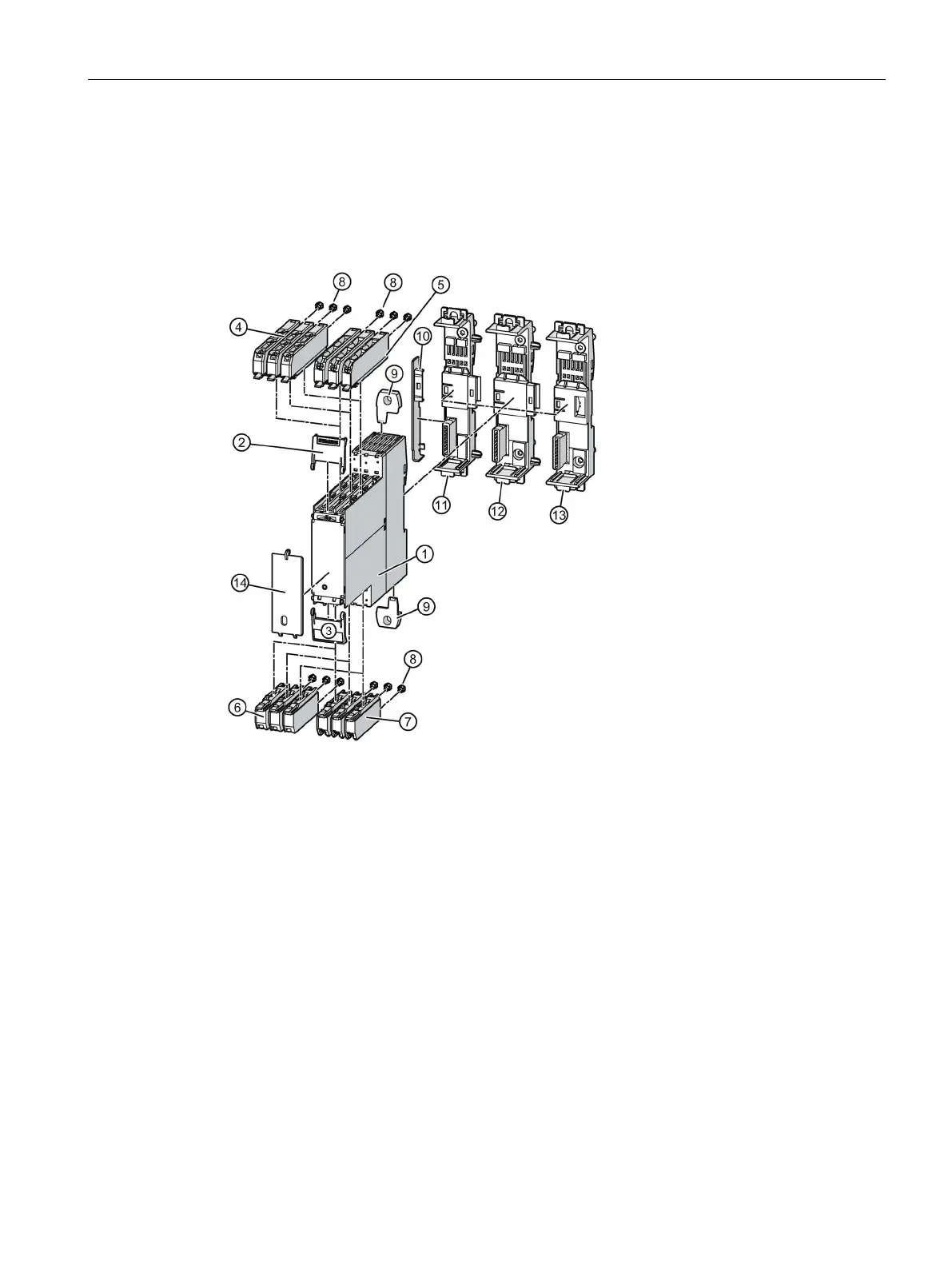

Overview of all device components
①
Basic unit/expansion unit, e.g. 3RM1 motor starter
②
Top cover flap
③
Bottom cover flap
④
Terminals, 3-pole, push-in, 1 x 2.5 mm²
⑤
Terminals, 3-pole, screw-type, 1 x 2.5 mm²
⑥
Terminals, 3-pole, push-in, 1 x 4 mm²
⑦
Terminals, 3-pole, screw-type, 1 x 4 mm²
For connection, there is an infeed system (not shown in the overview diagram) for these
terminals.
⑧
Coding pins
⑨
Push-in lugs for wall mounting
⑩
Cover
⑪
Device connector
⑫
Device connector
⑬
Device termination connector
⑭
Sealable cover
