Siemens SIRIUS 3RM1 - Modifying the Fuse Module to a 1-Pole Connection

Mounting
5.9 Modifying the fuse module to a 1-pole connection
SIRIUS 3RM1 motor starter
96 Manual, 06/2016, A5E0345285095020A/RS-AE/005
5.9
Modifying the fuse module to a 1-pole connection
Requirements
● The fuse module has been detached from the busbar system.
● The fuse compartment is open and the fuses removed from the compartment.
"Replacing the fuses in the 3RM19 fuse module (Page 137)"
Procedure
Note
Modify the fuse module before you install it.
Step
Description
Figure

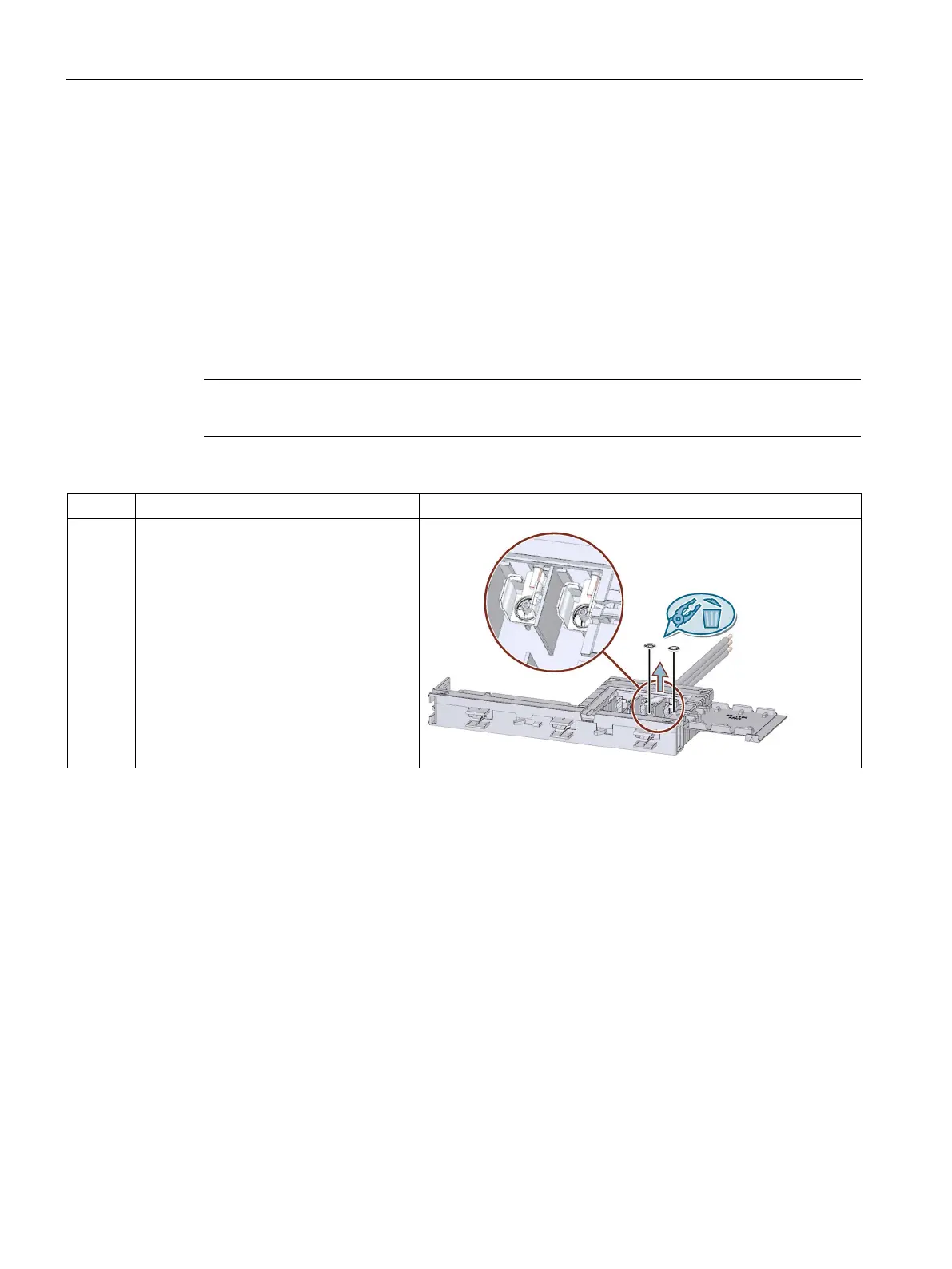

1 Use a pair of pliers to remove the snap
rings at phases L2 and L3.
• Bottom
• Top
